048A11T2020 – Marathon 0.17 HP 2 speed Condenser Fans HVAC/R Motor, 1 phase, 1200/1200 RPM, 208-230 V, 48Y Frame, TEAO – X429

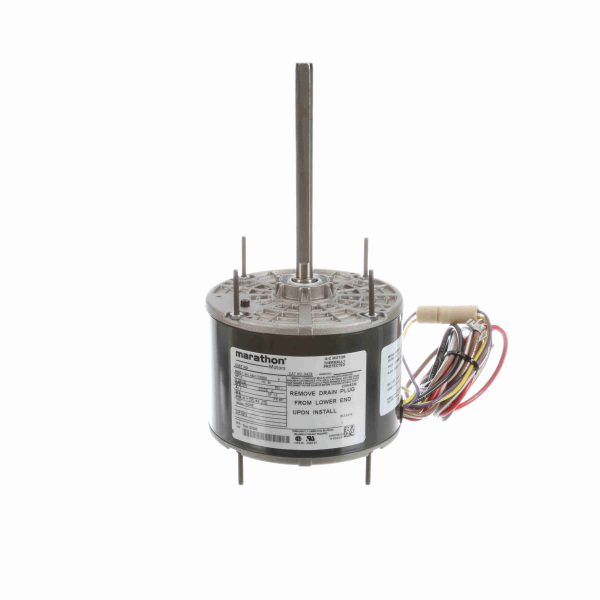

048A11T2020 Marathon Condenser Fans Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856037824 |
Weight: |
11 LB |
| Packaged Length: |
13.25 IN |
Packaged Width: |
7 IN |
| Packaged Height: |
6.94 IN |
Nameplate Specifications
| Output HP: |
0.17 Hp |
Output KW: |
0.13 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230 V |
| Current: |
1.3 A |
Speed: |
1075 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
62.4 % |
Power Factor: |
83 |
| Duty: |
Continous |
Insulation Class: |
B |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
C |
| Frame: |
48Y |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic Lock Rotor Only |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Round – Extended Studs |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
10.50 in |
| Frame Length: |
3.50 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
6.06 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
2.64 |
0.0 |
4.80 |
0.0 |
0 |
0.49 |
0.0 |
0.17 |
| Break-Down |
1.84 |
0.0 |
19.80 |
0.0 |
936 |
0.38 |
0.0 |
0.17 |
| Pull-Up |
2.60 |
0.0 |
4.45 |
0.0 |
30 |
0.49 |
0.0 |
0.17 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
| Current (Amps) |
0.78 |
0.79 |
0.83 |
0.91 |
1.04 |
1.27 |
| Rated Output (KW) |
0.08 |
0.10 |
0.13 |
0.16 |
0.20 |
0.26 |
| Efficiency (%) |
0.0 |
30.0 |
48.0 |
57.5 |
62.0 |
61.0 |
| Power Factor (%) |
16.0 |
57.0 |
68.0 |
77.5 |
83.7 |
87.7 |
| Speed (RPM) |
1,200 |
1,181 |
1,166 |
1,147 |
1,123 |
1,082 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
80.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
3.10 |
6.10 |
9.25 |
12.60 |
16.30 |
