048A17T72 – Marathon 0.17 HP Direct Drive Blower and Unit Heater HVAC/R Motor, 1 phase, 1800 RPM, 115 V, 48Z Frame, TEAO – X301

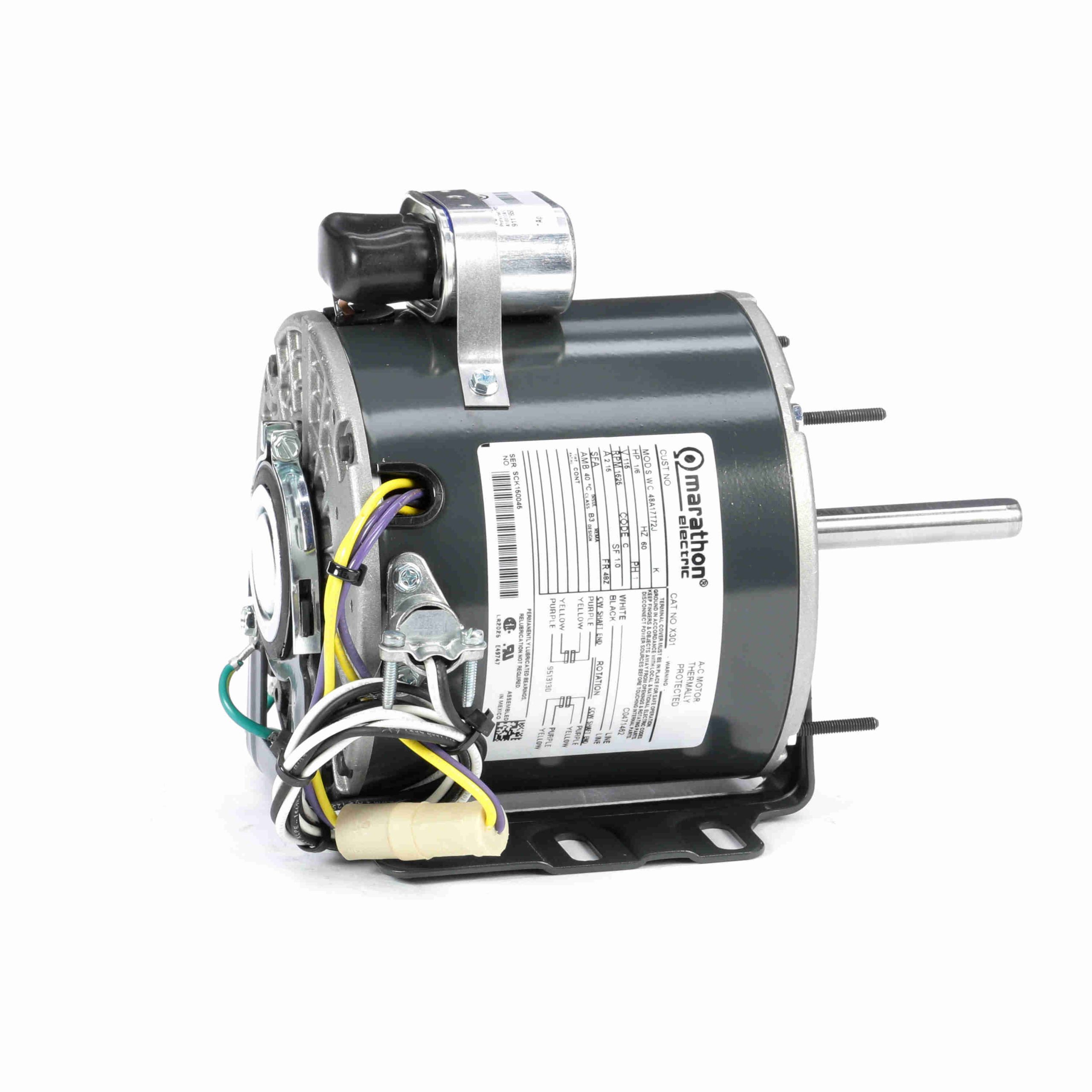

048A17T72 Marathon Direct Drive Blower & Unit Heater Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856041807 |
Weight: |
13 LB |
| Packaged Length: |
12.44 IN |
Packaged Width: |
9.13 IN |
| Packaged Height: |
8.06 IN |
Nameplate Specifications
| Output HP: |
0.17 Hp |
Output KW: |
0.13 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
2.2 A |
Speed: |
1625 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
55 % |
Power Factor: |
89.4 |
| Duty: |
Continous |
Insulation Class: |
B |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
C |
| Frame: |
48Z |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic Lock Rotor Only |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Resilient Base – Extended Studs |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
9.00 in |
| Frame Length: |
4.75 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
2.81 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
5.47 |
|
3.60 |
|
5 |
0.54 |
|
0.17 |
| Locked-Rotor |
5.46 |
|
4.10 |
|
0 |
0.54 |
|
0.17 |
| Break-Down |
3.81 |
|
12.50 |
|
1,280 |
0.40 |
|
0.17 |
Load Characteristics
| % of Rated Load |
0 % |
100 % |
| Current (Amps) |
1.02 |
2.16 |
| Rated Output (KW) |
0.08 |
0.23 |
| Efficiency (%) |
|
|
| Power Factor (%) |
|
|
| Speed (RPM) |
1,800 |
1,615 |
| Temp. Rise @ FL |
|
|
| Torque (ft-lbs) |
0.00 |
8.70 |
