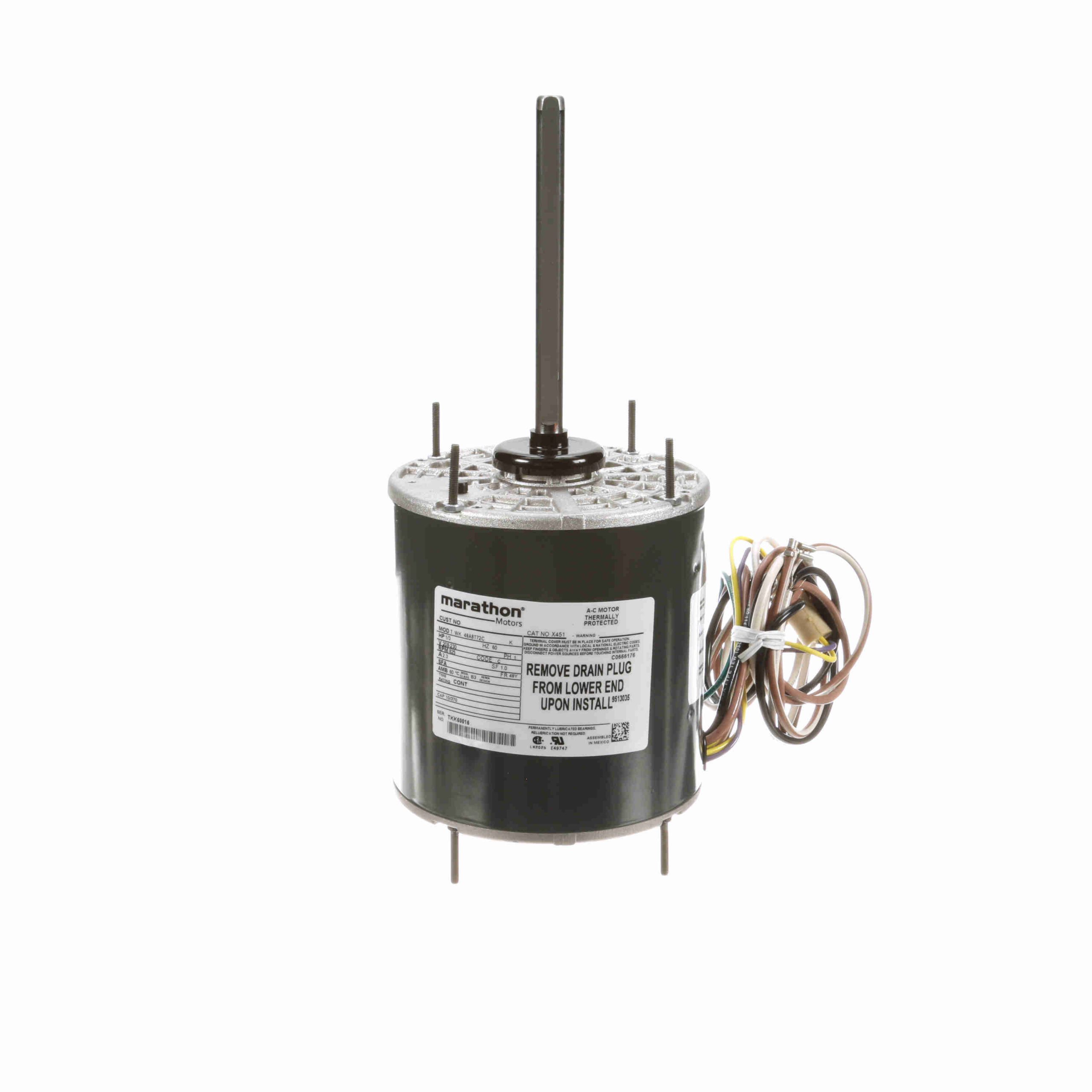

048A8T72 – Marathon 0.33 HP Condenser Fans HVAC/R Motor, 1 phase, 900 RPM, 208-230 V, 48Y Frame, TEAO – X451
048A8T72 Marathon Condenser Fans Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856037879 |
Weight: |
19 LB |
| Packaged Length: |
16.06 IN |
Packaged Width: |
6.75 IN |
| Packaged Height: |
6.62 IN |
Nameplate Specifications
| Output HP: |
0.33 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230 V |
| Current: |
2.3 A |
Speed: |
825 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
61.4 % |
Power Factor: |
87.6 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
C |
| Frame: |
48Y |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic Lock Rotor Only |
Ambient Temperature: |
60 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
8 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Round – Extended Studs |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
12.25 in |
| Frame Length: |
5.25 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
6.06 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
3.62 |
0.0 |
55.50 |
0.0 |
761 |
0.72 |
86.3 |
0.33 |
| Full Load |
2.00 |
0.0 |
32.90 |
0.0 |
854 |
0.41 |
87.6 |
0.33 |
| Pull-Up |
5.27 |
0.0 |
13.50 |
0.0 |
31 |
0.85 |
69.9 |
0.33 |
| Locked-Rotor |
5.28 |
0.0 |
14.17 |
0.0 |
0 |
0.86 |
70.4 |
0.33 |
