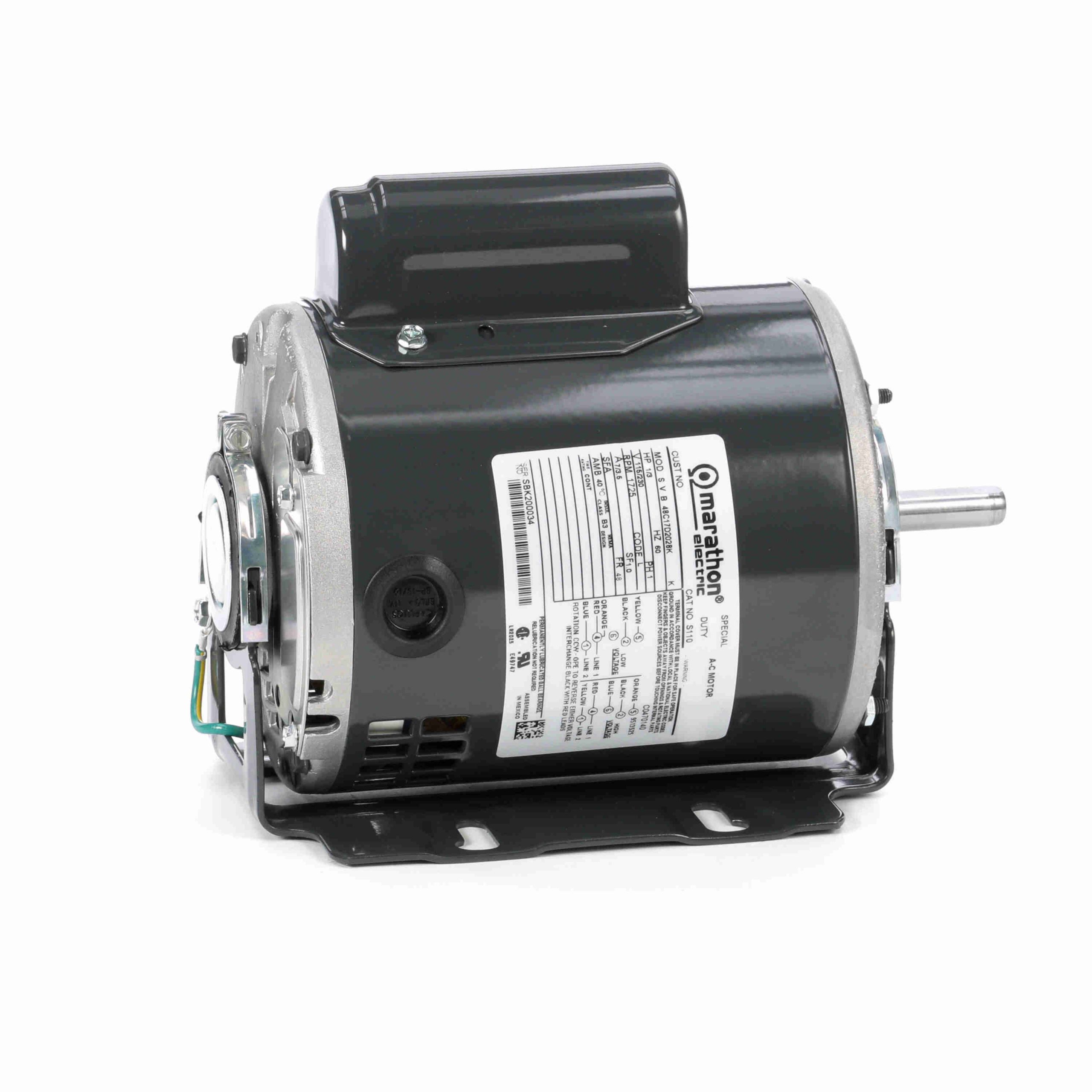

048C17D2028 – Marathon 0.33 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 48 Frame, ODP – S110
048C17D2028 Marathon Single Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856007810 |
Weight: |
16 LB |
| Packaged Length: |
12.44 IN |
Packaged Width: |
9.13 IN |
| Packaged Height: |
8.06 IN |
Nameplate Specifications
| Output HP: |
0.33 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
7.0/3.5 A |
Speed: |
1725 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
59.5 % |
Power Factor: |
58.5 |
| Duty: |
Continous |
Insulation Class: |
B |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
L |
| Frame: |
48 |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Mounting: |
Resilient Base |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Ball |
Opp Drive End Bearing: |
Ball |
| Frame Material: |
Rolled Steel |
Shaft Type: |
NEMA 48 |
| Overall Length: |
9.31 in |
Frame Length: |
3.75 in |
| Shaft Diameter: |
0.500 in |
Shaft Extension: |
1.56 in |
| Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
7.30 |
228.0 |
43.50 |
267.0 |
1,529 |
1.30 |
0.0 |
0.33 |
| Full Load |
3.20 |
100.0 |
16.30 |
100.0 |
1,741 |
0.44 |
0.0 |
0.33 |
| Locked-Rotor |
13.10 |
409.0 |
44.00 |
270.0 |
0 |
2.80 |
0.0 |
0.33 |
| Pull-Up |
7.60 |
238.0 |
39.00 |
239.0 |
1,429 |
1.30 |
0.0 |
0.33 |
Load Characteristics
| % of Rated Load |
0 % |
50 % |
75 % |
100 % |
125 % |
150 % |
175 % |
200 % |
| Current (Amps) |
2.97 |
2.86 |
2.98 |
3.20 |
3.46 |
3.76 |
4.16 |
4.62 |
| Rated Output (KW) |
0.15 |
0.29 |
0.36 |
0.44 |
0.53 |
0.62 |
0.71 |
0.82 |
| Efficiency (%) |
0.0 |
43.7 |
52.2 |
57.0 |
58.6 |
60.2 |
60.0 |
58.4 |
| Power Factor (%) |
21.8 |
44.4 |
53.1 |
60.3 |
66.9 |
71.2 |
74.4 |
77.5 |
| Speed (RPM) |
1,800 |
1,767 |
1,755 |
1,741 |
1,721 |
1,706 |
1,689 |
1,663 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
45.0 |
55.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
8.14 |
12.20 |
16.30 |
20.40 |
24.50 |
28.50 |
32.60 |
