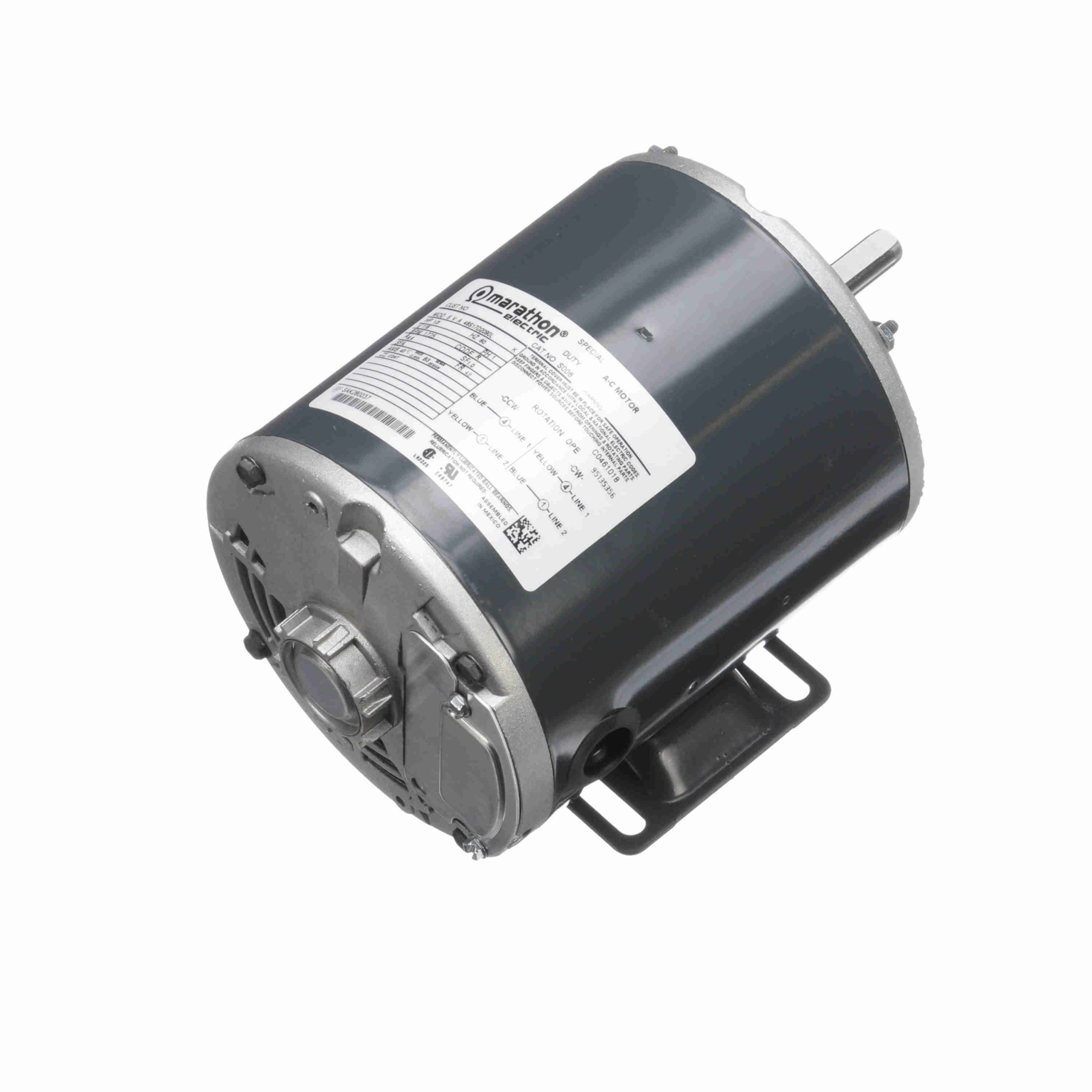

048S17D2090 – Marathon 0.33 HP General Purpose Motor, 1 phase, 1800 RPM, 115 V, 48 Frame, ODP – S006
048S17D2090 Marathon Single Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856007124 |
Weight: |
14 LB |
| Packaged Length: |
11.06 IN |
Packaged Width: |
6.75 IN |
| Packaged Height: |
6.62 IN |
Nameplate Specifications
| Output HP: |
0.33 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
6.6 A |
Speed: |
1725 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
57.5 % |
Power Factor: |
59.4 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
R |
| Frame: |
48 |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Split Phase |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 48 |
Overall Length: |
9.34 in |
| Frame Length: |
5.75 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
1.59 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
7.00 |
|
41.70 |
|
1,443 |
1.40 |
|
0.33 |
| Pull-Up |
19.90 |
|
27.50 |
|
136 |
4.00 |
|
0.33 |
| Locked-Rotor |
19.90 |
|
29.00 |
|
0 |
4.00 |
|
0.33 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
175 % |
200 % |
| Current (Amps) |
5.88 |
5.82 |
5.92 |
6.12 |
6.46 |
6.72 |
6.94 |
7.60 |
8.52 |
10.06 |
| Rated Output (KW) |
0.15 |
0.22 |
0.28 |
0.36 |
0.25 |
0.49 |
0.52 |
0.62 |
0.74 |
0.92 |
| Efficiency (%) |
0.0 |
0.0 |
0.0 |
0.0 |
57.5 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Power Factor (%) |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Speed (RPM) |
1,800 |
1,779 |
1,765 |
1,749 |
1,731 |
1,719 |
1,711 |
1,685 |
1,651 |
1,591 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
3.99 |
8.00 |
12.10 |
16.20 |
18.80 |
20.50 |
25.00 |
29.70 |
35.20 |
