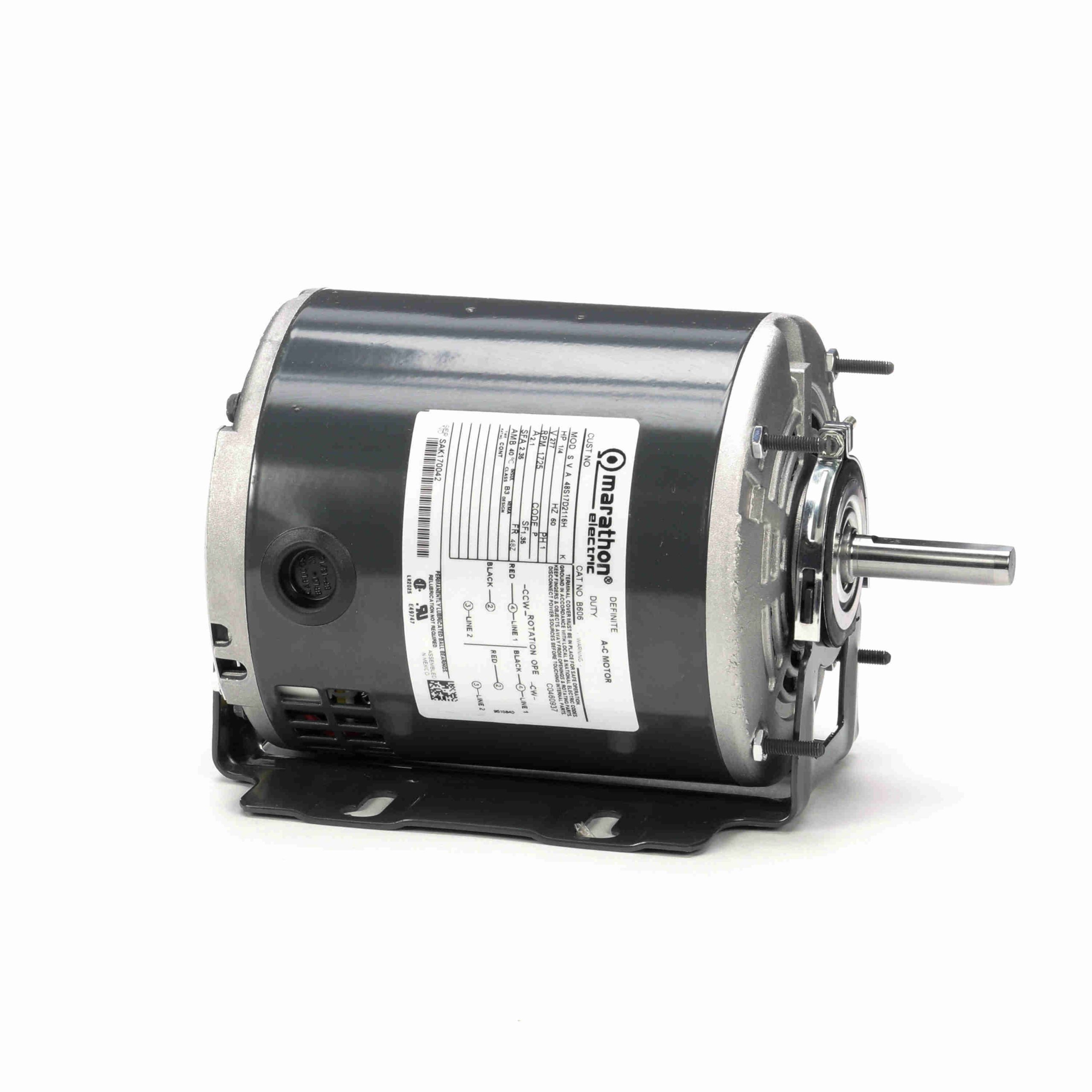

048S17D2116 – Marathon 0.25 HP Fan and Blower HVAC/R Motor, 1 phase, 1800 RPM, 277 V, 48Z Frame, ODP – B606
048S17D2116 Marathon Self Cooled Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856039378 |
Weight: |
13 LB |
| Packaged Length: |
11.06 IN |
Packaged Width: |
6.75 IN |
| Packaged Height: |
6.62 IN |
Nameplate Specifications
| Output HP: |
0.25 Hp |
Output KW: |
0.19 kW |
| Frequency: |
60 Hz |
Voltage: |
277 V |
| Current: |
2.1 A |
Speed: |
1725 rpm |
| Service Factor: |
1.35 |
Phase: |
1 |
| Efficiency: |
59.5 % |
Power Factor: |
53.5 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
P |
| Frame: |
48Z |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Split Phase |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Resilient Base – Extended Studs |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
9.47 in |
| Frame Length: |
5.50 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
1.97 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
13.20 |
|
17.30 |
|
0 |
2.60 |
|
0.25 |
| Pull-Up |
13.00 |
|
16.70 |
|
164 |
2.50 |
|
0.25 |
| Break-Down |
5.00 |
|
27.50 |
|
1,507 |
0.90 |
|
0.25 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
135 % |
150 % |
175 % |
200 % |
| Current (Amps) |
1.60 |
1.59 |
1.66 |
1.79 |
2.08 |
2.13 |
2.20 |
2.32 |
2.45 |
2.70 |
3.57 |
| Rated Output (KW) |
0.11 |
0.15 |
0.20 |
0.25 |
0.31 |
0.38 |
0.38 |
0.41 |
0.46 |
0.57 |
0.77 |
| Efficiency (%) |
0.0 |
32.7 |
48.3 |
56.7 |
59.5 |
60.0 |
61.6 |
61.5 |
61.2 |
57.9 |
48.9 |
| Power Factor (%) |
24.8 |
32.8 |
42.4 |
50.6 |
53.5 |
61.5 |
62.3 |
63.7 |
67.8 |
75.6 |
77.4 |
| Speed (RPM) |
1,800 |
1,782 |
1,770 |
1,756 |
1,740 |
1,730 |
1,722 |
1,712 |
1,696 |
1,661 |
1,577 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
40.0 |
45.0 |
0.0 |
57.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
3.00 |
6.00 |
9.10 |
12.10 |
13.50 |
15.30 |
16.60 |
18.70 |
22.20 |
26.70 |
