Description

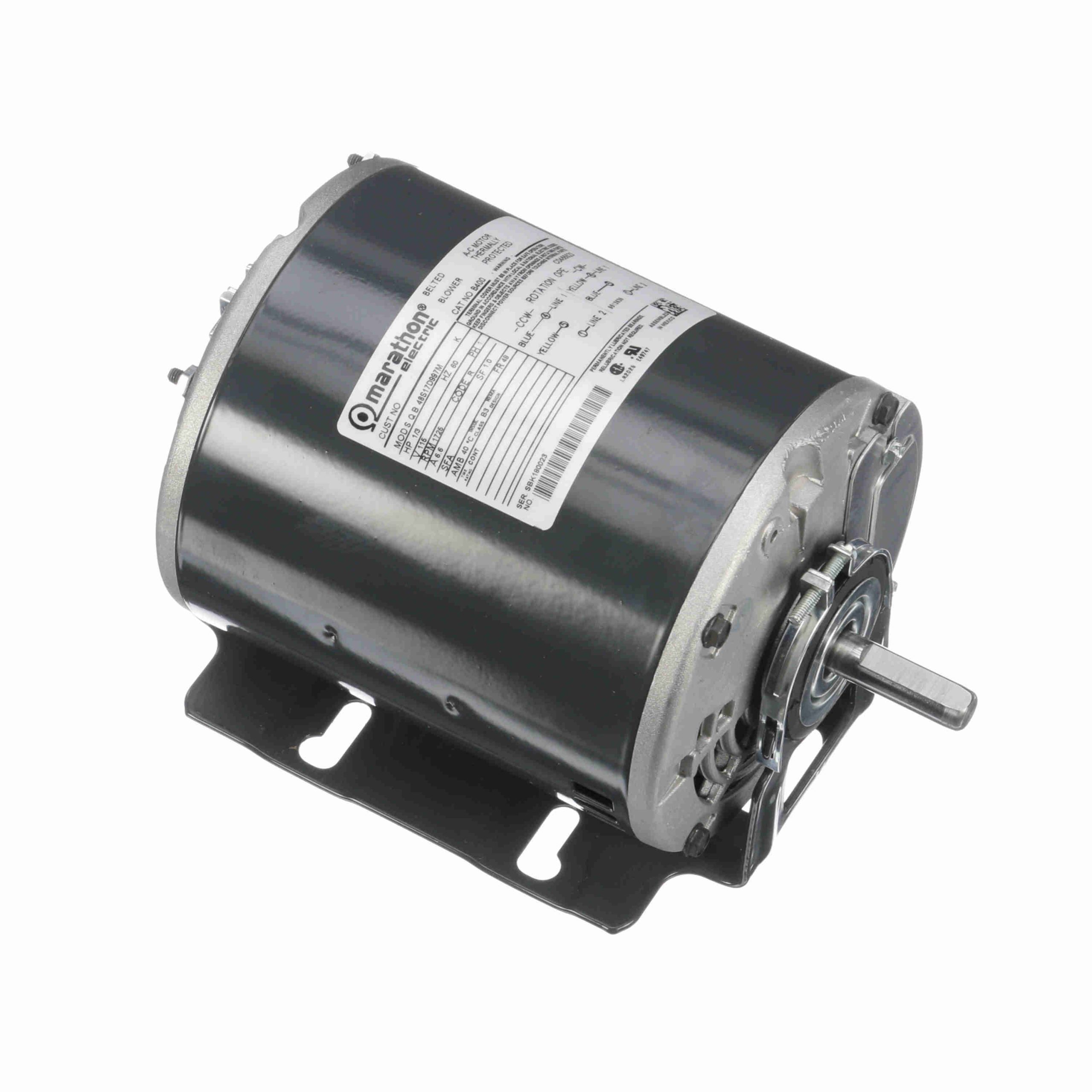

048S17D997 – Marathon 0.33 HP Single Phase HVAC/R Motor, 1 phase, 1800 RPM, 115 V, 48 Frame, DPAO – B400
048S17D997 Marathon HVAC/R Single Phase Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856037350 |
Weight: |
14 LB |
| Packaged Length: |
11.06 IN |
Packaged Width: |
6.75 IN |
| Packaged Height: |
6.62 IN |
Nameplate Specifications
| Output HP: |
0.33 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
6.6 A |
Speed: |
1725 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
61.5 % |
Power Factor: |
58.6 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
No Design Code |
KVA Code: |
R |
| Frame: |
48 |
Enclosure: |
Drip Proof Air Over |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Split Phase |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Resilient Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 48 |
Overall Length: |
9.34 in |
| Frame Length: |
5.75 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
1.59 in |
Assembly/Box Mounting: |
F1 Only |
