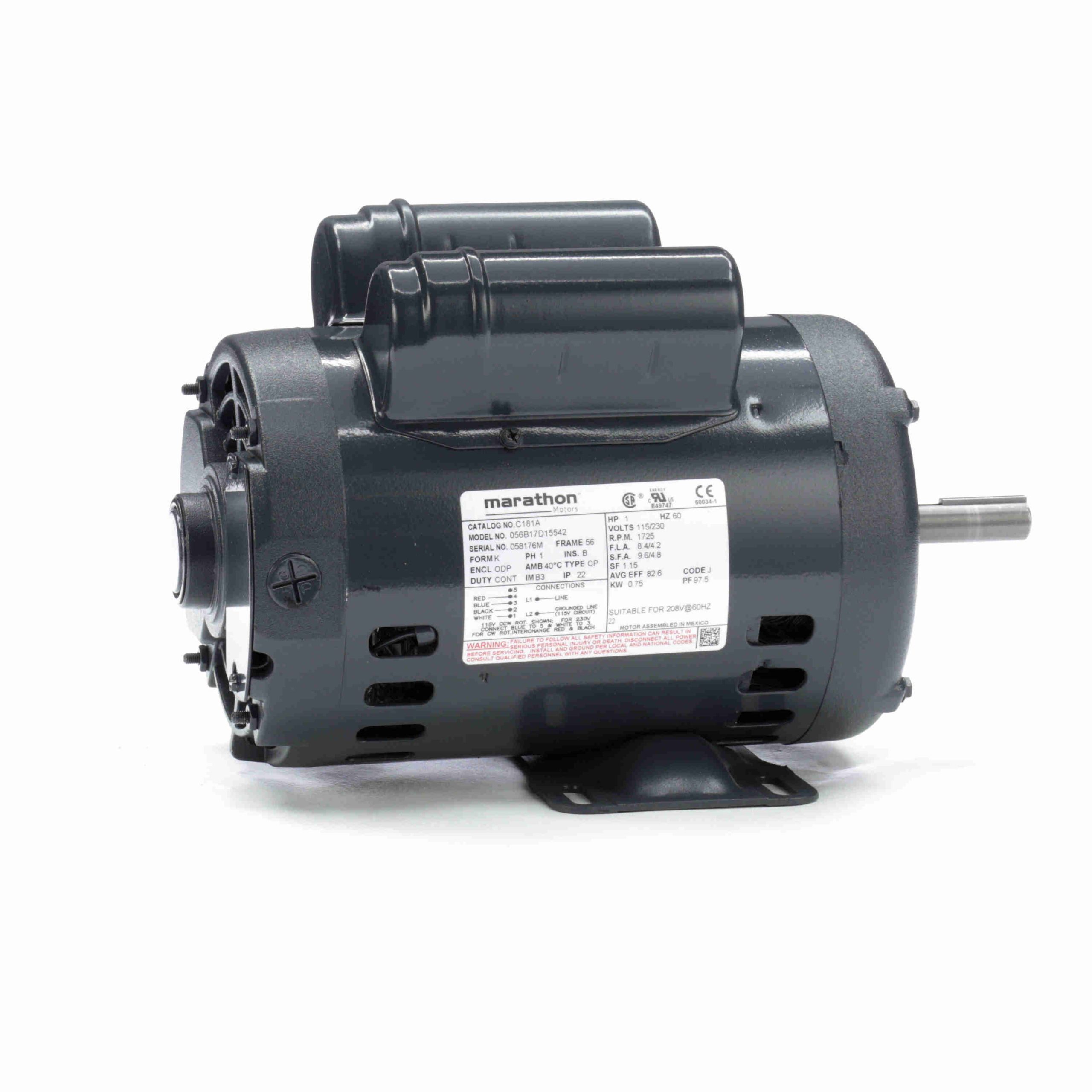

056B17D15542 – Marathon 1 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, ODP – C181A
056B17D15542 Marathon Single Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856081728 |
Weight: |
42 LB |
| Packaged Length: |
15.44 IN |
Packaged Width: |
10.19 IN |
| Packaged Height: |
9.5 IN |
Nameplate Specifications
| Output HP: |
1 Hp |
Output KW: |
0.75 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
8.4/4.2 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
82.6 % |
Power Factor: |
97.5 |
| Duty: |
Continous |
Insulation Class: |
B |
| Design Code: |
N |
KVA Code: |
J |
| Frame: |
56 |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
1.9 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
13.12 in |
| Frame Length: |
8.25 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
30.60 |
0.0 |
152.00 |
0.0 |
0 |
0.00 |
0.0 |
0.75 |
| Break-Down |
0.00 |
0.0 |
132.30 |
0.0 |
1,555 |
0.00 |
0.0 |
0.75 |
| Pull-Up |
0.00 |
0.0 |
152.00 |
0.0 |
0 |
0.00 |
0.0 |
0.75 |
