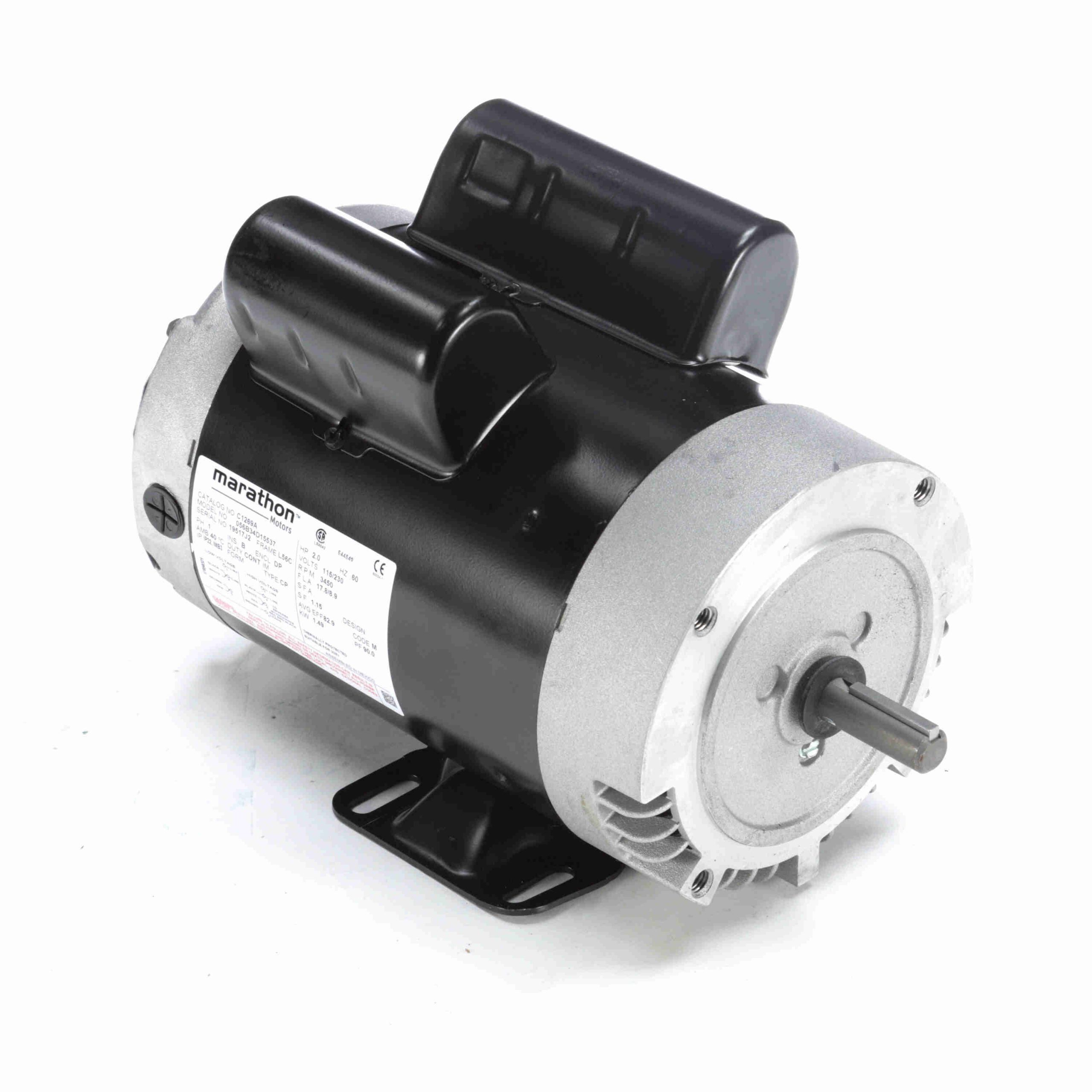

056B34D15538 – Marathon 3 HP General Purpose Motor, 1 phase, 3600 RPM, 230 V, 56H Frame, ODP – C1270A
056B34D15538 Marathon Single Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856081889 |
Weight: |
45 LB |
| Packaged Length: |
13 IN |
Packaged Width: |
9 IN |
| Packaged Height: |
10 IN |
Nameplate Specifications
| Output HP: |
3 Hp |
Output KW: |
2.2 kW |
| Frequency: |
60 Hz |
Voltage: |
230 V |
| Current: |
12.4 A |
Speed: |
3450 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
84 % |
Power Factor: |
98.6 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
L |
KVA Code: |
H |
| Frame: |
56H |
Enclosure: |
Drip Proof |
| Thermal Protection: |
Manual |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
13.75 in |
| Shaft Diameter: |
0.625 in |
Shaft Extension: |
2.06 in |
| Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
78.40 |
|
19.80 |
|
3,143 |
16.10 |
|
5.00 |
| Locked-Rotor |
135.00 |
0.0 |
13.80 |
0.0 |
0 |
25.90 |
0.0 |
5.00 |
| Pull-Up |
135.00 |
0.0 |
13.60 |
0.0 |
200 |
26.00 |
0.0 |
5.00 |
