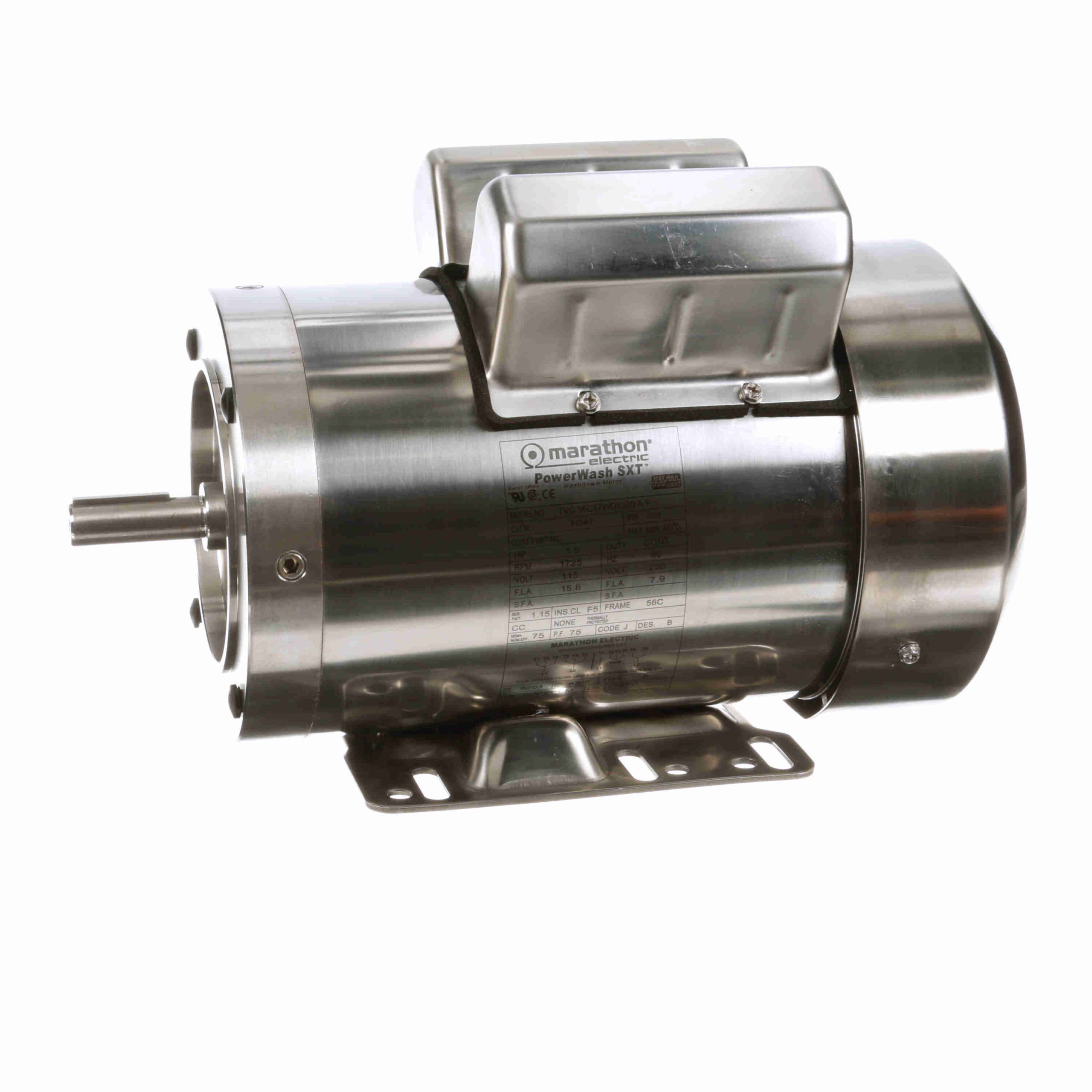

056C17WD5330 – Marathon 1.50 HP Washdown Motor, 1 phase, 1800 RPM, 115/230 V, 56C Frame, TEFC – N347

056C17WD5330 – Marathon 1.50 HP Washdown Motor, 1 phase, 1800 RPM, 115/230 V, 56C Frame, TEFC – N347

056C17WD5330 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Encapsulated electronic starting switch is impervious to moisture
  • Capacitor start induction run design for high starting torque, except as noted
  • 1.15 Service Factor on sinewave, Double sealed ball bearings
  • 303 stainless steel shaft with spring loaded contact seals in each end
  • 300 Series Stainless steel external construction: frame, endshields, conduit box, fan guard, mounting base and hardware for superior corrosion resistance
  • Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator
  • 100% Paint-free construction
  • One way condensation drains in each endshield and conduit box for all angle mounting
  • Nitrile Buna – N gaskets and seals on conduit box, through bolts and endshields
  • Nameplate information laser etched on frame

Marathon Motors
Regal Beloit

Description

056C17WD5330 – Marathon 1.50 HP Washdown Motor, 1 phase, 1800 RPM, 115/230 V, 56C Frame, TEFC – N347

056C17WD5330 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856131621 Weight: 47 LB
Packaged Length: 15.35 IN Packaged Width: 10 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 15.8/7.9 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 75 % Power Factor: 75
Duty: Continuous Insulation Class: F
Design Code: N KVA Code: K
Frame: 56C Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 1.07 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: T Overall Length: 13.20 in
Frame Length: 6.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 58.40 734.0 15.00 333.0 0 10.63 0.0 1.50
Full Load 7.96 100.0 4.50 100.0 1,742 1.41 0.0 1.50
Pull-Up 0.00 0.0 11.67 259.0 1,250 0.00 0.0 1.50
Break-Down 28.70 361.0 12.70 282.0 1,245 6.67 0.0 1.50
No Load 5.10 64.0 0.00 0.0 1,796 0.21 0.0 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 100 % 125 % 150 %
Current (Amps) 5.10 5.29 5.93 7.96 9.29 10.75
Rated Output (KW) 0.21 0.49 0.79 1.41 1.74 2.09
Efficiency (%) 0.0 58.6 71.6 79.2 80.5 79.7
Power Factor (%) 17.8 40.3 58.1 76.7 81.2 84.3
Speed (RPM) 1,796 1,788 1,777 1,742 1,747 1,734
Temp. Rise @ FL 0.0 0.0 0.0 97.0 0.0 0.0
Torque (ft-lbs) 0.00 1.13 2.25 4.50 5.63 6.75
