Description

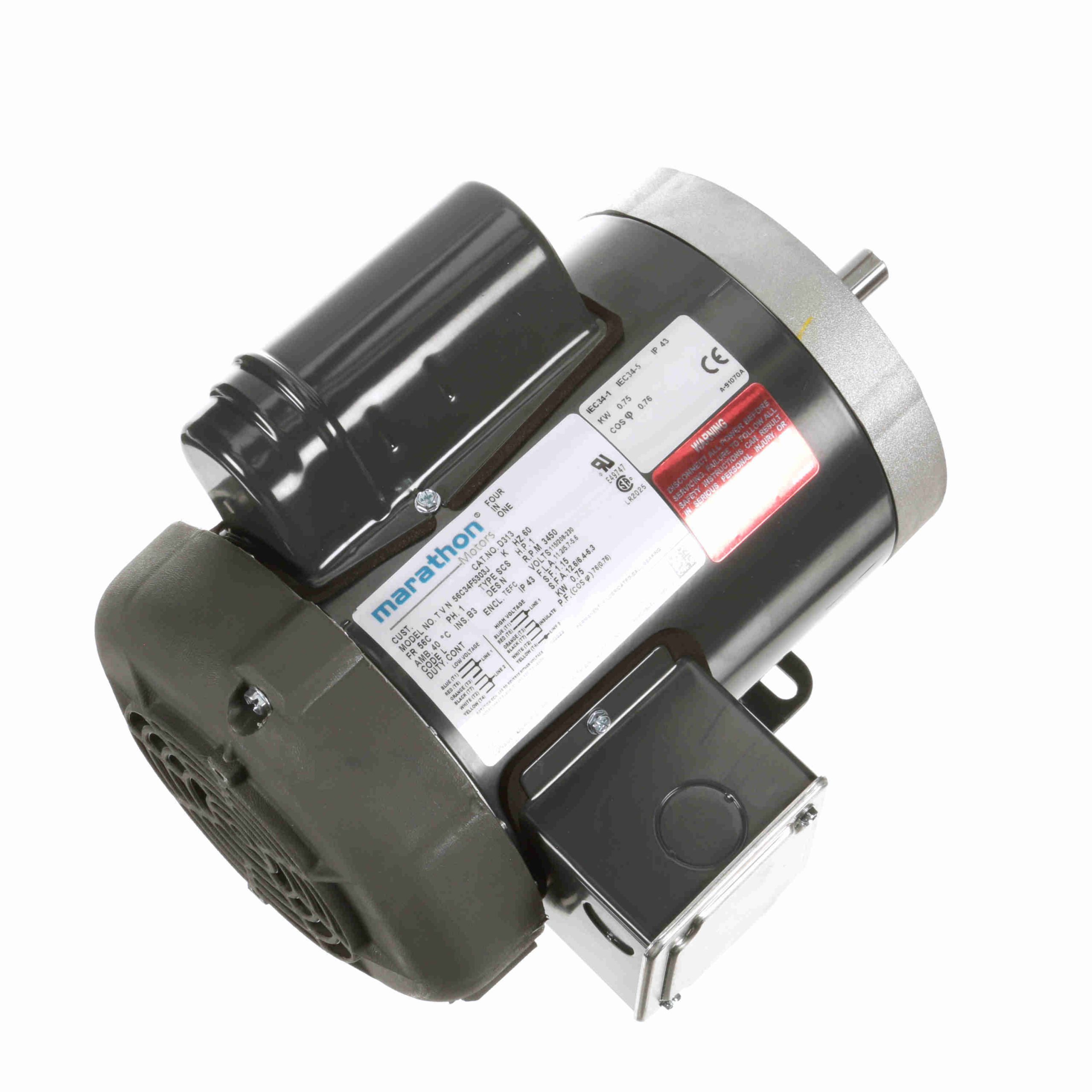

056C34F5303 – Marathon 1 HP General Purpose Motor, 1 phase, 3600 RPM, 115/208-230 V, 56C Frame, TEFC – D313
056C34F5303 Marathon Single Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856009418 |
Weight: |
31 LB |
| Packaged Length: |
16.12 IN |
Packaged Width: |
10.25 IN |
| Packaged Height: |
9.12 IN |
Nameplate Specifications
| Output HP: |
1 Hp |
Output KW: |
0.75 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
11.2/5.7-5.6 A |
Speed: |
3450 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
78.5 % |
Power Factor: |
76 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
N |
KVA Code: |
L |
| Frame: |
56C |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Bolt-on Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
12.31 in |
| Frame Length: |
7.06 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
2.06 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
24.60 |
|
59.50 |
|
2,814 |
4.30 |
|
1.00 |
| Break-Down |
20.40 |
|
67.50 |
|
3,100 |
3.80 |
|
1.00 |
| Locked-Rotor |
40.90 |
|
79.20 |
|
0 |
8.30 |
|
1.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
175 % |
200 % |
| Current (Amps) |
3.10 |
3.30 |
3.90 |
4.60 |
5.60 |
6.30 |
6.60 |
7.80 |
9.20 |
11.20 |
| Rated Output (KW) |
0.15 |
0.30 |
0.53 |
0.74 |
0.98 |
1.05 |
1.21 |
1.50 |
1.82 |
2.22 |
| Efficiency (%) |
0.0 |
64.0 |
73.6 |
77.1 |
78.5 |
78.0 |
77.6 |
75.0 |
72.4 |
67.5 |
| Power Factor (%) |
18.2 |
38.0 |
57.8 |
69.0 |
76.0 |
78.5 |
80.5 |
83.5 |
85.5 |
86.5 |
| Speed (RPM) |
3,600 |
3,580 |
3,565 |
3,545 |
3,520 |
3,510 |
3,500 |
3,475 |
3,440 |
3,385 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
50.0 |
60.0 |
66.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
5.92 |
11.80 |
17.90 |
23.80 |
27.40 |
29.90 |
36.20 |
48.90 |
49.60 |
