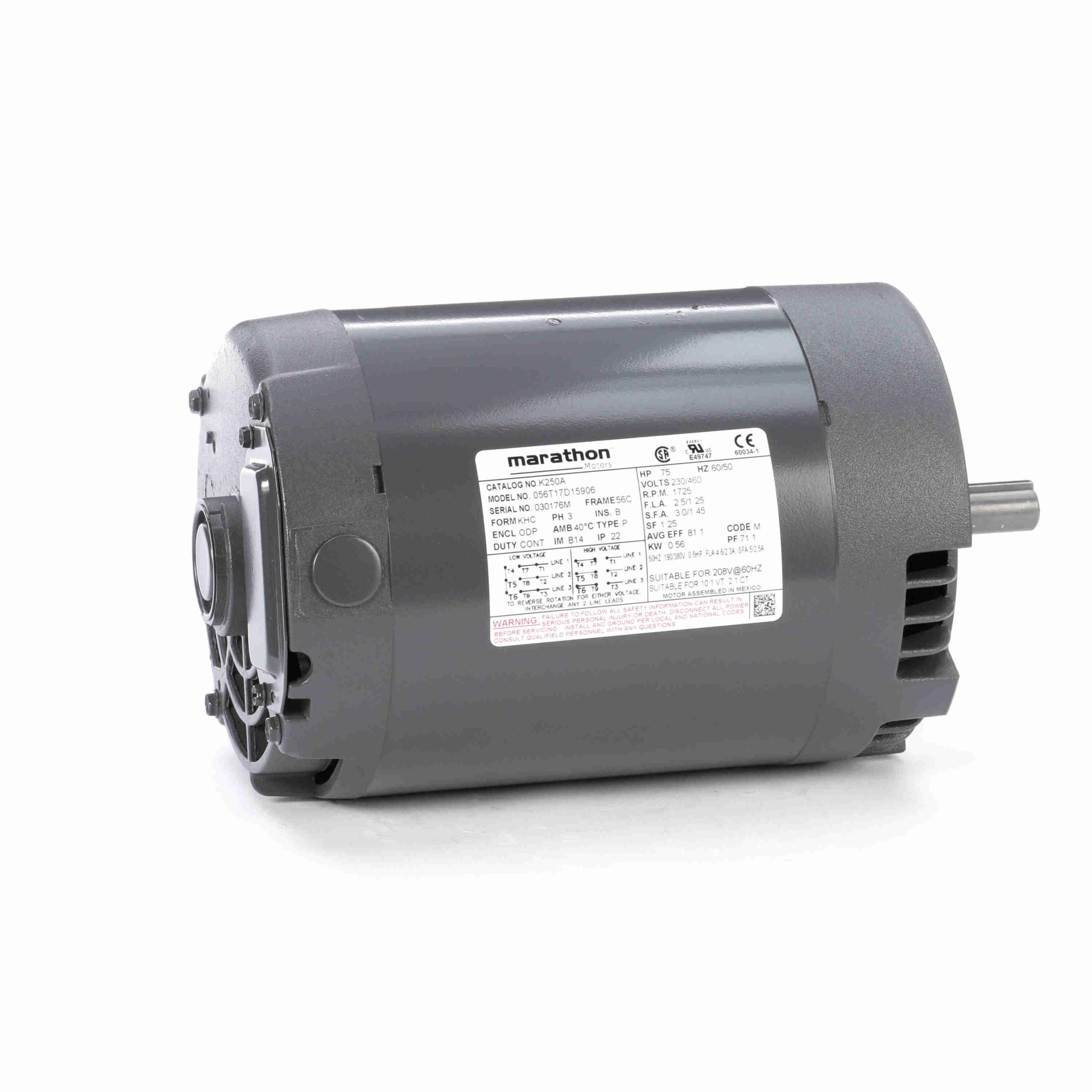

056T17D15906 – Marathon 0.75 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56C Frame, ODP – K250A
056T17D15906 Marathon Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| Weight: |
30 LB |
Packaged Length: |
15.44 IN |
| Packaged Width: |
10.19 IN |
Packaged Height: |
9.5 IN |
Nameplate Specifications
| Output HP: |
0.75 Hp |
Output KW: |
0.56 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
2.6/1.3 A |
Speed: |
1725 rpm |
| Service Factor: |
1.25 |
Phase: |
3 |
| Efficiency: |
81.1 % |
Power Factor: |
71.1 |
| Duty: |
Continous |
Insulation Class: |
B |
| Design Code: |
B |
KVA Code: |
K |
| Frame: |
56C |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
23 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
11.5 in |
| Frame Length: |
8.25 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 Out ODE Brkt Radial |
Load Characteristics
| % of Rated Load |
0 % |
| Current (Amps) |
0.44 |
| Rated Output (KW) |
0.15 |
| Efficiency (%) |
0.0 |
| Power Factor (%) |
19.0 |
| Speed (RPM) |
1,800 |
| Temp. Rise @ FL |
0.0 |
| Torque (ft-lbs) |
0.00 |
