Description

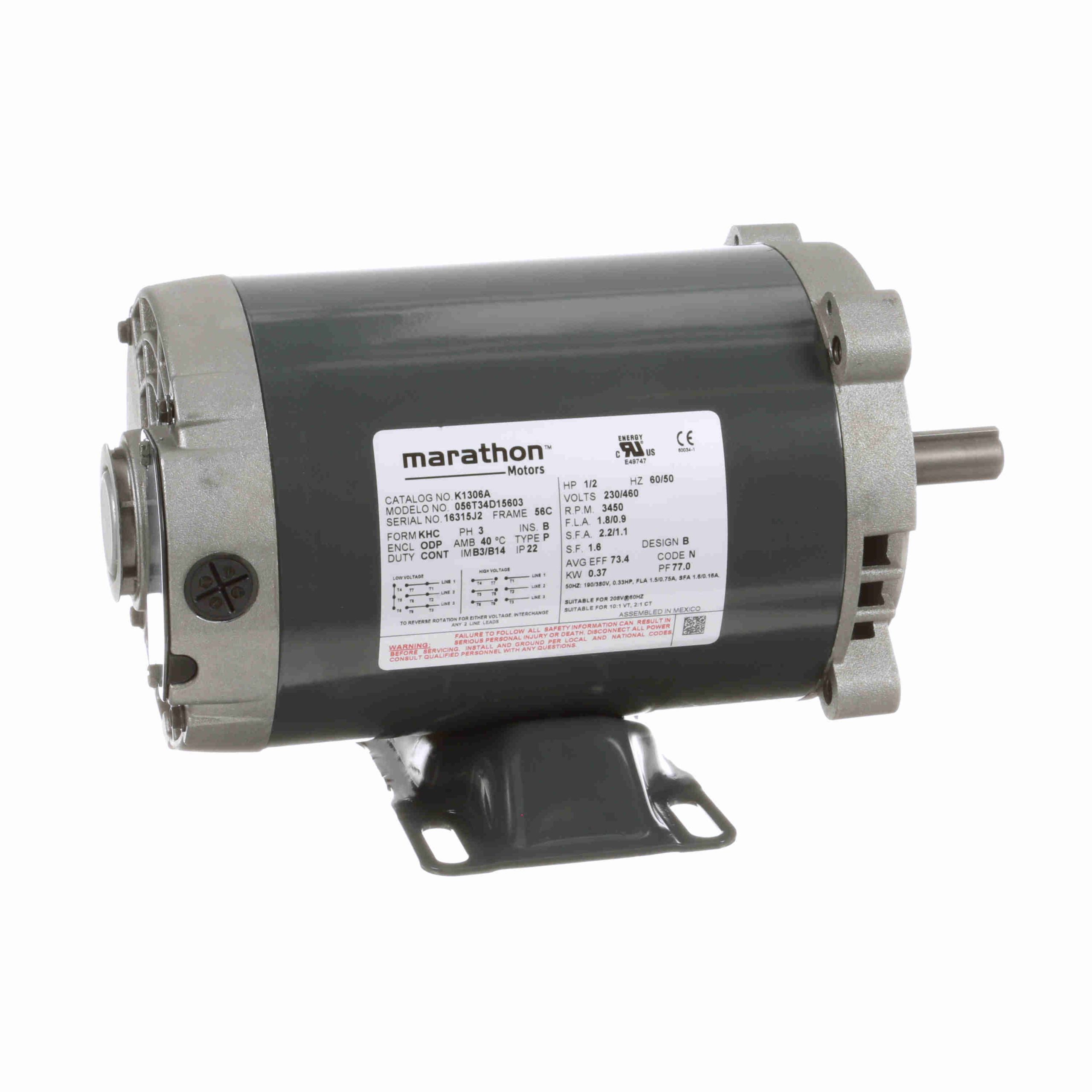

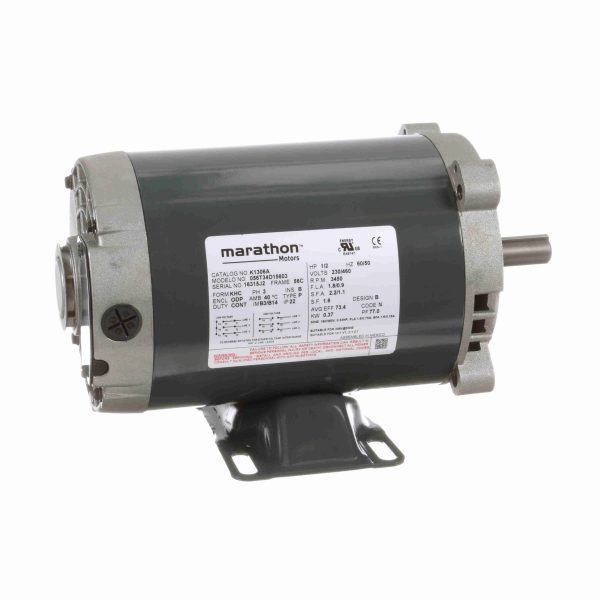

056T34D15603 – Marathon 0.50 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 56C Frame, ODP – K1306A
056T34D15603 Marathon Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856117861 |
Weight: |
17 LB |
| Packaged Length: |
15.81 IN |
Packaged Width: |
7.81 IN |
| Packaged Height: |
8.81 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
1.8/0.90 A |
Speed: |
3450 rpm |
| Service Factor: |
1.6 |
Phase: |
3 |
| Efficiency: |
72.4 % |
Power Factor: |
77 |
| Duty: |
Continous |
Insulation Class: |
B |
| Design Code: |
B |
KVA Code: |
N |
| Frame: |
56C |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Reversible |
| Mounting: |
Rigid base |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Ball |
Opp Drive End Bearing: |
Ball |
| Frame Material: |
Rolled Steel |
Shaft Type: |
NEMA 56 |
| Overall Length: |
11.06 in |
Frame Length: |
8.25 in |
| Shaft Diameter: |
0.625 in |
Shaft Extension: |
1.88 in |
| Assembly/Box Mounting: |
F1 Out ODE Brkt Radial |
