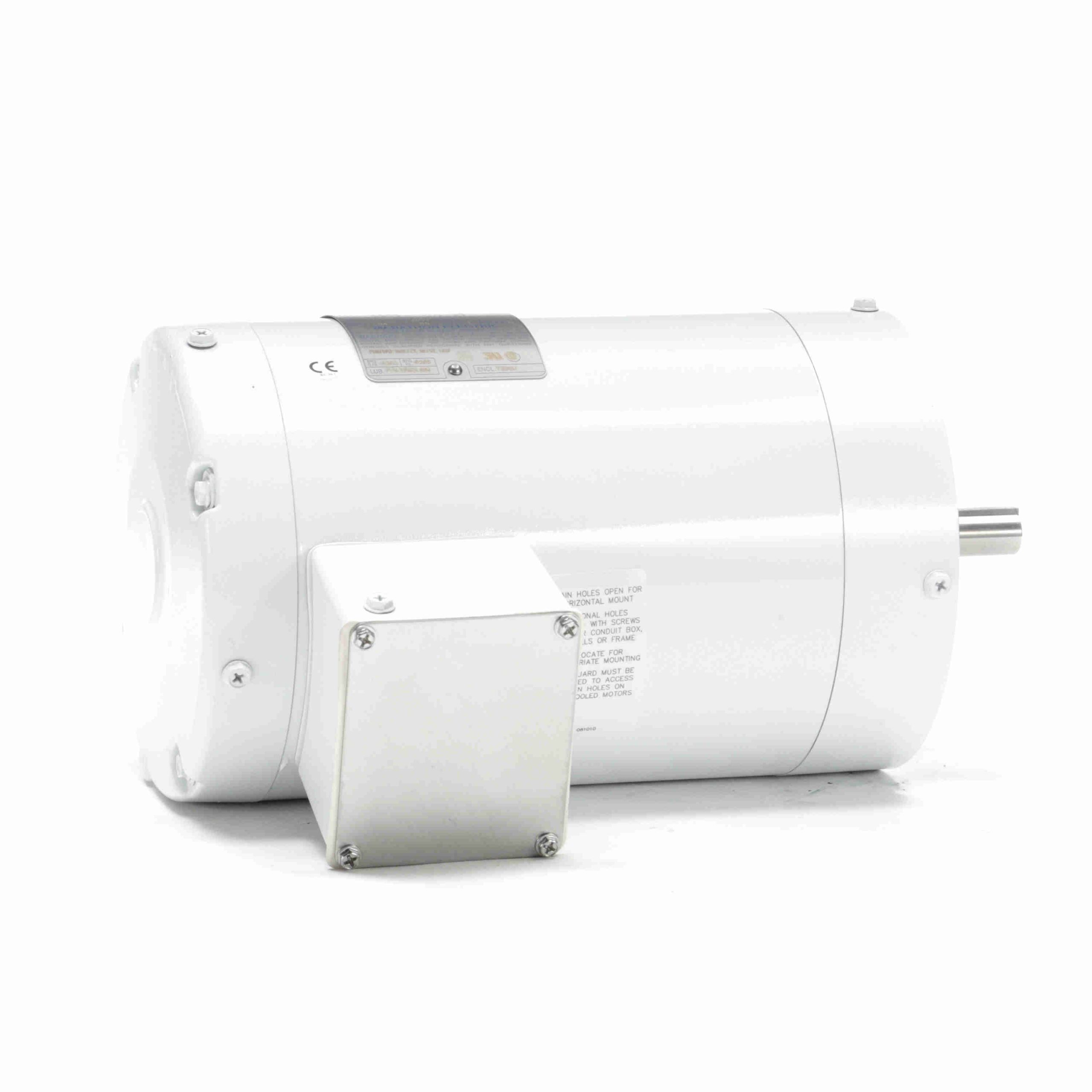

056T34V5303 – Marathon 1.50 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N648
056T34V5303 Marathon Washdown Duty Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856029119 |
Weight: |
42 LB |
| Packaged Length: |
14.63 IN |
Packaged Width: |
11.25 IN |
| Packaged Height: |
10.65 IN |
Nameplate Specifications
| Output HP: |
1.50 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230/460 V |
| Current: |
4.2-3.8/1.9 A |
Speed: |
3450 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
84 % |
Power Factor: |
88 |
| Duty: |
Continous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
L |
| Frame: |
56C |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
8.92 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
12.56 in |
| Frame Length: |
7.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.94 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
0.00 |
|
7.80 |
347.0 |
200 |
|
|
1.50 |
| Break-Down |
0.00 |
|
9.50 |
422.0 |
2,600 |
|
|
1.50 |
| Locked-Rotor |
17.00 |
|
8.20 |
364.0 |
0 |
|
|
1.50 |
| Full Load |
1.90 |
|
2.25 |
100.0 |
3,473 |
|
|
1.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
0.77 |
0.86 |
1.19 |
1.50 |
1.90 |
2.25 |
2.71 |
| Rated Output (KW) |
0.14 |
0.36 |
0.76 |
1.05 |
1.35 |
1.66 |
2.02 |
| Efficiency (%) |
0.0 |
71.5 |
78.9 |
80.8 |
84.4 |
82.6 |
81.5 |
| Power Factor (%) |
22.8 |
51.8 |
80.6 |
87.8 |
88.9 |
92.4 |
93.4 |
| Speed (RPM) |
3,598 |
3,571 |
3,533 |
3,507 |
3,473 |
3,442 |
3,401 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
85.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
0.50 |
1.20 |
1.70 |
2.30 |
2.80 |
3.40 |
