056T34V5307 – Marathon 1 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N601

056T34V5307 – Marathon 1 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N601

056T34V5307 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • 10:1 Variable torque, Constant torque speed range as listed below
  • MAX GUARD® Class F insulation system, F1 mounting only, cannot reassemble to F2
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Double sealed ball bearings, Totally enclosed, non-ventilated
  • 303 Stainless steel shaft with spring loaded contact seals in each endshield (Drive end only on TENV motors)
  • Stainless steel conduit box cover, nameplate, fan guard (TEFC) and hardware
  • Cast oversized conduit box with high temperature nitrile gaskets and threaded entrance
  • Plugged drain holes in each endshield for all angle mounting
  • Internal corrosion resistant coatings on frame, base, endshields, rotor and stator
  • USDA-approved, white epoxy RUST-OLEUM® paint

Marathon Motors
Regal Beloit

Description

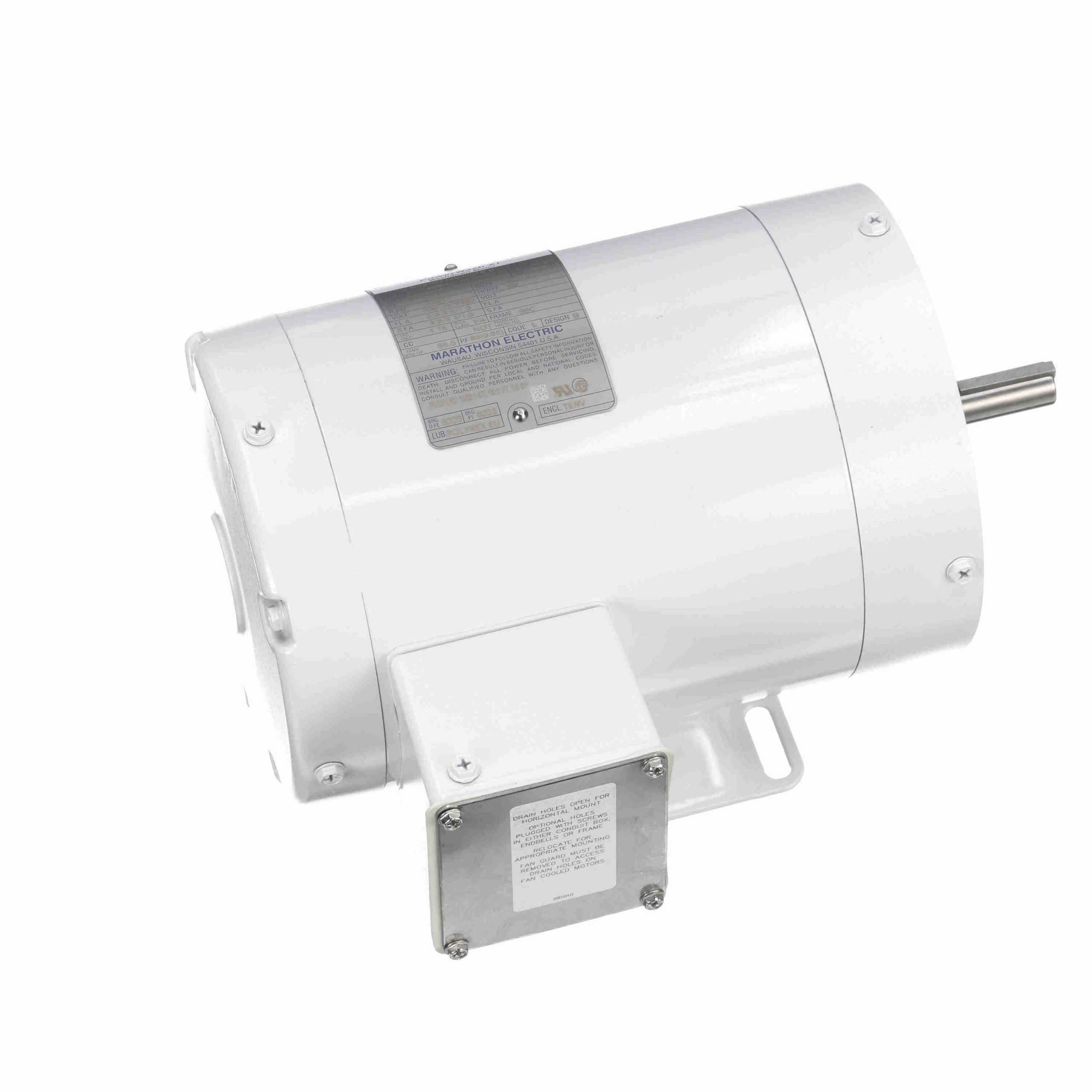

056T34V5307 – Marathon 1 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N601

056T34V5307 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856029430 Weight: 35 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 2.8-2.6/1.3 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 85.5 % Power Factor: 85
Duty: Continous Insulation Class: F
Design Code: B KVA Code: L
Frame: 56C Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 11.56 in
Frame Length: 6.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 0.0 6.00 400.0 2,700 0.00 0.0 1.00
Pull-Up 0.00 0.0 4.30 287.0 400 0.00 0.0 1.00
Full Load 1.30 100.0 1.50 100.0 3,495 0.00 0.0 1.00
Locked-Rotor 12.00 923.0 4.50 300.0 0 0.00 0.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 150 %
Current (Amps) 0.57 0.66 0.81 1.04 1.29 1.55 1.90
Rated Output (KW) 0.18 0.29 0.49 0.70 0.93 1.07 1.42
Efficiency (%) 0.0 64.1 76.2 80.1 80.3 80.3 78.9
Power Factor (%) 39.6 54.2 75.9 84.5 90.8 86.6 93.8
Speed (RPM) 3,599 3,571 3,551 3,524 3,495 3,455 3,430
Temp. Rise @ FL 0.0 0.0 0.0 0.0 75.0 0.0 0.0
Torque (ft-lbs) 0.00 0.36 0.74 1.12 1.51 1.75 2.30
