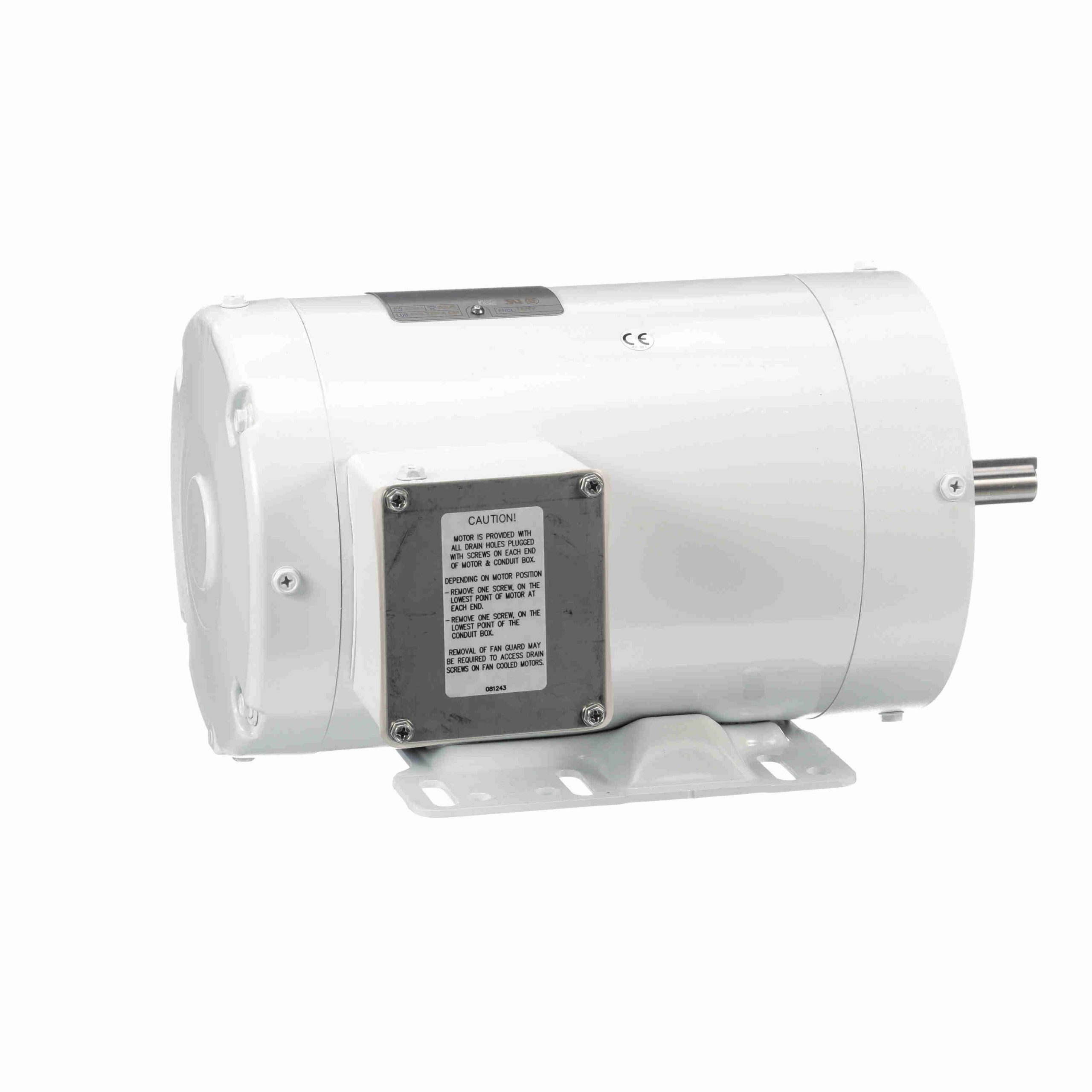

056T34V5308 – Marathon 1.50 HP Washdown Motor, 3 phase, 3600 RPM, 230/460 V, 56HC Frame, TENV – N605

056T34V5308 – Marathon 1.50 HP Washdown Motor, 3 phase, 3600 RPM, 230/460 V, 56HC Frame, TENV – N605

056T34V5308 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • 10:1 Variable torque, Constant torque speed range as listed below
  • MAX GUARD® Class F insulation system, F1 mounting only, cannot reassemble to F2
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Double sealed ball bearings, Totally enclosed, non-ventilated
  • 303 Stainless steel shaft with spring loaded contact seals in each endshield (Drive end only on TENV motors)
  • Stainless steel conduit box cover, nameplate, fan guard (TEFC) and hardware
  • Cast oversized conduit box with high temperature nitrile gaskets and threaded entrance
  • Plugged drain holes in each endshield for all angle mounting
  • Internal corrosion resistant coatings on frame, base, endshields, rotor and stator
  • USDA-approved, white epoxy RUST-OLEUM® paint

Marathon Motors
Regal Beloit

Description

056T34V5308 – Marathon 1.50 HP Washdown Motor, 3 phase, 3600 RPM, 230/460 V, 56HC Frame, TENV – N605

056T34V5308 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856029461 Weight: 43 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 3.8/1.9 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 84 % Power Factor: 88
Duty: Continous Insulation Class: F
Design Code: B KVA Code: L
Frame: 56HC Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 8.92 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 12.56 in
Frame Length: 7.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 1.90 2.25 100.0 3,473 1.50
Locked-Rotor 17.00 8.20 364.0 0 1.50
Pull-Up 0.00 7.80 347.0 200 1.50
Break-Down 0.00 9.50 422.0 2,600 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.77 0.86 1.19 1.50 1.90 2.25 2.71
Rated Output (KW) 0.14 0.36 0.76 1.05 1.35 1.66 2.02
Efficiency (%) 0.0 71.5 78.9 80.8 84.4 82.6 81.5
Power Factor (%) 22.8 51.8 80.6 87.8 88.9 92.4 93.4
Speed (RPM) 3,598 3,571 3,533 3,507 3,473 3,442 3,401
Temp. Rise @ FL 0.0 0.0 0.0 0.0 85.0 0.0 0.0
Torque (ft-lbs) 0.00 0.50 1.20 1.70 2.30 2.80 3.40
