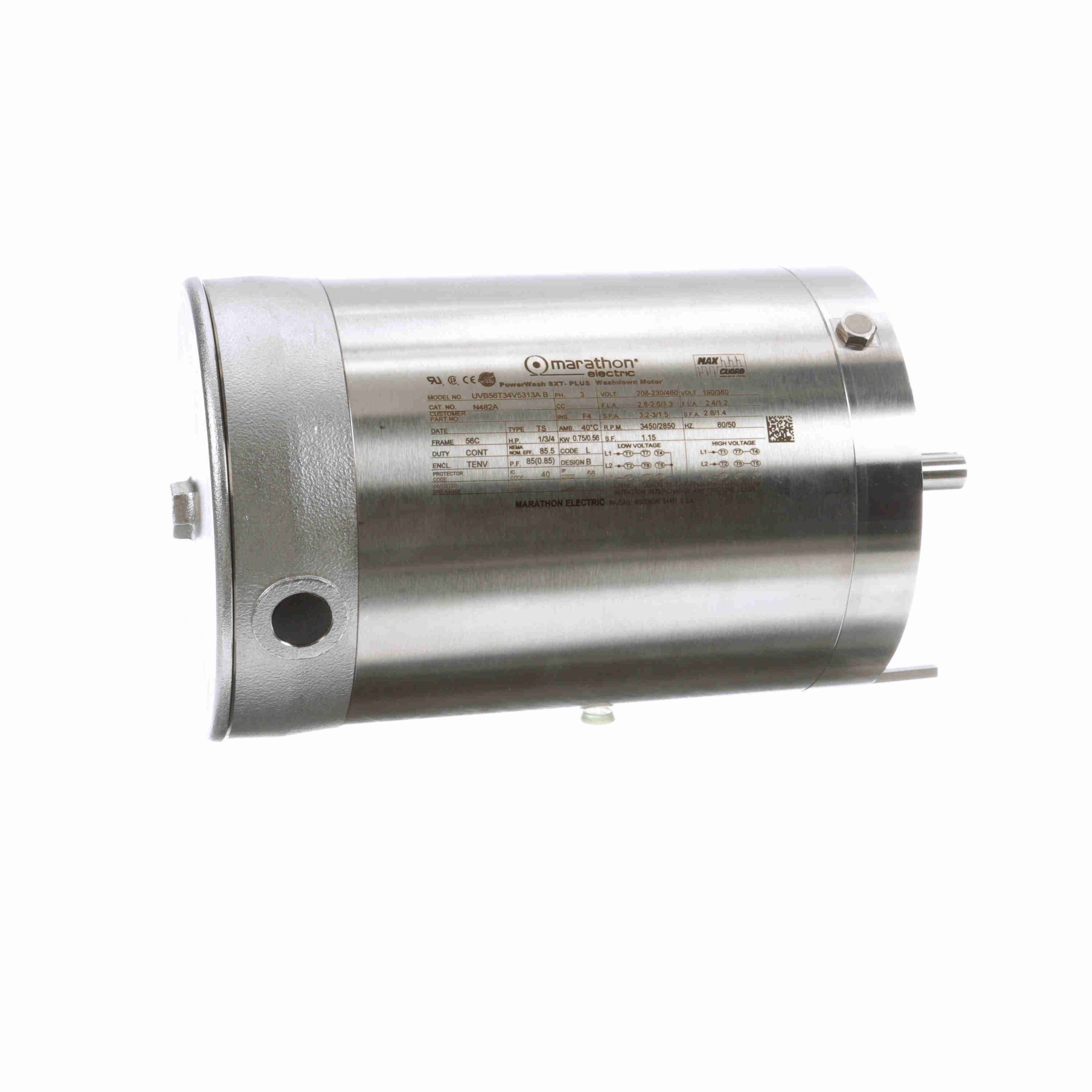

056T34V5313 – Marathon 1 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N482A

056T34V5313 – Marathon 1 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N482A

056T34V5313 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Suitable for use on VFD, 10:1 Variable torque, 10:1 (TEFC) or 1000:1 (TENV) Constant Torque
  • MAX GUARD® Class F insulation system
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Double sealed ball bearings with moisture resistant, high temperature grease
  • 300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, mounting base and hardware for superior corrosion resistance
  • Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator
  • F1 mounting only, cannot reassemble to F2
  • 100% Paint-free construction, Totally enclosed, non-ventilated
  • Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals
  • Hydrophobic breather in OP endshield and conduit box equalize air pressure, BISSC Certified for baking industry

Marathon Motors
Regal Beloit

Description

056T34V5313 – Marathon 1 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N482A

056T34V5313 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856131966 Weight: 45 LB
Packaged Length: 19.69 IN Packaged Width: 11.25 IN
Packaged Height: 10.63 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60/50 Hz Voltage: 208-230/460 V
Current: 2.8-2.6/1.3 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 85.5 % Power Factor: 85
Duty: Continous Insulation Class: F
Design Code: B KVA Code: L
Frame: 56C Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 56

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 13.15 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: NEMA 56 Overall Length: 12.22 in
Frame Length: 7.00 in Shaft Diameter: 0.625 in
Shaft Extension: 2.07 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 11.30 883.0 78.20 326.0 528 5.99 0.0 1.00
Break-Down 7.46 583.0 111.40 464.0 2,557 4.86 0.0 1.00
Locked-Rotor 12.20 953.0 78.30 326.0 0 6.02 0.0 1.00
Full Load 1.28 100.0 24.00 100.0 3,503 0.88 86.5 1.00
No Load 0.54 42.0 0.00 0.0 3,589 0.13 30.4 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 0.54 0.63 0.81 1.04 1.28 1.43 1.56 1.84
Rated Output (KW) 0.13 0.28 0.48 0.68 0.88 1.01 1.10 1.33
Efficiency (%) 0.0 68.4 79.5 83.0 84.5 84.8 83.9 83.2
Power Factor (%) 30.4 55.4 73.8 81.9 86.6 88.4 88.8 90.4
Speed (RPM) 3,589 3,571 3,550 3,528 3,503 3,486 3,478 3,450
Temp. Rise @ FL 0.0 0.0 0.0 0.0 98.0 114.0 0.0 0.0
Torque (ft-lbs) 0.00 6.00 12.00 18.00 24.00 27.60 30.00 36.00
