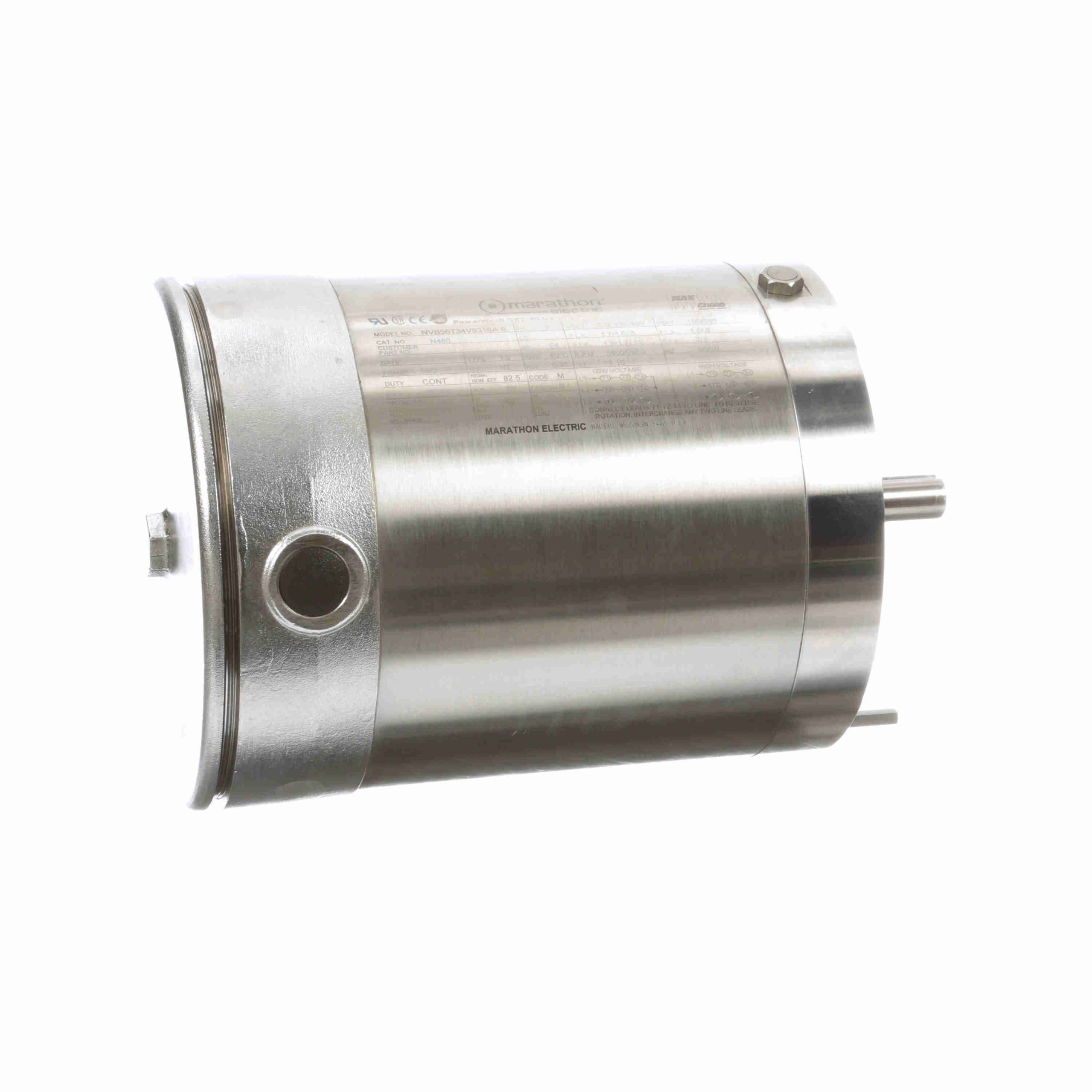

056T34V5316 – Marathon 0.50 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N480A

056T34V5316 – Marathon 0.50 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N480A

056T34V5316 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Suitable for use on VFD, 10:1 Variable torque, 10:1 (TEFC) or 1000:1 (TENV) Constant Torque
  • MAX GUARD® Class F insulation system
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Double sealed ball bearings with moisture resistant, high temperature grease
  • 300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, mounting base and hardware for superior corrosion resistance
  • Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator
  • F1 mounting only, cannot reassemble to F2
  • 100% Paint-free construction, Totally enclosed, non-ventilated
  • Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals
  • Hydrophobic breather in OP endshield and conduit box equalize air pressure, BISSC Certified for baking industry

Marathon Motors
Regal Beloit

Description

056T34V5316 – Marathon 0.50 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N480A

056T34V5316 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856131942 Weight: 31 LB
Packaged Length: 19.69 IN Packaged Width: 11.25 IN
Packaged Height: 10.63 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60/50 Hz Voltage: 208-230/460 V
Current: 1.7-1.6/0.80 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 82.5 % Power Factor: 79
Duty: Continous Insulation Class: F
Design Code: B KVA Code: M
Frame: 56C Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 56

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 31.2 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: NEMA 56 Overall Length: 10.47 in
Frame Length: 5.25 in Shaft Diameter: 0.625 in
Shaft Extension: 2.07 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 0.0 2.30 308.0 400 0.00 0.0 0.50
Locked-Rotor 7.00 0.0 2.53 338.0 0 0.00 0.0 0.50
Full Load 0.80 0.0 0.75 100.0 3,513 0.00 0.0 0.50
Break-Down 0.00 0.0 3.55 475.0 2,700 0.00 0.0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.43 0.46 0.53 0.63 0.72 0.86 1.01
Rated Output (KW) 0.08 0.16 0.26 0.36 0.45 0.57 0.69
Efficiency (%) 0.0 61.5 72.4 77.9 82.4 81.7 81.3
Power Factor (%) 24.5 42.8 61.1 71.9 79.1 83.2 85.7
Speed (RPM) 3,598 3,576 3,556 3,535 3,513 3,489 3,463
Temp. Rise @ FL 0.0 0.0 0.0 0.0 65.0 82.0 0.0
Torque (ft-lbs) 0.00 0.19 0.37 0.56 0.75 0.94 1.14
