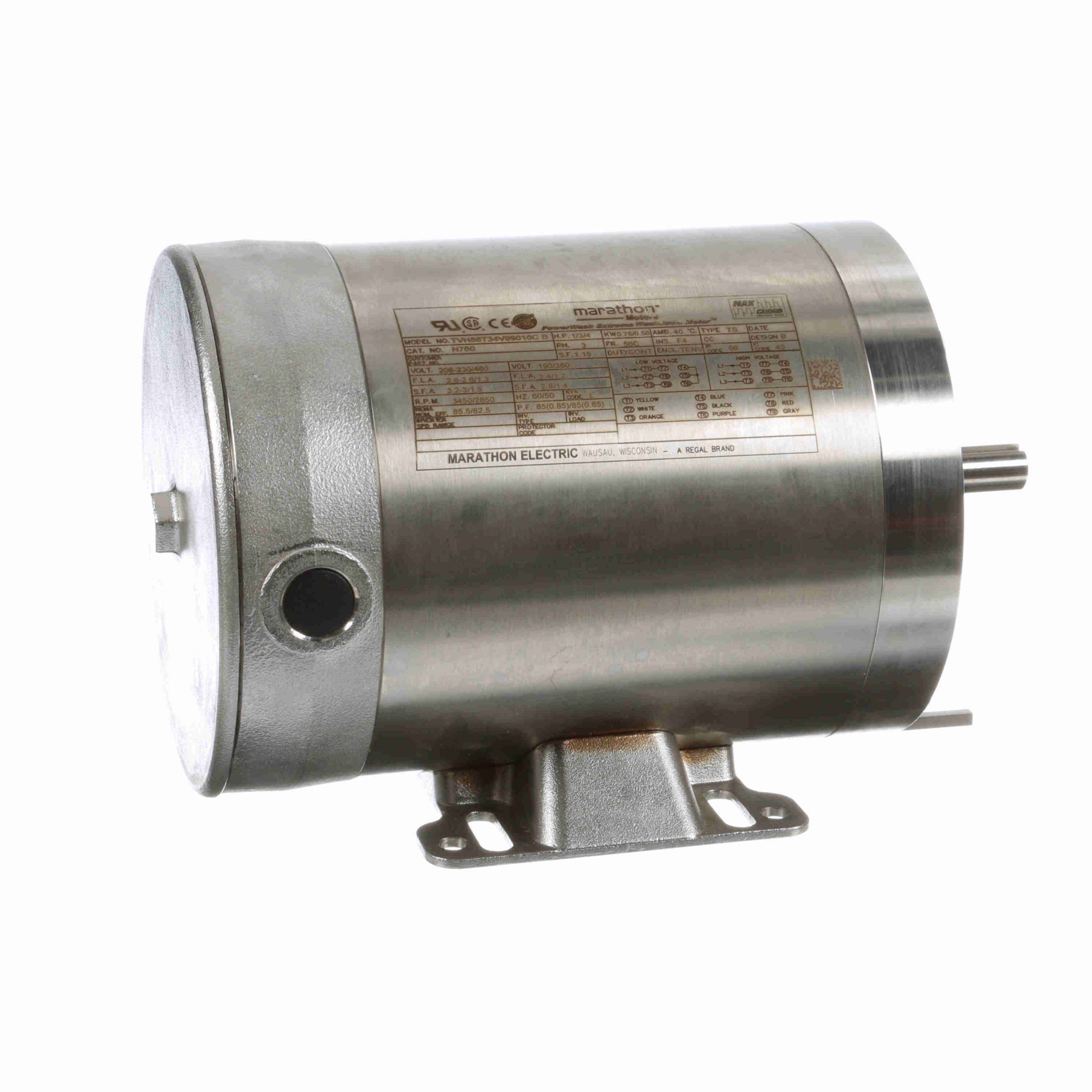

056T34V99016 – Marathon 1 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N760

056T34V99016 – Marathon 1 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N760

056T34V99016 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Complete motor Encapsulation
  • Suitable for use on VFD 10:1 Variable torque, 10:1 (TEFC) or 1000:1 (TENV) Constant Torque, 1.0 Service Factor
  • MAX GUARD® Class F insulation system
  • Potted lead entrance
  • 1.15 Service Factor on sinewave or 1.0 Service Factor on IGBT power
  • Double sealed ball bearings with moisture resistant, high temperature grease
  • 300 Series Stainless steel external construction: frame, endshields, shaft,conduit box, mounting base and hardware for superior corrosion resistance
  • 100% Paint-free construction. Totally enclosed, non-ventilated
  • Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals
  • Nameplate information laser etched on frame

Marathon Motors
Regal Beloit

Description

056T34V99016 – Marathon 1 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N760

056T34V99016 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856031549 Weight: 44 LB
Packaged Length: 19.69 IN Packaged Width: 11.25 IN
Packaged Height: 10.63 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60/50 Hz Voltage: 208-230/460 V
Current: 2.8-2.6/1.3 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 85.5 % Power Factor: 85
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 56C Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 66

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: NEMA 56 Overall Length: 11.22 in
Frame Length: 6.00 in Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 0.0 4.30 287.0 400 0.00 0.0 1.00
Break-Down 0.00 0.0 6.00 400.0 2,700 0.00 0.0 1.00
Full Load 1.30 100.0 1.50 100.0 3,495 0.00 0.0 1.00
Locked-Rotor 12.00 923.0 4.50 300.0 0 0.00 0.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 150 %
Current (Amps) 0.57 0.66 0.81 1.04 1.29 1.55 1.90
Rated Output (KW) 0.18 0.29 0.49 0.70 0.93 1.07 1.42
Efficiency (%) 0.0 64.1 76.2 80.1 80.3 80.3 78.9
Power Factor (%) 39.6 54.2 75.9 84.5 90.8 86.6 93.8
Speed (RPM) 3,599 3,571 3,551 3,524 3,495 3,455 3,430
Temp. Rise @ FL 0.0 0.0 0.0 0.0 75.0 0.0 0.0
Torque (ft-lbs) 0.00 0.36 0.74 1.12 1.51 1.75 2.30
