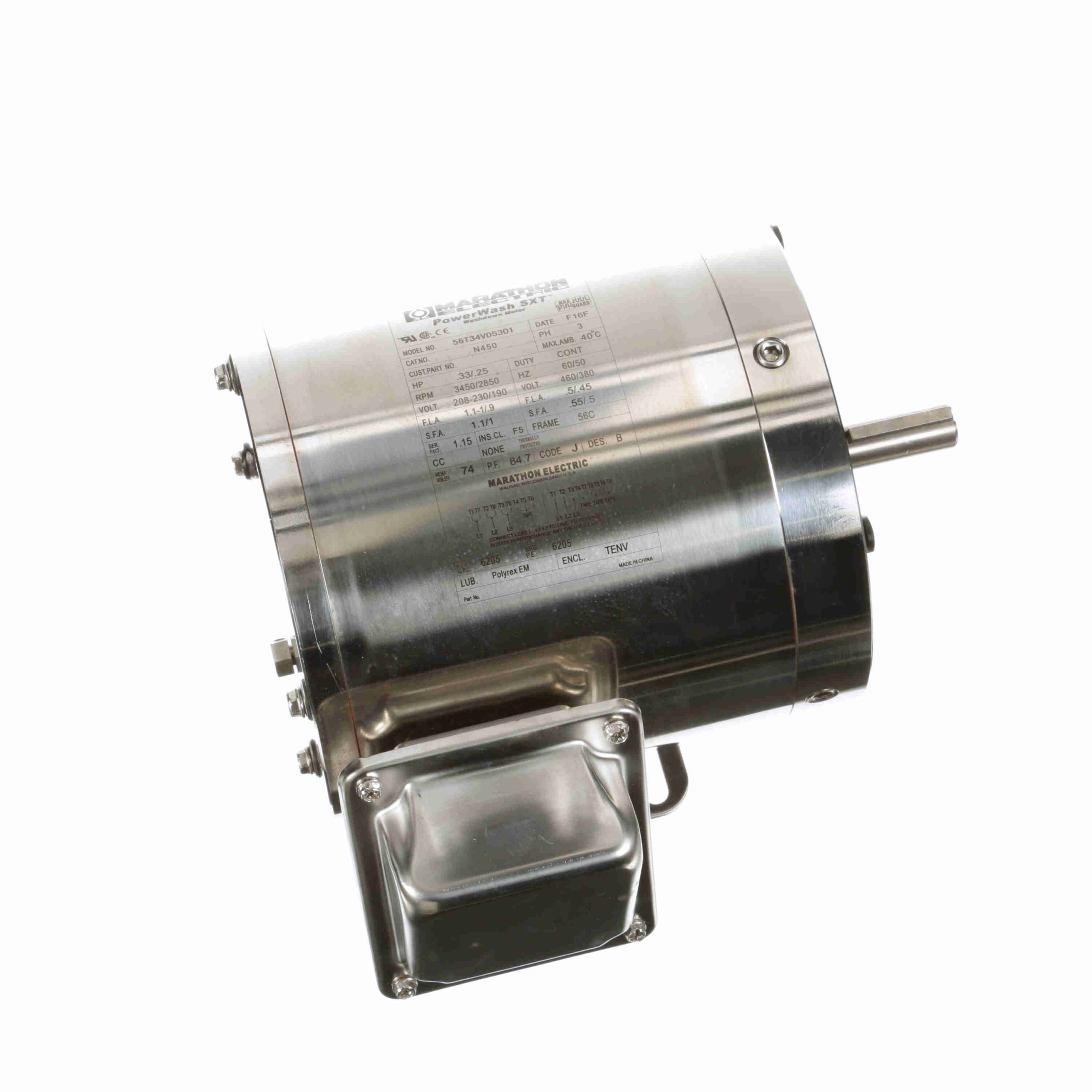

056T34VD5301 – Marathon 0.33 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N450

056T34VD5301 – Marathon 0.33 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N450

056T34VD5301 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Suitable for use on VFD 10:1 Variable torque, 10:1 (TEFC) or Suitable for use on VFD 10:1 Variable torque, 10:1 (TEFC) or 1000:1 (TENV) Constant Torque
  • MAX GUARD® Class F insulation system
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Double sealed ball bearings, Totally enclosed, non-ventilated
  • 303 stainless steel shaft with spring loaded contact seals in each end (Drive end only on TENV)
  • 300 Series Stainless steel external construction: frame, endshields, conduit box, mounting base and hardware for superior corrosion resistance
  • Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator
  • 100% Paint-free construction
  • One way condensation drains in each endshield and conduit box for all angle mounting
  • Nitrile Buna – N gaskets and seals on conduit box, through bolts and endshields

Marathon Motors
Regal Beloit

Description

056T34VD5301 – Marathon 0.33 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TENV – N450

056T34VD5301 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856030283 Weight: 20 LB
Packaged Length: 15.81 IN Packaged Width: 14.31 IN
Packaged Height: 9.38 IN

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 60/50 Hz Voltage: 208-230/460 V
Current: 1.1-1.0/0.50 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 74 % Power Factor: 84.7
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: J
Frame: 56C Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Resistance Main: 13.25 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: NEMA 56 Overall Length: 9.78 in
Shaft Diameter: 0.625 in Shaft Extension: 2.06 in
Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 0.0 24.00 300.0 0 0.00 0.0 0.33
Locked-Rotor 6.10 610.0 19.70 246.0 0 0.00 0.0 0.33
Full Load 1.00 100.0 8.00 100.0 3,431 0.00 0.0 0.33
Pull-Up 0.00 0.0 17.30 216.0 0 0.00 0.0 0.33

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.28 0.29 0.35 0.43 0.50 0.63 0.75
Rated Output (KW) 0.11 0.14 0.21 0.28 0.34 0.44 0.53
Efficiency (%) 0.0 46.6 60.2 66.5 74.1 68.9 67.4
Power Factor (%) 49.7 58.4 74.2 81.1 84.6 87.6 88.2
Speed (RPM) 3,596 3,545 3,508 3,472 3,431 3,386 3,333
Temp. Rise @ FL 0.0 0.0 0.0 0.0 60.0 0.0 0.0
Torque (ft-lbs) 0.00 2.00 4.00 6.00 8.20 10.00 12.00
