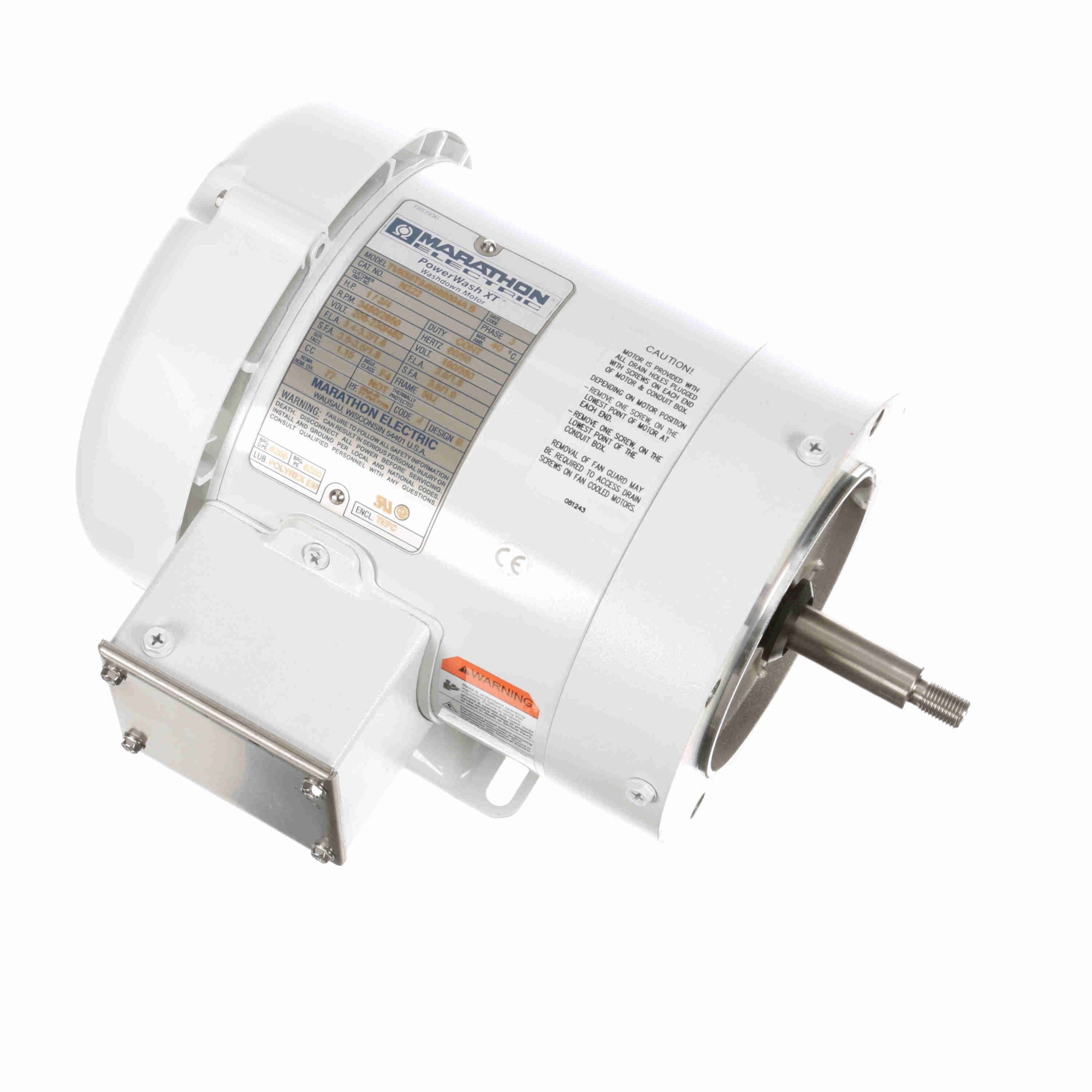

056T34W99004 – Marathon 1 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56J Frame, TEFC – N222

056T34W99004 – Marathon 1 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56J Frame, TEFC – N222

056T34W99004 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • 10:1 Variable torque, Constant torque speed range as listed below
  • MAX GUARD® Class F insulation system
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Double sealed ball bearings
  • 303 Stainless steel shaft with spring loaded contact seals in each endshield (Drive end only on TENV motors)
  • Stainless steel conduit box cover, nameplate, fan guard (TEFC) and hardware
  • Cast oversized conduit box with high temperature nitrile gaskets and threaded entrance
  • Plugged drain holes in each endshield for all angle mounting
  • Internal corrosion resistant coatings on frame, base, endshields, rotor and stator
  • USDA-approved, white epoxy RUST-OLEUM® paint

Marathon Motors
Regal Beloit

Description

056T34W99004 – Marathon 1 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56J Frame, TEFC – N222

056T34W99004 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856029911 Weight: 21 LB
Packaged Length: 14.63 IN Packaged Width: 11.25 IN
Packaged Height: 10.65 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60/50 Hz Voltage: 208-230/460 V
Current: 3.4-3.2/1.6 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 77 % Power Factor: 80
Duty: Continous Insulation Class: F
Design Code: B KVA Code: J
Frame: 56J Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Resistance Main: 23.07 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: J Overall Length: 11.37 in
Frame Length: 5.00 in Shaft Diameter: 0.625 in
Shaft Extension: 2.44 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 1.60 100.0 1.50 100.0 3,460 0.00 0.0 1.00
Break-Down 0.00 0.0 5.00 333.0 2,600 0.00 0.0 1.00
Locked-Rotor 10.00 625.0 3.60 240.0 0 0.00 0.0 1.00
Pull-Up 0.00 0.0 3.50 233.0 200 0.00 0.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.86 0.93 1.07 1.26 1.55 1.80 2.14
Rated Output (KW) 0.16 0.33 0.53 0.75 0.99 1.23 1.50
Efficiency (%) 0.0 57.3 69.5 75.2 77.1 76.2 74.6
Power Factor (%) 23.1 44.1 62.6 74.3 80.0 85.6 88.2
Speed (RPM) 3,599 3,563 3,530 3,495 3,460 3,411 3,360
Temp. Rise @ FL 0.0 0.0 0.0 0.0 53.0 0.0 0.0
Torque (ft-lbs) 0.00 0.37 0.74 1.13 1.55 1.93 2.35
