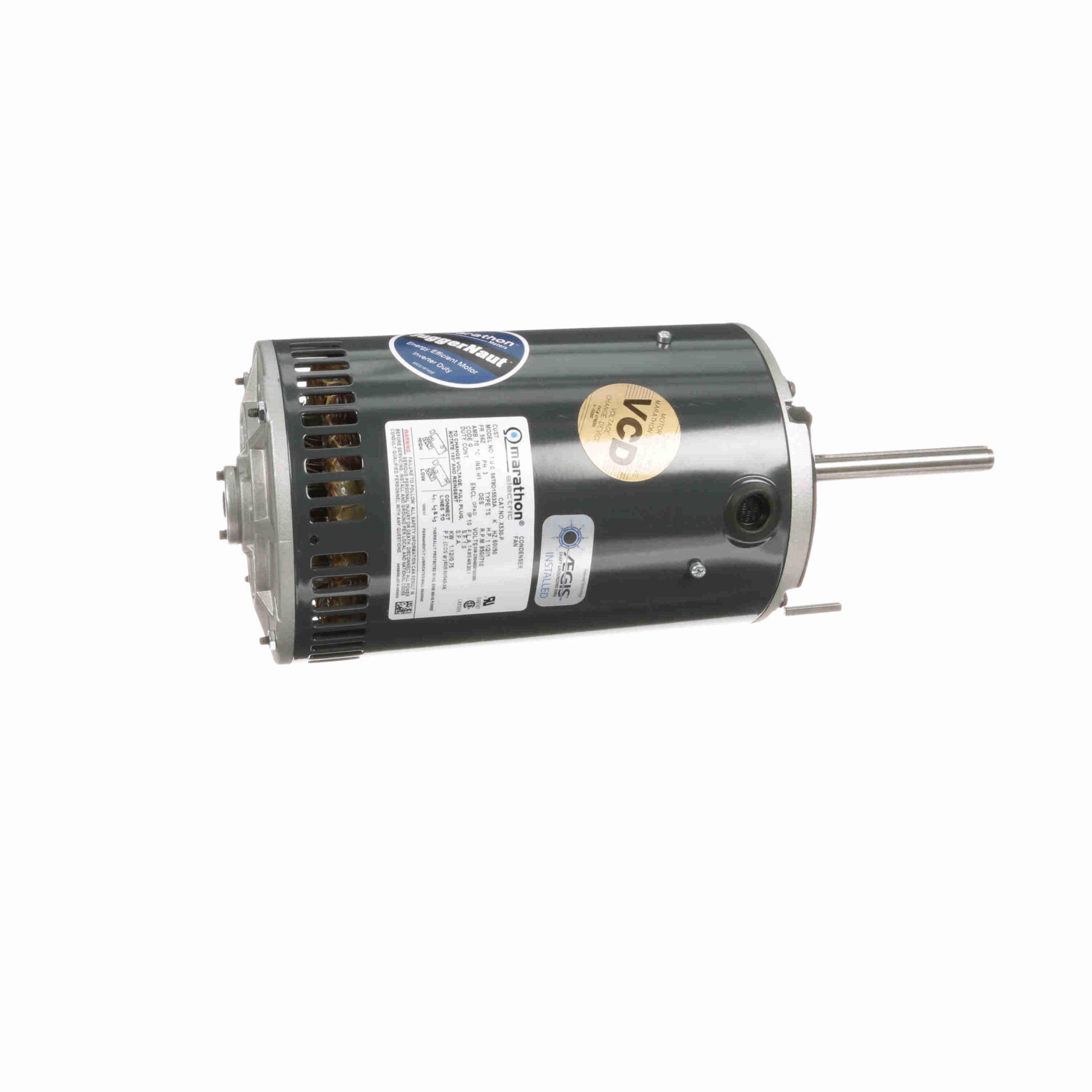

056T8O15533 – Marathon 1.50 HP Condenser Fans HVAC/R Motor, 3 phase, 900 RPM, 208-230/460 V, 56Z Frame, OPAO – X530-P
056T8O15533 Marathon Condenser Fans Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856066008 |
Weight: |
46 LB |
| Packaged Length: |
19.88 IN |
Packaged Width: |
10.25 IN |
| Packaged Height: |
8.12 IN |
Nameplate Specifications
| Output HP: |
1.50 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60/50 Hz |
Voltage: |
208-230/460 V |
| Current: |
7.0-6.8/3.4 A |
Speed: |
850 rpm |
| Service Factor: |
1 |
Phase: |
3 |
| Efficiency: |
72 % |
Power Factor: |
60 |
| Duty: |
Continuous |
Insulation Class: |
H |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
G |
| Frame: |
56Z |
Enclosure: |
Open Air Over |
| Thermal Protection: |
Automatic Lock Rotor Only |
Ambient Temperature: |
70 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized ( Not Protector) |
CSA: |
Y |
| CE: |
N |
IP Code: |
10 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
8 |
Rotation: |
Reversible |
| Resistance Main: |
15 Ohms |
Mounting: |
Round Belly Band |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
17.01 in |
| Frame Length: |
9.66 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
5.06 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
8.00 |
235.0 |
20.50 |
216.0 |
650 |
|
70.0 |
1.50 |
| Pull-Up |
10.50 |
309.0 |
15.80 |
166.0 |
250 |
|
|
1.50 |
| Full Load |
3.40 |
100.0 |
9.50 |
100.0 |
835 |
|
|
1.50 |
| 2/3 |
9.50 |
279.0 |
17.00 |
179.0 |
400 |
|
|
1.50 |
| No Load |
2.40 |
71.0 |
0.00 |
0.0 |
900 |
|
|
1.50 |
| 1/3 |
10.80 |
318.0 |
15.50 |
163.0 |
100 |
|
|
1.50 |
| Locked-Rotor |
11.00 |
324.0 |
17.20 |
181.0 |
0 |
|
60.0 |
1.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
2.40 |
2.50 |
2.65 |
2.90 |
3.40 |
3.50 |
3.90 |
| Rated Output (KW) |
0.22 |
0.55 |
0.85 |
1.20 |
1.55 |
1.85 |
2.00 |
| Efficiency (%) |
0.0 |
54.0 |
67.5 |
71.0 |
72.0 |
71.0 |
69.0 |
| Power Factor (%) |
11.0 |
26.0 |
40.0 |
51.0 |
60.0 |
64.0 |
66.0 |
| Speed (RPM) |
900 |
885 |
870 |
855 |
835 |
825 |
810 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
2.25 |
4.55 |
7.00 |
9.50 |
11.00 |
12.20 |
