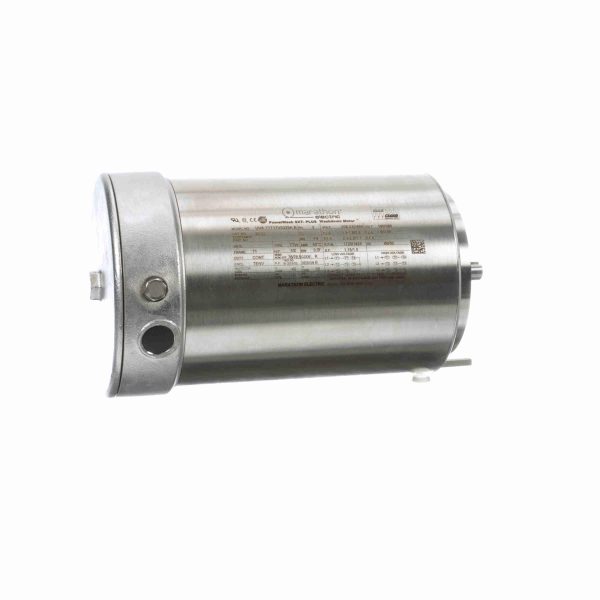

071T17V5329 – Marathon 0.50 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 71 Frame, TENV – R722

071T17V5329 – Marathon 0.50 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 71 Frame, TENV – R722

071T17V5329 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Suitable for use on VFD, 10:1 Variable torque, 10:1 (TEFC) or 1000:1 (TENV) Constant Torque
  • MAX GUARD® Class F insulation system
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Double sealed ball bearings with moisture resistant, high temperature grease
  • 300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, mounting base and hardware for superior corrosion resistance
  • Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator
  • 100% Paint-free construction. Totally enclosed, non-ventilated
  • Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals
  • Hydrophobic breather in OP endshield and conduit box equalize air pressure
  • Nameplate information laser etched on frame

Marathon Motors
Regal Beloit

Description

071T17V5329 – Marathon 0.50 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 71 Frame, TENV – R722

071T17V5329 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856031303 Weight: 42 LB
Packaged Length: 19.69 IN Packaged Width: 11.25 IN
Packaged Height: 10.63 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60/50 Hz Voltage: 208-230/460 V
Current: 1.9-1.8/0.90 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 76 % Power Factor: 74
Duty: Continous Insulation Class: F
Design Code: B KVA Code: K
Frame: 71 Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6204 Opp Drive End Bearing Size: 6204
UL: Recognized CSA: Y
CE: Y IP Code: 56

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: IEC Overall Length: 11.58 in
Shaft Diameter: 0.555 in Shaft Extension: 1.18 in
Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 0.82 100.0 24.00 100.0 1,725 0.00 0.0 0.50
Break-Down 4.50 549.0 100.00 417.0 760 0.00 0.0 0.50
Pull-Up 5.00 0.0 100.70 0.0 0 0.00 0.0 0.50
Locked-Rotor 5.30 646.0 106.00 442.0 0 0.00 0.0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 0.50 0.55 0.62 0.70 0.82 0.89 0.94
Rated Output (KW) 0.08 0.16 0.27 0.38 0.48 0.55 0.60
Efficiency (%) 0.0 58.1 69.1 73.8 75.8 76.7 76.0
Power Factor (%) 18.3 37.4 55.4 67.0 74.4 77.2 79.3
Speed (RPM) 1,793 1,778 1,759 1,741 1,722 1,715 1,701
Temp. Rise @ FL 0.0 0.0 0.0 0.0 86.0 95.0 0.0
Torque (ft-lbs) 0.00 6.00 12.00 18.00 24.00 27.60 30.00
