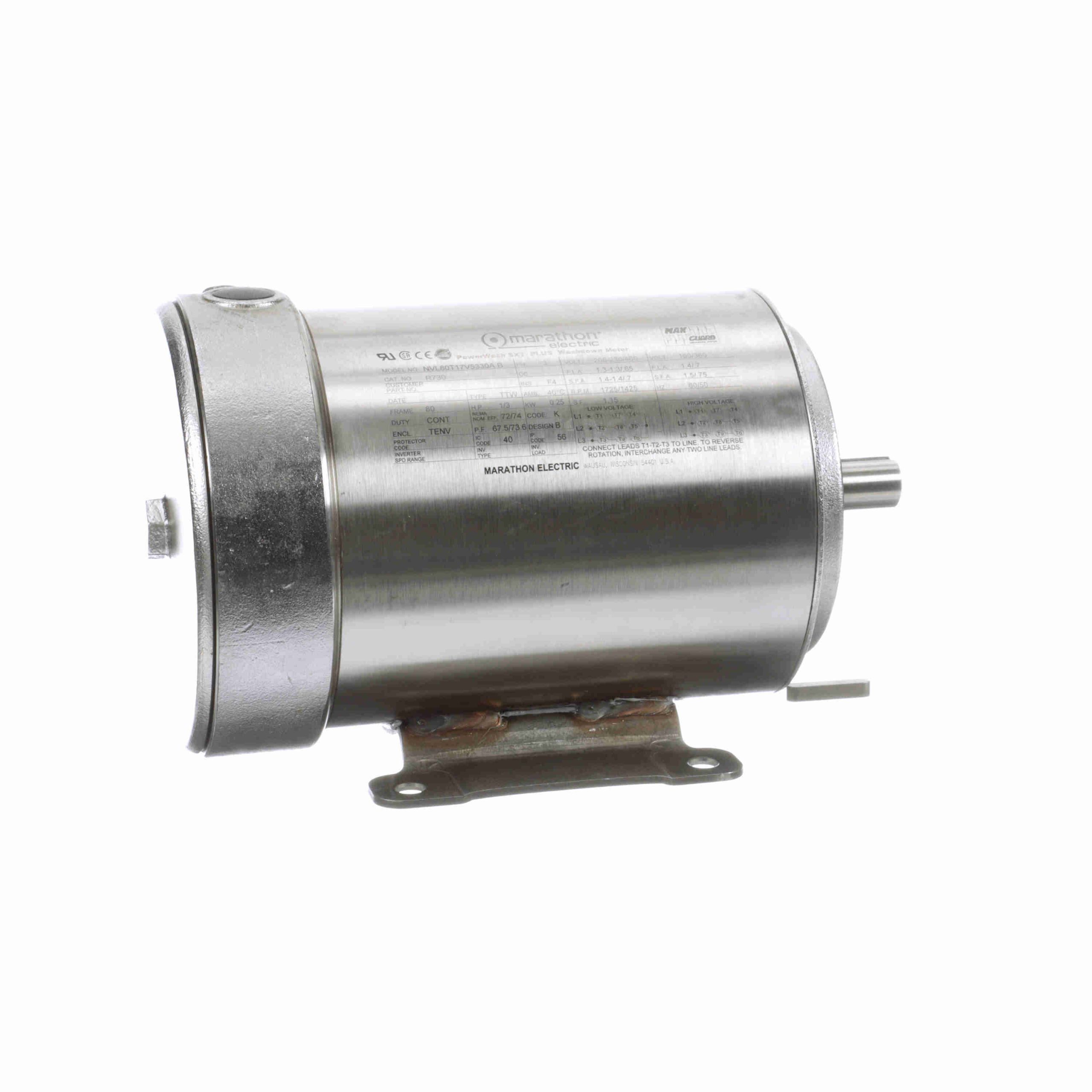

080T17V5330 – Marathon 0.33 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 80 Frame, TENV – R730

080T17V5330 – Marathon 0.33 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 80 Frame, TENV – R730

080T17V5330 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Suitable for use on VFD, 10:1 Variable torque, 10:1 (TEFC) or 1000:1 (TENV) Constant Torque
  • MAX GUARD® Class F insulation system
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Double sealed ball bearings with moisture resistant, high temperature grease
  • 300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, mounting base and hardware for superior corrosion resistance
  • Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator
  • 100% Paint-free construction. Totally enclosed, non-ventilated
  • Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals
  • Hydrophobic breather in OP endshield and conduit box equalize air pressure
  • Nameplate information laser etched on frame

Marathon Motors
Regal Beloit

Description

080T17V5330 – Marathon 0.33 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 80 Frame, TENV – R730

080T17V5330 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856031334 Weight: 27 LB
Packaged Length: 19.69 IN Packaged Width: 11.25 IN
Packaged Height: 10.63 IN

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 60/50 Hz Voltage: 208-230/460 V
Current: 1.3-1.3/0.65 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 72 % Power Factor: 67.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 80 Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6204 Opp Drive End Bearing Size: 6204
UL: Recognized CSA: Y
CE: Y IP Code: 56

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 11 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: IEC Overall Length: 10.22 in
Shaft Diameter: 0.750 in Shaft Extension: 1.57 in
Assembly/Box Mounting: F3

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 0.0 79.60 498.0 0 0.00 0.0 0.33
Locked-Rotor 8.80 677.0 69.60 435.0 0 0.00 0.0 0.33
Full Load 1.30 100.0 16.00 100.0 1,742 0.00 0.0 0.33
Pull-Up 0.00 0.0 68.70 429.0 0 0.00 0.0 0.33

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.47 0.49 0.52 0.56 0.61 0.68 0.74
Rated Output (KW) 0.07 0.13 0.19 0.26 0.33 0.40 0.46
Efficiency (%) 0.0 50.7 65.9 71.7 74.8 76.5 78.7
Power Factor (%) 19.0 32.3 46.6 59.0 68.1 74.6 78.7
Speed (RPM) 1,795 1,784 1,771 1,757 1,742 1,728 1,714
Temp. Rise @ FL 0.0 0.0 0.0 0.0 50.0 0.0 0.0
Torque (ft-lbs) 0.00 4.00 8.00 12.00 16.00 20.00 24.00
