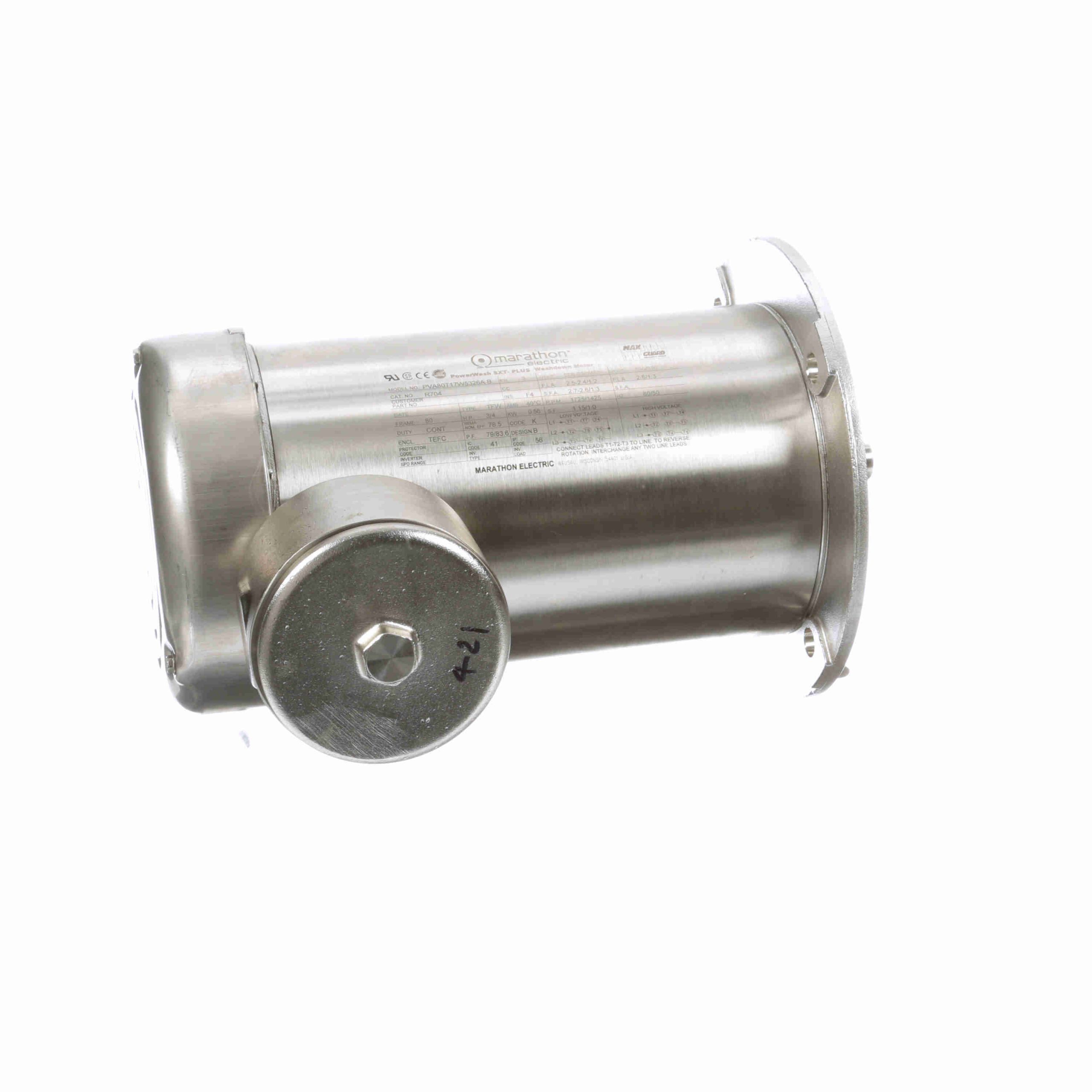

080T17W5326 – Marathon 0.75 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 80 Frame, TEFC – R704

080T17W5326 – Marathon 0.75 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 80 Frame, TEFC – R704

080T17W5326 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Suitable for use on VFD, Suitable for 10:1 CT 60 minute duty, otherwise 2:1 CT, 10:1 (TEFC) or 1000:1 (TENV) Constant Torque
  • MAX GUARD® Class F insulation system
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Double sealed ball bearings with moisture resistant, high temperature grease
  • 300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, mounting base and hardware for superior corrosion resistance
  • Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator
  • 100% Paint-free construction
  • Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals
  • Hydrophobic breather in OP endshield and conduit box equalize air pressure
  • Nameplate information laser etched on frame

Marathon Motors
Regal Beloit

Description

080T17W5326 – Marathon 0.75 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 80 Frame, TEFC – R704

080T17W5326 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856031211 Weight: 40 LB
Packaged Length: 14.63 IN Packaged Width: 11.25 IN
Packaged Height: 10.65 IN

Nameplate Specifications

Output HP: 0.75 Hp Output KW: 0.56 kW
Frequency: 60/50 Hz Voltage: 208-230/460 V
Current: 2.5-2.4/1.2 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 78.5 % Power Factor: 79
Duty: Continous Insulation Class: F
Design Code: B KVA Code: K
Frame: 80 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6204 Opp Drive End Bearing Size: 6204
UL: Recognized CSA: Y
CE: Y IP Code: 56

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: IEC Overall Length: 12.26 in
Shaft Diameter: 0.750 in Shaft Extension: 1.57 in
Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 8.00 708.0 150.00 417.0 0 0.00 0.0 0.75
Full Load 1.13 100.0 36.00 100.0 1,728 0.00 0.0 0.75
Break-Down 6.20 549.0 145.00 403.0 914 0.00 0.0 0.75
Pull-Up 7.65 677.0 140.00 389.0 349 0.00 0.0 0.75

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 %
Current (Amps) 0.66 0.70 0.80 0.94 1.10 1.20
Rated Output (KW) 122.00 239.00 387.00 544.00 700.00 787.00
Efficiency (%) 0.0 59.4 72.6 76.7 78.7 79.8
Power Factor (%) 23.3 43.3 60.9 72.6 79.4 82.1
Speed (RPM) 1,792 1,776 1,759 1,740 1,721 1,708
Temp. Rise @ FL 0.0 0.0 0.0 0.0 45.0 52.0
Torque (ft-lbs) 0.00 9.00 18.00 27.00 36.00 41.40
