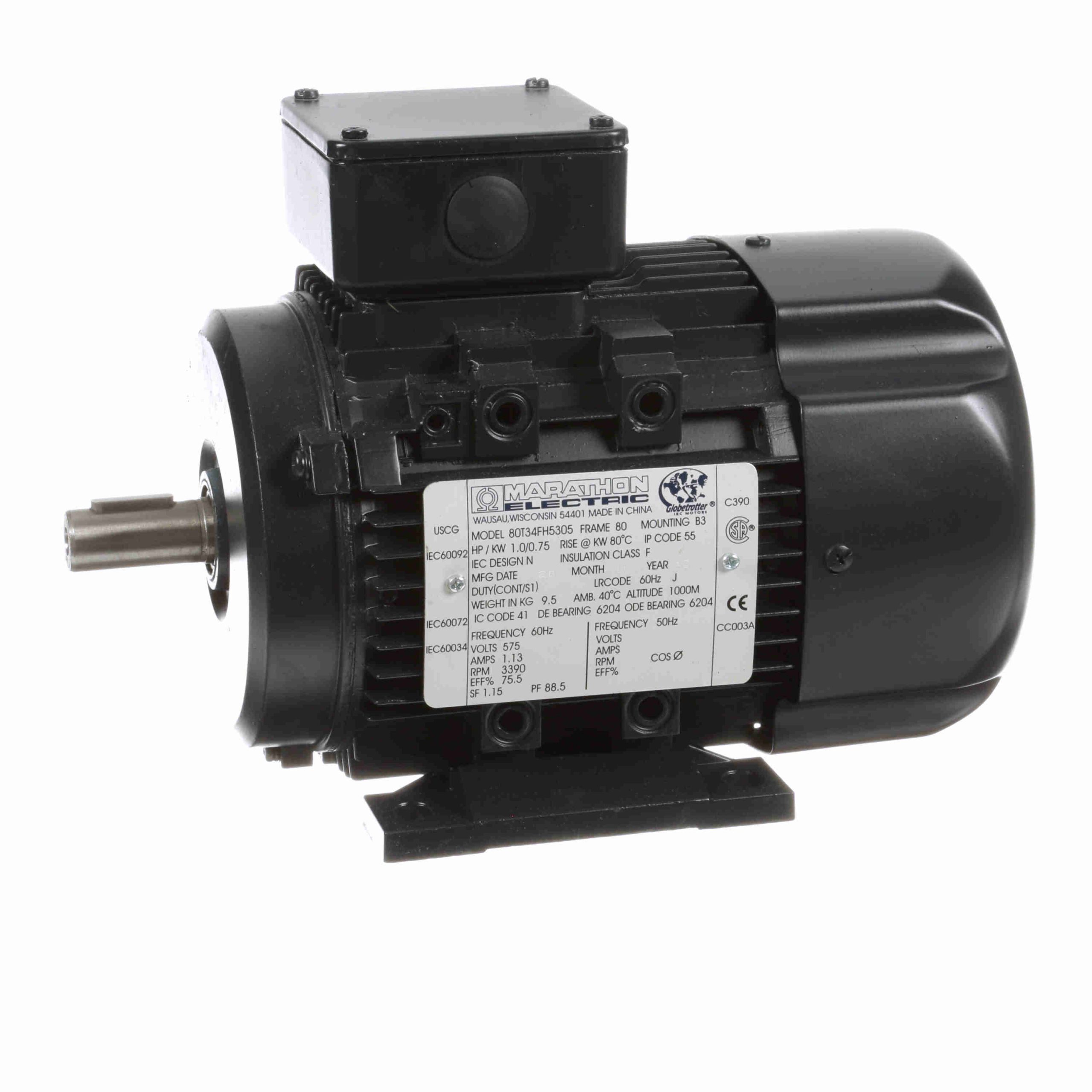

080T34FH5305 – Marathon 1 HP General Purpose Motor, 3 phase, 3600 RPM, 575 V, 80M Frame, TEFC – R412

080T34FH5305 – Marathon 1 HP General Purpose Motor, 3 phase, 3600 RPM, 575 V, 80M Frame, TEFC – R412

080T34FH5305 Marathon Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Meets IE3 European and NEMA Premium® efficiencies
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • Wye Start-Delta Run on 160 Frame and larger
  • 10:1 Variable Torque, Constant Torque speed range as noted
  • Meets IEC 34 electrical standards/ Meets IEC 72 dimensions and tolerances
  • Meets IEEE45, IEC60092 & USCG CFR46 Marine duty (63-90 frame “below deck”)
  • IP55 weatherproof enclosure, Rotatable/Removable Base (63-90 frame)
  • 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD, IEC Design “N” with NEMA “B” Torques
  • Top mounted/oversized gasketed terminal box
  • CE marked

Marathon Motors
Regal Beloit

Original price was: $653.00.Current price is: $157.85.

Description

080T34FH5305 – Marathon 1 HP General Purpose Motor, 3 phase, 3600 RPM, 575 V, 80M Frame, TEFC – R412

080T34FH5305 Marathon Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856026439 Weight: 22 LB
Packaged Length: 13.39 IN Packaged Width: 9.65 IN
Packaged Height: 10.2 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 575 V
Current: 1.1 A Speed: 3390 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 75.5 % Power Factor: 88.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: J
Frame: 80M Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6204 Opp Drive End Bearing Size: 6204
UL: Recognized CSA: N
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Aluminum
Shaft Type: IEC Overall Length: 11.10 in
Frame Length: 5.31 in Shaft Diameter: 0.750 in
Shaft Extension: 1.57 in Assembly/Box Mounting: F3

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 1.13 1.50 100.0 0 1.00
Pull-Up 0.00 4.80 320.0 0 1.00
Locked-Rotor 7.20 5.10 340.0 0 1.00
Break-Down 0.00 5.10 340.0 0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.48 0.00 0.00 0.00 0.00 0.00 0.00
Rated Output (KW) 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Efficiency (%) 0.0 58.0 65.0 74.8 75.5 0.0 0.0
Power Factor (%) 0.0 67.0 78.0 84.4 88.5 0.0 0.0
Speed (RPM) 0 0 0 0 0 0 0
Temp. Rise @ FL 0.0 0.0 0.0 0.0 37.0 0.0 0.0
Torque (ft-lbs) 0.00 0.00 0.00 0.00 0.00 0.00 0.00
