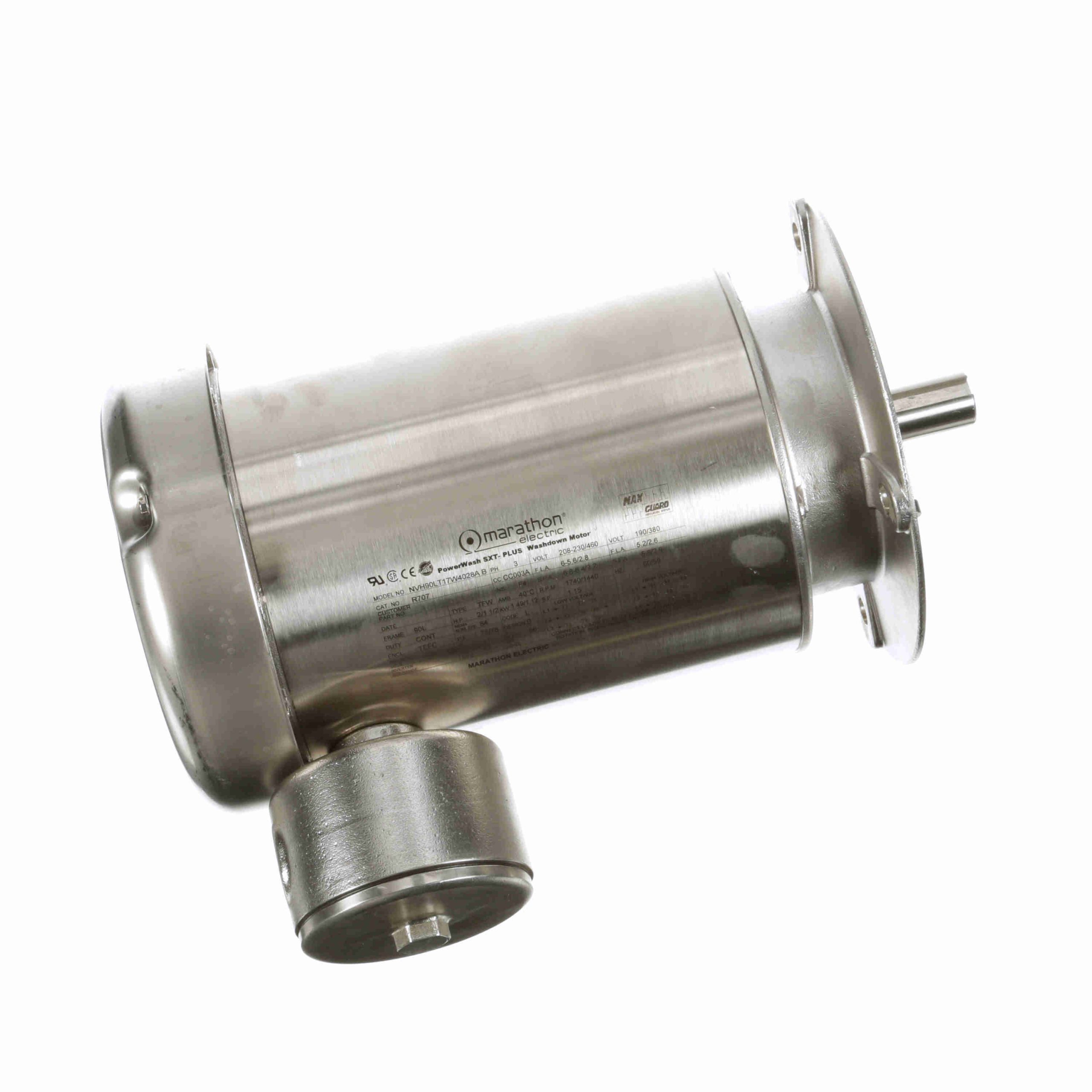

090LT17W4028 – Marathon 2 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 90L Frame, TEFC – R707

090LT17W4028 – Marathon 2 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 90L Frame, TEFC – R707

090LT17W4028 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Suitable for use on VFD, Suitable for 10:1 CT 60 minute duty, otherwise 2:1 CT, 10:1 (TEFC) or 1000:1 (TENV) Constant Torque, 1.0 Service Factor
  • MAX GUARD® Class F insulation system
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Double sealed ball bearings with moisture resistant, high temperature grease
  • 300 Series Stainless steel external construction: frame, endshields, shaft,conduit box, mounting base and hardware for superior corrosion resistance
  • Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator
  • 100% Paint-free construction
  • Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals
  • Hydrophobic breather in OP endshield and conduit box equalize air pressure
  • Will become build-up item when current stock is gone

Marathon Motors
Regal Beloit

Description

090LT17W4028 – Marathon 2 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 90L Frame, TEFC – R707

090LT17W4028 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856031242 Weight: 68 LB
Packaged Length: 14.63 IN Packaged Width: 11.25 IN
Packaged Height: 10.65 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 6.0-5.6/2.8 A Speed: 1740 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 84 % Power Factor: 75
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 90L Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 56

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 7.44 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: IEC Overall Length: 13.34 in
Shaft Diameter: 1.000 in Shaft Extension: 1.97 in
Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 0.0 24.00 400.0 0 0.00 0.0 2.00
Pull-Up 0.00 0.0 19.80 330.0 0 0.00 0.0 2.00
Locked-Rotor 23.00 0.0 20.50 342.0 0 0.00 0.0 2.00
Full Load 2.80 0.0 6.00 100.0 1,735 0.00 0.0 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.40 1.52 1.84 2.25 2.73 3.25 3.82
Rated Output (KW) 0.11 0.46 0.87 1.29 1.74 2.15 2.59
Efficiency (%) 0.0 81.8 86.5 87.2 85.3 85.2 84.0
Power Factor (%) 9.9 38.1 59.5 71.8 80.0 83.0 85.2
Speed (RPM) 1,799 1,786 1,770 1,752 1,735 1,714 1,704
Temp. Rise @ FL 0.0 0.0 0.0 0.0 58.0 0.0 0.0
Torque (ft-lbs) 0.00 1.49 3.00 4.51 6.02 7.52 9.00
