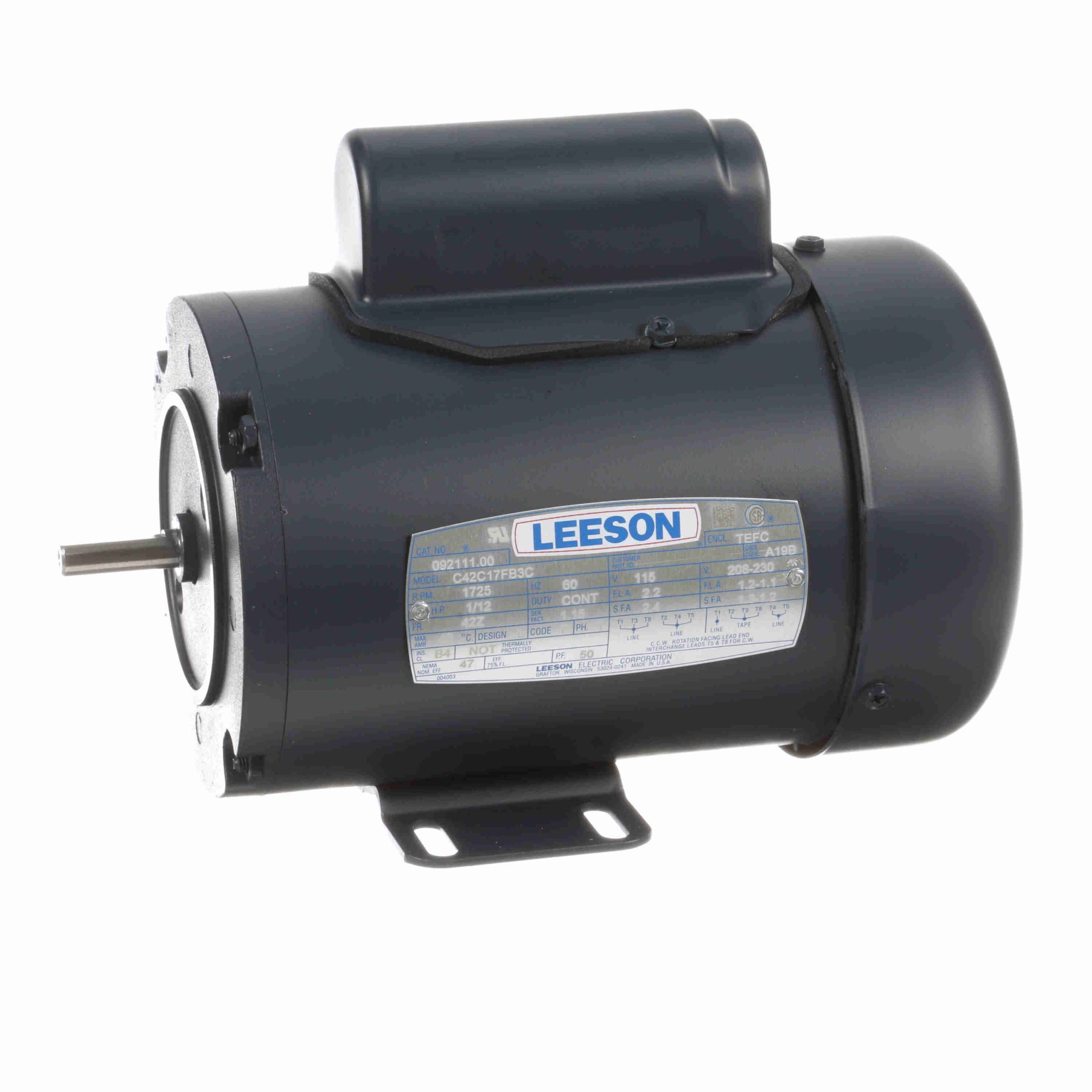

092111.00 – Leeson 0.08 HP General Purpose Motor, 1 phase, 1800 RPM, 115/208-230 V, 42Z Frame, TEFC – 092111.00
092111.00 Leeson Single Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720000724 |
Weight: |
15 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
0.08 Hp |
Output KW: |
0.06 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
2.2/1.2-1.1 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
47 % |
Power Factor: |
50 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
L |
KVA Code: |
P |
| Frame: |
42Z |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
22.24 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
8.94 in |
| Frame Length: |
5.50 in |
Shaft Diameter: |
0.375 in |
| Shaft Extension: |
1.12 in |
Assembly/Box Mounting: |
F1 Only |
