Description

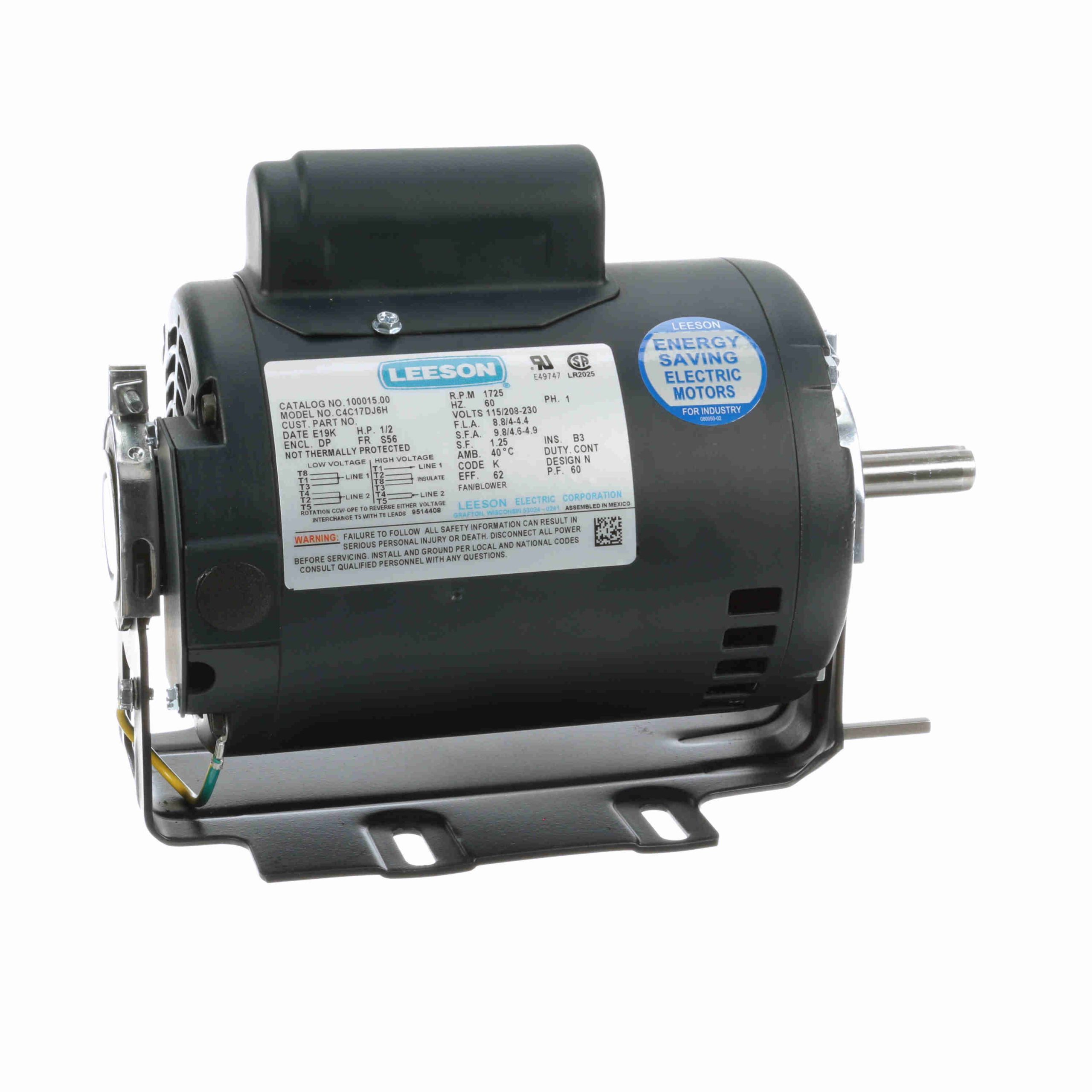

100015.00 – Leeson 0.50 HP General Purpose Motor, 1 phase, 1800 RPM, 115/208-230 V, 56 Frame, ODP – 100015.00
100015.00 Leeson Single Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720004272 |
Weight: |
24 LB |
| Packaged Length: |
13.75 IN |
Packaged Width: |
7.88 IN |
| Packaged Height: |
8.75 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
8.8/4.0-4.4 A |
Speed: |
1725 rpm |
| Service Factor: |
1.25 |
Phase: |
1 |
| Efficiency: |
62 % |
Power Factor: |
60 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
N |
KVA Code: |
K |
| Frame: |
S56 |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
4.36 Ohms |
Mounting: |
Resilient Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
10.81 in |
| Frame Length: |
6.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
4.40 |
|
24.00 |
100.0 |
1,747 |
|
|
0.50 |
| Pull-Up |
0.00 |
|
62.00 |
258.0 |
0 |
|
|
0.50 |
| Break-Down |
0.00 |
|
66.00 |
275.0 |
0 |
|
|
0.50 |
| Locked-Rotor |
19.50 |
|
80.00 |
333.0 |
0 |
|
|
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
4.00 |
3.90 |
4.00 |
4.17 |
4.41 |
4.79 |
5.25 |
| Rated Output (KW) |
0.20 |
0.29 |
0.39 |
0.49 |
0.61 |
0.73 |
0.87 |
| Efficiency (%) |
0.0 |
33.1 |
48.4 |
57.1 |
62.0 |
63.1 |
63.1 |
| Power Factor (%) |
21.4 |
32.0 |
42.4 |
51.4 |
60.1 |
66.4 |
71.7 |
| Speed (RPM) |
1,794 |
1,784 |
1,772 |
1,760 |
1,745 |
1,730 |
1,708 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
56.9 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
6.00 |
12.00 |
18.00 |
24.00 |
30.00 |
36.00 |
