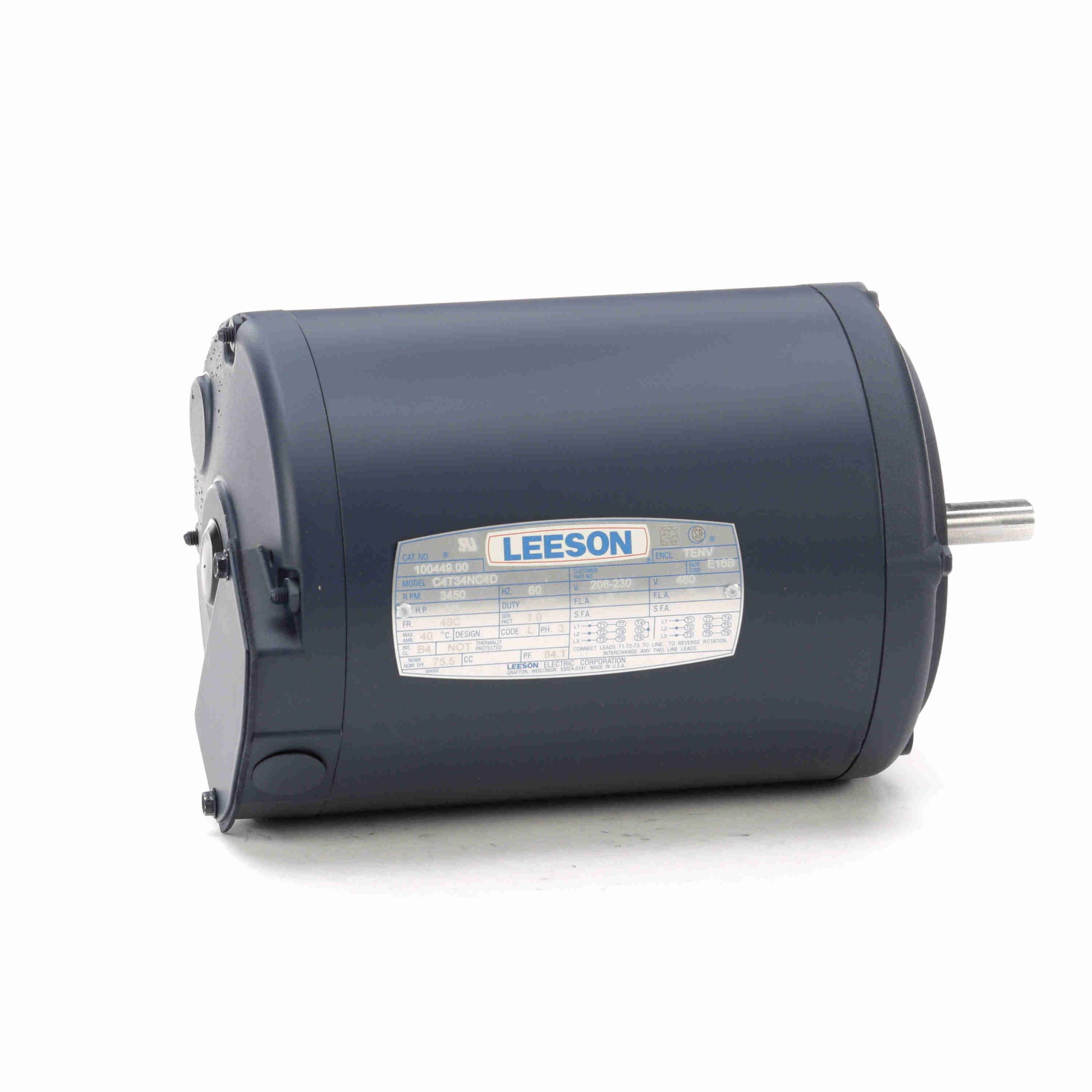

100449.00 – Leeson 0.50 HP General Purpose Motor, 3 phase, 3600 RPM, 208-230/460 V, 48C Frame, TENV – 100449.00
100449.00 Leeson Three Phase TENV Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720004883 |
Weight: |
22 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
7.94 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230/460 V |
| Current: |
1.7-1.6/0.80 A |
Speed: |
3450 rpm |
| Service Factor: |
1 |
Phase: |
3 |
| Efficiency: |
75.5 % |
Power Factor: |
84.1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
No Design Code |
KVA Code: |
L |
| Frame: |
48C |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
0 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 48 |
Overall Length: |
9.81 in |
| Frame Length: |
6.00 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
1.5 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
7.00 |
875.0 |
42.50 |
354.0 |
629 |
4.40 |
78.7 |
0.50 |
| Break-Down |
4.60 |
575.0 |
58.00 |
483.0 |
2,654 |
3.40 |
0.0 |
0.50 |
| Locked-Rotor |
7.20 |
900.0 |
45.20 |
377.0 |
0 |
4.37 |
76.1 |
0.50 |
| Full Load |
0.80 |
100.0 |
12.00 |
100.0 |
3,525 |
0.49 |
83.2 |
0.50 |
Load Characteristics
| % of Rated Load |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
| Current (Amps) |
0.44 |
0.53 |
0.64 |
0.74 |
0.82 |
0.87 |
1.01 |
| Rated Output (KW) |
0.19 |
0.29 |
0.39 |
0.50 |
0.56 |
0.61 |
0.72 |
| Efficiency (%) |
50.1 |
64.7 |
71.8 |
75.4 |
76.7 |
77.1 |
77.5 |
| Power Factor (%) |
53.4 |
68.9 |
78.0 |
83.7 |
85.8 |
87.2 |
89.4 |
| Speed (RPM) |
3,577 |
3,560 |
3,542 |
3,524 |
3,512 |
3,505 |
3,481 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
3.00 |
5.90 |
8.90 |
11.90 |
13.80 |
15.00 |
18.10 |
