Description

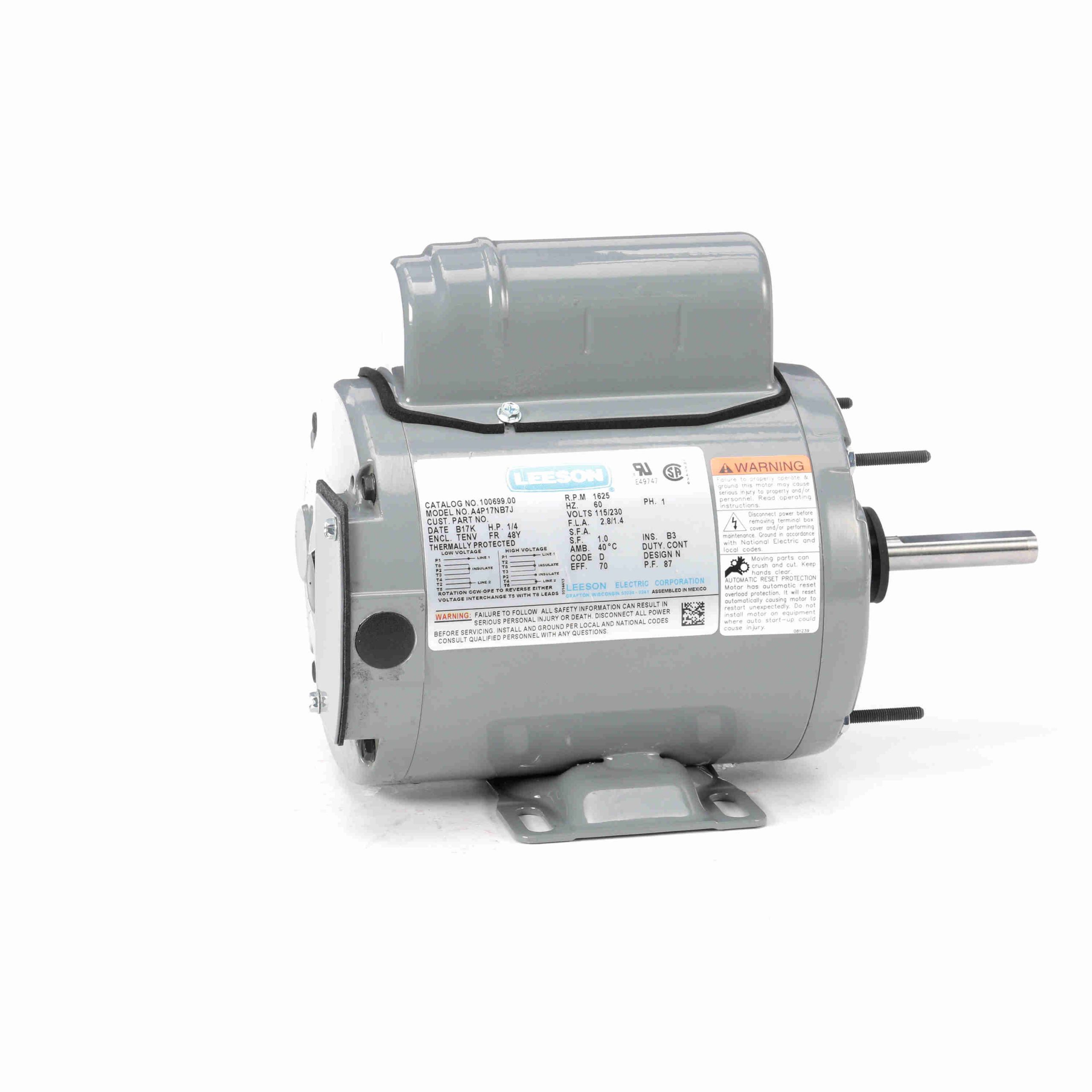

100699.00 – Leeson 0.25 HP Agricultural Motor, 1 phase, 1800 RPM, 115/230 V, 48Y Frame, TENV – 100699.00
100699.00 Leeson Agricultural Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720004999 |
Weight: |
16.00 LB |
| Packaged Length: |
13.75 IN |
Packaged Width: |
7.88 IN |
| Packaged Height: |
8.75 IN |
Nameplate Specifications
| Output HP: |
0.25 Hp |
Output KW: |
0.19 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
2.8/1.4 A |
Speed: |
1625 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
70 % |
Power Factor: |
87 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
N |
KVA Code: |
D |
| Frame: |
48Y |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
9.88 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 48 |
Overall Length: |
10.65 in |
| Frame Length: |
5.50 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
2.5 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
5.00 |
357.0 |
8.00 |
67.0 |
0 |
0.00 |
0.0 |
0.25 |
| Full Load |
1.40 |
100.0 |
12.00 |
100.0 |
0 |
0.00 |
0.0 |
0.25 |
| Pull-Up |
0.00 |
0.0 |
7.50 |
62.0 |
0 |
0.00 |
0.0 |
0.25 |
| Break-Down |
0.00 |
0.0 |
27.00 |
225.0 |
0 |
0.00 |
0.0 |
0.25 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
0.70 |
0.78 |
0.91 |
1.10 |
1.33 |
1.62 |
2.00 |
| Rated Output (KW) |
0.08 |
0.12 |
0.16 |
0.21 |
0.27 |
0.33 |
0.42 |
| Efficiency (%) |
0.0 |
40.7 |
58.1 |
67.2 |
70.1 |
70.3 |
67.4 |
| Power Factor (%) |
47.2 |
64.7 |
76.0 |
83.0 |
87.3 |
89.6 |
90.7 |
| Speed (RPM) |
1,798 |
1,771 |
1,745 |
1,715 |
1,679 |
1,634 |
1,571 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
3.00 |
6.00 |
9.26 |
12.56 |
16.17 |
20.14 |
