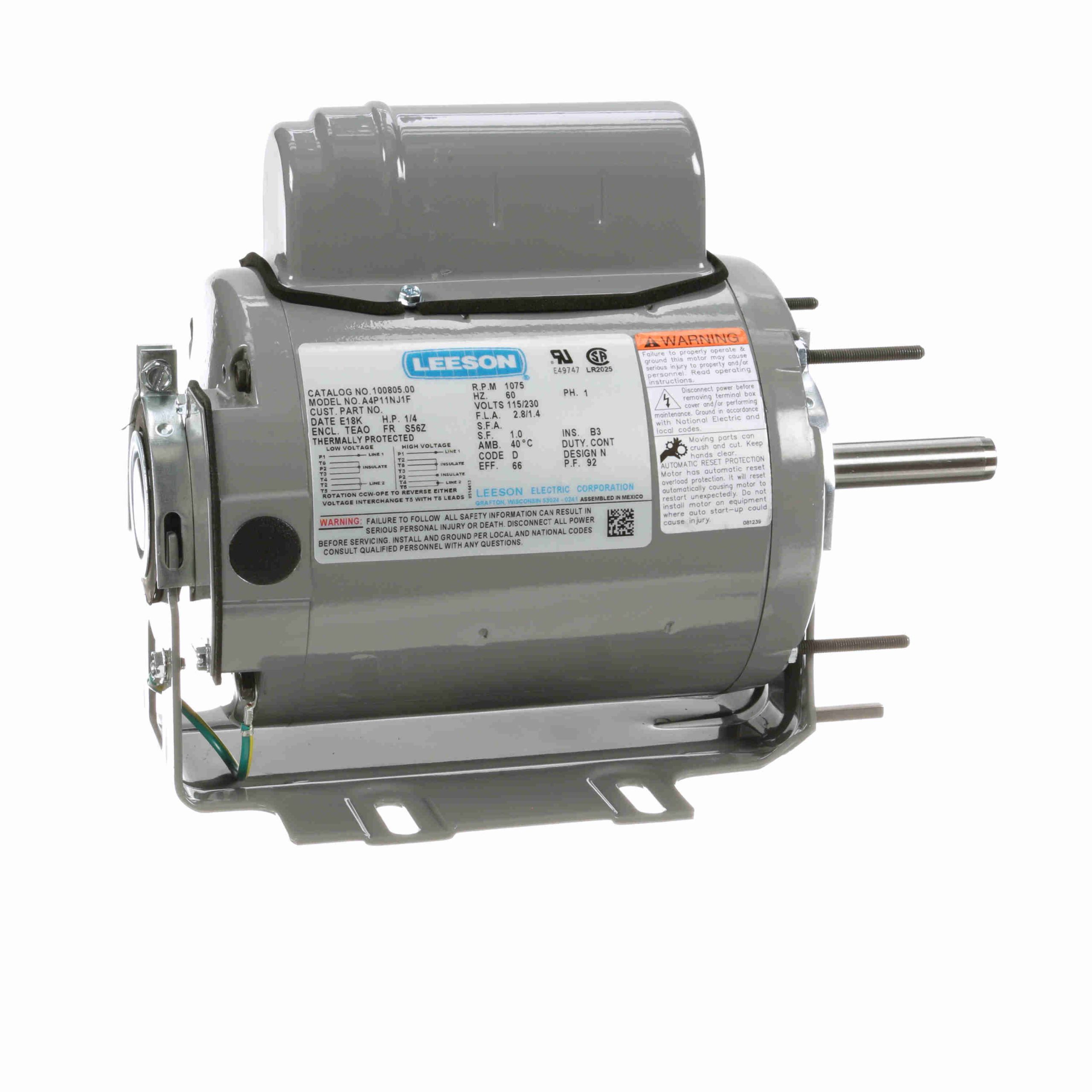

100805.00 – Leeson 0.25 HP Agricultural Motor, 1 phase, 1200 RPM, 115/230 V, 56Z Frame, TEAO – 100805.00

100805.00 Leeson Agricultural Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720005118 Weight: 25 LB
Packaged Length: 13.75 IN Packaged Width: 7.88 IN
Packaged Height: 8.75 IN

Nameplate Specifications

Output HP: 0.25 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 2.8/1.4 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Efficiency: 66 % Power Factor: 92
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: D
Frame: S56Z Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Resilient Ring – Extended Studs
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 11.06 in
Frame Length: 5.50 in Shaft Diameter: 0.625 in
Shaft Extension: 3.12 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 1.34 0.0 18.40 0.0 1,144 0.28 89.9 0.25
Pull-Up 5.11 0.0 10.50 0.0 29 0.92 0.0 0.25
Locked-Rotor 5.10 0.0 11.10 0.0 0 0.92 0.0 0.25
Break-Down 3.39 0.0 41.40 0.0 921 0.70 0.0 0.25

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 % 175 %
Current (Amps) 0.75 0.84 0.97 1.13 1.34 1.58 1.89 2.35
Rated Output (KW) 0.10 0.14 0.18 0.23 0.28 0.34 0.40 0.50
Efficiency (%) 0.0 34.0 51.7 61.9 67.5 69.8 69.2 65.0
Power Factor (%) 57.3 72.2 81.1 86.6 90.1 92.1 93.0 92.9
Speed (RPM) 1,196 1,184 1,173 1,158 1,142 1,123 1,096 1,052
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 4.60 9.00 13.60 18.50 23.50 28.80 35.00
