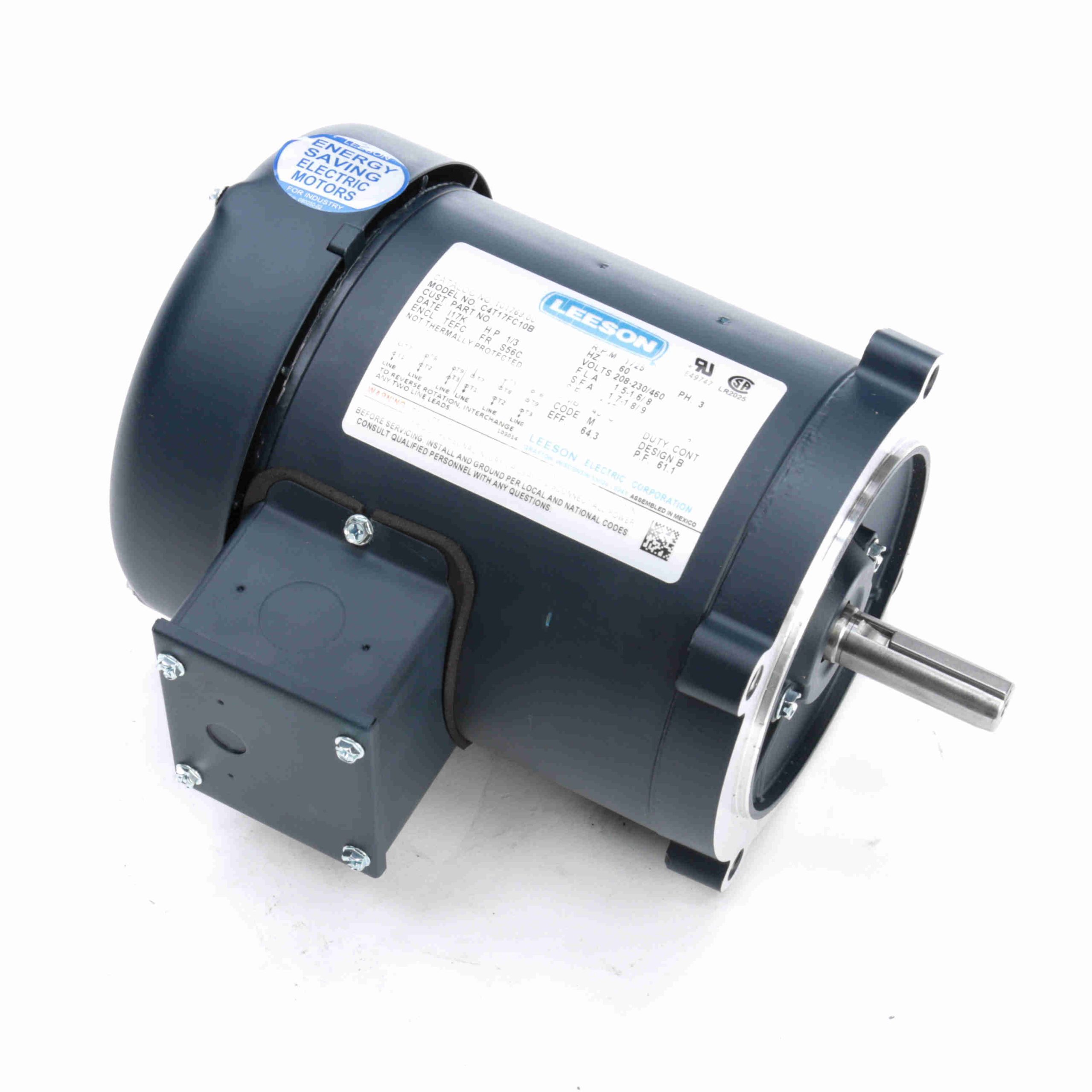

101769.00 – Leeson 0.33 HP General Purpose Motor, 3 phase, 1800 RPM, 208-230/460 V, 56C Frame, TEFC – 101769.00
101769.00 Leeson Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720005989 |
Weight: |
16.00 LB |
| Packaged Length: |
13.75 IN |
Packaged Width: |
7.88 IN |
| Packaged Height: |
8.75 IN |
Nameplate Specifications
| Output HP: |
0.33 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230/460 V |
| Current: |
1.5-1.6/0.80 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
64.3 % |
Power Factor: |
61.1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
B |
KVA Code: |
M |
| Frame: |
S56C |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
13.128 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
9.69 in |
| Frame Length: |
5.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
9.36 |
0.0 |
66.56 |
0.0 |
114 |
2.95 |
0.0 |
0.33 |
| Full Load |
1.73 |
0.0 |
16.03 |
0.0 |
1,754 |
0.38 |
0.0 |
0.33 |
| Locked-Rotor |
9.41 |
0.0 |
67.11 |
0.0 |
0 |
2.96 |
0.0 |
0.33 |
| Break-Down |
6.69 |
0.0 |
82.31 |
0.0 |
1,143 |
2.31 |
0.0 |
0.33 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
175 % |
200 % |
| Current (Amps) |
0.89 |
0.83 |
0.85 |
0.86 |
0.90 |
0.95 |
0.94 |
0.99 |
1.06 |
1.12 |
| Rated Output (KW) |
0.12 |
0.18 |
0.24 |
0.31 |
0.38 |
0.45 |
0.45 |
0.52 |
0.60 |
0.67 |
| Efficiency (%) |
0.0 |
35.5 |
52.0 |
61.0 |
66.0 |
70.0 |
69.1 |
70.5 |
70.9 |
70.8 |
| Power Factor (%) |
17.2 |
27.0 |
35.8 |
44.8 |
52.6 |
65.0 |
59.7 |
65.6 |
70.8 |
75.5 |
| Speed (RPM) |
1,800 |
1,786 |
1,773 |
1,760 |
1,476 |
1,735 |
1,731 |
1,714 |
1,697 |
1,679 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
50.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
4.00 |
8.00 |
12.00 |
16.00 |
20.30 |
20.00 |
24.00 |
28.00 |
32.00 |
Leeson Motors
Regal Beloit
