Description

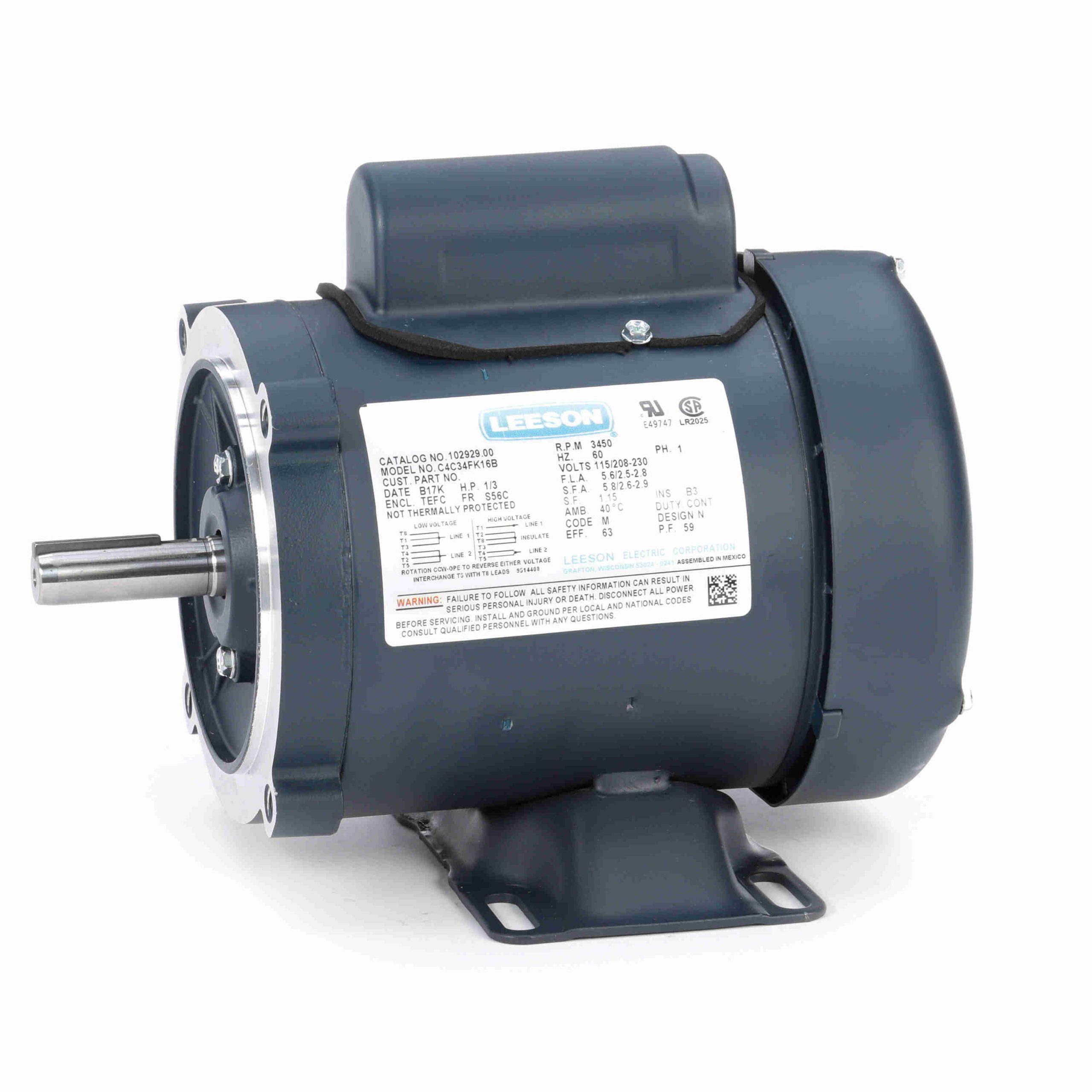

102929.00 – Leeson 0.33 HP General Purpose Motor, 1 phase, 3600 RPM, 115/208-230 V, 56C Frame, TEFC – 102929.00
102929.00 Leeson Single Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720357347 |
Weight: |
17 LB |
| Packaged Length: |
16.12 IN |
Packaged Width: |
10.25 IN |
| Packaged Height: |
9.12 IN |
Nameplate Specifications
| Output HP: |
0.33 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
5.6/2.5-2.8 A |
Speed: |
3450 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
63 % |
Power Factor: |
59 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
N |
KVA Code: |
M |
| Frame: |
S56C |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
5.416 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
9.69 in |
| Frame Length: |
5.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
0.00 |
0.0 |
28.70 |
359.0 |
0 |
0.00 |
0.0 |
0.33 |
| Pull-Up |
0.00 |
0.0 |
24.20 |
303.0 |
0 |
0.00 |
0.0 |
0.33 |
| Locked-Rotor |
16.00 |
0.0 |
26.40 |
330.0 |
0 |
0.00 |
0.0 |
0.33 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
| Current (Amps) |
2.49 |
2.50 |
2.55 |
2.68 |
2.80 |
2.90 |
3.04 |
3.29 |
| Rated Output (KW) |
0.13 |
0.19 |
0.25 |
0.32 |
0.39 |
0.43 |
0.47 |
0.55 |
| Efficiency (%) |
0.0 |
33.5 |
49.5 |
57.8 |
63.3 |
66.6 |
65.1 |
64.9 |
| Power Factor (%) |
22.2 |
32.3 |
42.6 |
51.9 |
59.8 |
64.2 |
66.8 |
72.9 |
| Speed (RPM) |
3,585 |
3,567 |
3,547 |
3,526 |
3,504 |
3,491 |
3,478 |
3,450 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
68.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.97 |
3.93 |
5.91 |
7.84 |
9.20 |
9.84 |
11.70 |
