Description

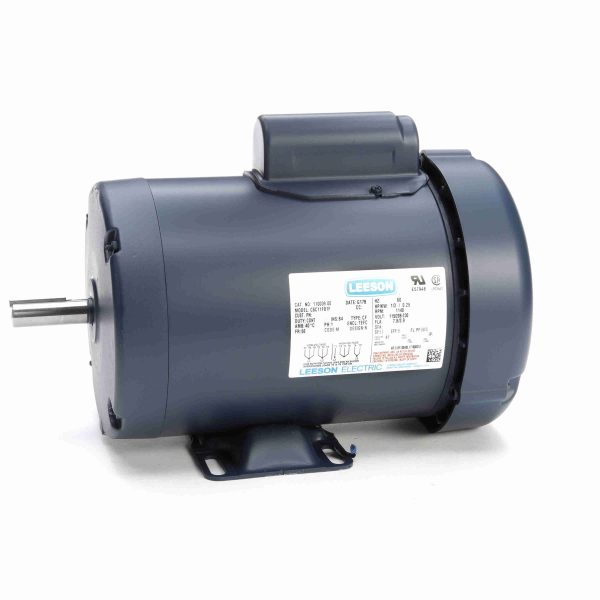

110009.00 – Leeson 0.33 HP General Purpose Motor, 1 phase, 1200 RPM, 115/208-230 V, 56 Frame, TEFC – 110009.00
110009.00 Leeson Single Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720007280 |
Weight: |
31 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
0.33 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
7.8/3.6-3.9 A |
Speed: |
1140 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
57.7 % |
Power Factor: |
50 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
N |
KVA Code: |
M |
| Frame: |
56 |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
4.8 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
12.48 in |
| Frame Length: |
7.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
7.80 |
|
24.00 |
100.0 |
1,171 |
|
|
0.33 |
| Pull-Up |
0.00 |
|
48.00 |
200.0 |
850 |
|
|
0.33 |
| Locked-Rotor |
16.00 |
|
88.00 |
367.0 |
0 |
|
|
0.33 |
| Break-Down |
0.00 |
|
60.00 |
250.0 |
1,050 |
|
|
0.33 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
3.30 |
3.43 |
3.52 |
3.64 |
3.84 |
4.11 |
4.46 |
| Rated Output (KW) |
0.17 |
0.21 |
0.27 |
0.35 |
0.43 |
0.52 |
0.61 |
| Efficiency (%) |
0.0 |
30.5 |
46.1 |
54.3 |
58.0 |
60.0 |
60.2 |
| Power Factor (%) |
22.4 |
26.4 |
33.8 |
41.4 |
48.7 |
54.7 |
59.8 |
| Speed (RPM) |
1,198 |
1,190 |
1,185 |
1,179 |
1,171 |
1,164 |
1,155 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
6.00 |
12.00 |
18.00 |
24.00 |
30.00 |
36.00 |
