Description

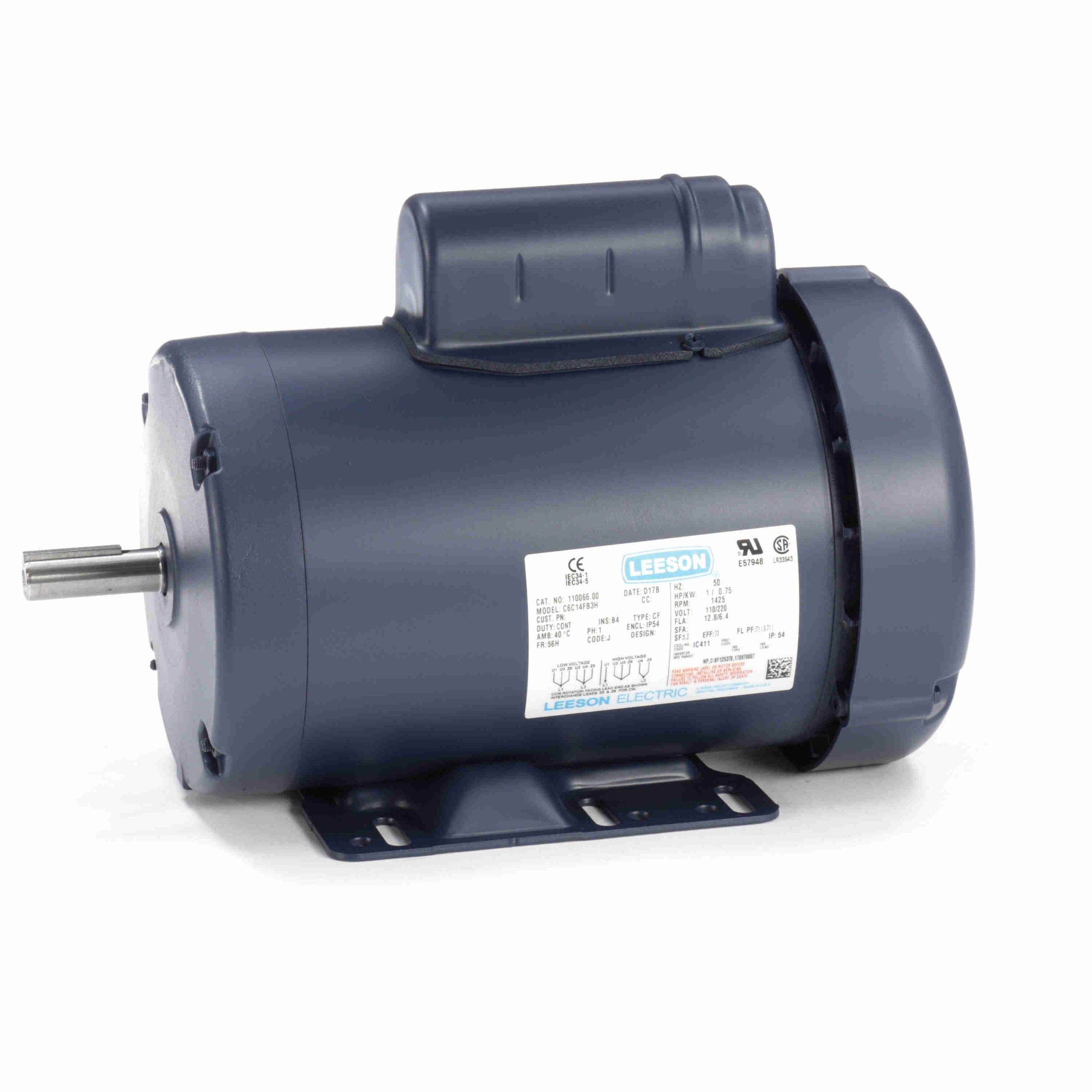

110066.00 – Leeson 1 HP Special Voltage Motor, 1 phase, 1500 RPM, 110/220 V, 56H Frame, TEFC – 110066.00
110066.00 Leeson 50 Hz Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720007761 |
Weight: |
41 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
1 Hp |
Output KW: |
0.75 kW |
| Frequency: |
50 Hz |
Voltage: |
110/220 V |
| Current: |
12.8/6.4 A |
Speed: |
1425 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
73 % |
Power Factor: |
71 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
J |
| Frame: |
56H |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
54 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
2.12 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
12.98 in |
| Frame Length: |
7.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
19.93 |
0.0 |
8.17 |
0.0 |
0 |
2.62 |
0.0 |
1.00 |
| Pull-Up |
19.93 |
0.0 |
4.42 |
0.0 |
0 |
3.94 |
0.0 |
1.00 |
| Locked-Rotor |
28.62 |
0.0 |
9.00 |
0.0 |
0 |
5.72 |
0.0 |
1.00 |
| Full Load |
6.93 |
0.0 |
3.60 |
0.0 |
1,433 |
1.08 |
70.9 |
1.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
175 % |
| Current (Amps) |
4.59 |
4.72 |
5.18 |
5.92 |
6.88 |
8.12 |
9.70 |
12.47 |
| Rated Output (KW) |
0.20 |
0.38 |
0.59 |
0.82 |
1.08 |
1.37 |
1.71 |
2.24 |
| Efficiency (%) |
0.0 |
49.4 |
63.2 |
67.5 |
67.7 |
65.6 |
61.6 |
51.8 |
| Power Factor (%) |
19.5 |
36.9 |
52.0 |
63.2 |
71.3 |
76.6 |
79.9 |
81.7 |
| Speed (RPM) |
1,494 |
1,481 |
1,466 |
1,449 |
1,429 |
1,404 |
1,371 |
1,296 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
64.1 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
0.90 |
1.80 |
2.70 |
3.60 |
4.50 |
5.40 |
6.30 |
