Description

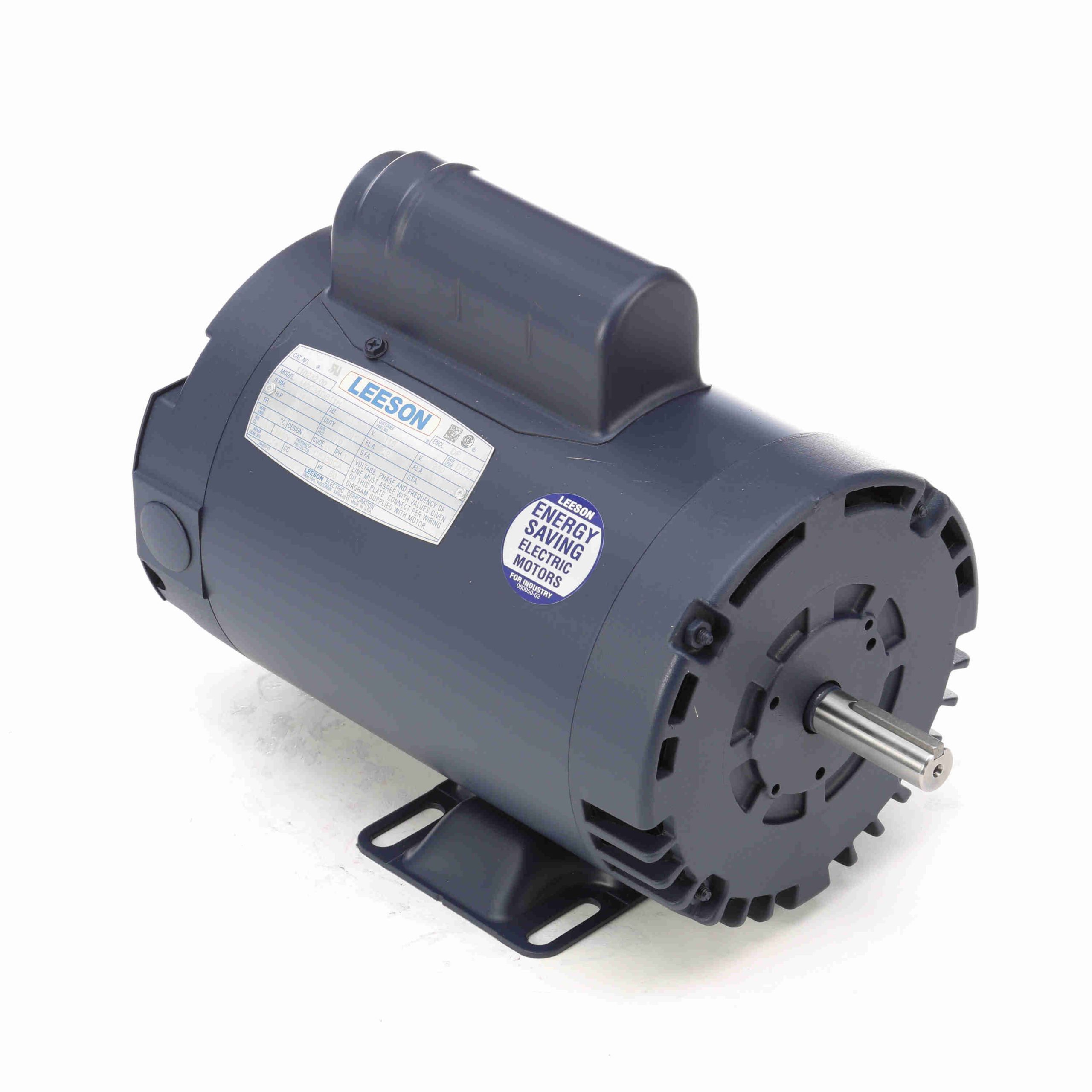

110160.00 – Leeson 1 HP Air Compressor Motor, 1 phase, 3600 RPM, 115/230 V, 56Y Frame, ODP – 110160.00
110160.00 Leeson Air Compressor Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720007969 |
Weight: |
30 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
7.94 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
1 Hp |
Output KW: |
0.75 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
13.4/6.7 A |
Speed: |
3450 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
67 % |
Power Factor: |
72 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
N |
KVA Code: |
K |
| Frame: |
56Y |
Enclosure: |
Drip Proof |
| Thermal Protection: |
Manual |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
1.735 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
11.38 in |
| Frame Length: |
6.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.87 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
45.50 |
700.0 |
4.30 |
287.0 |
0 |
0.00 |
0.0 |
1.00 |
| Break-Down |
0.00 |
0.0 |
5.40 |
360.0 |
0 |
0.00 |
0.0 |
1.00 |
| Full Load |
6.50 |
100.0 |
1.50 |
100.0 |
0 |
0.00 |
0.0 |
1.00 |
| Pull-Up |
0.00 |
0.0 |
3.90 |
260.0 |
0 |
0.00 |
0.0 |
1.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
4.60 |
4.90 |
5.30 |
5.80 |
6.50 |
7.30 |
8.20 |
| Rated Output (KW) |
0.00 |
0.42 |
0.61 |
0.82 |
1.03 |
1.26 |
1.50 |
| Efficiency (%) |
0.0 |
45.9 |
62.3 |
69.3 |
72.9 |
74.3 |
74.7 |
| Power Factor (%) |
0.0 |
36.9 |
50.0 |
61.5 |
69.2 |
75.2 |
79.5 |
| Speed (RPM) |
3,595 |
3,582 |
3,569 |
3,555 |
3,539 |
3,522 |
3,504 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
25.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
0.38 |
0.75 |
1.13 |
1.50 |
1.88 |
2.25 |
