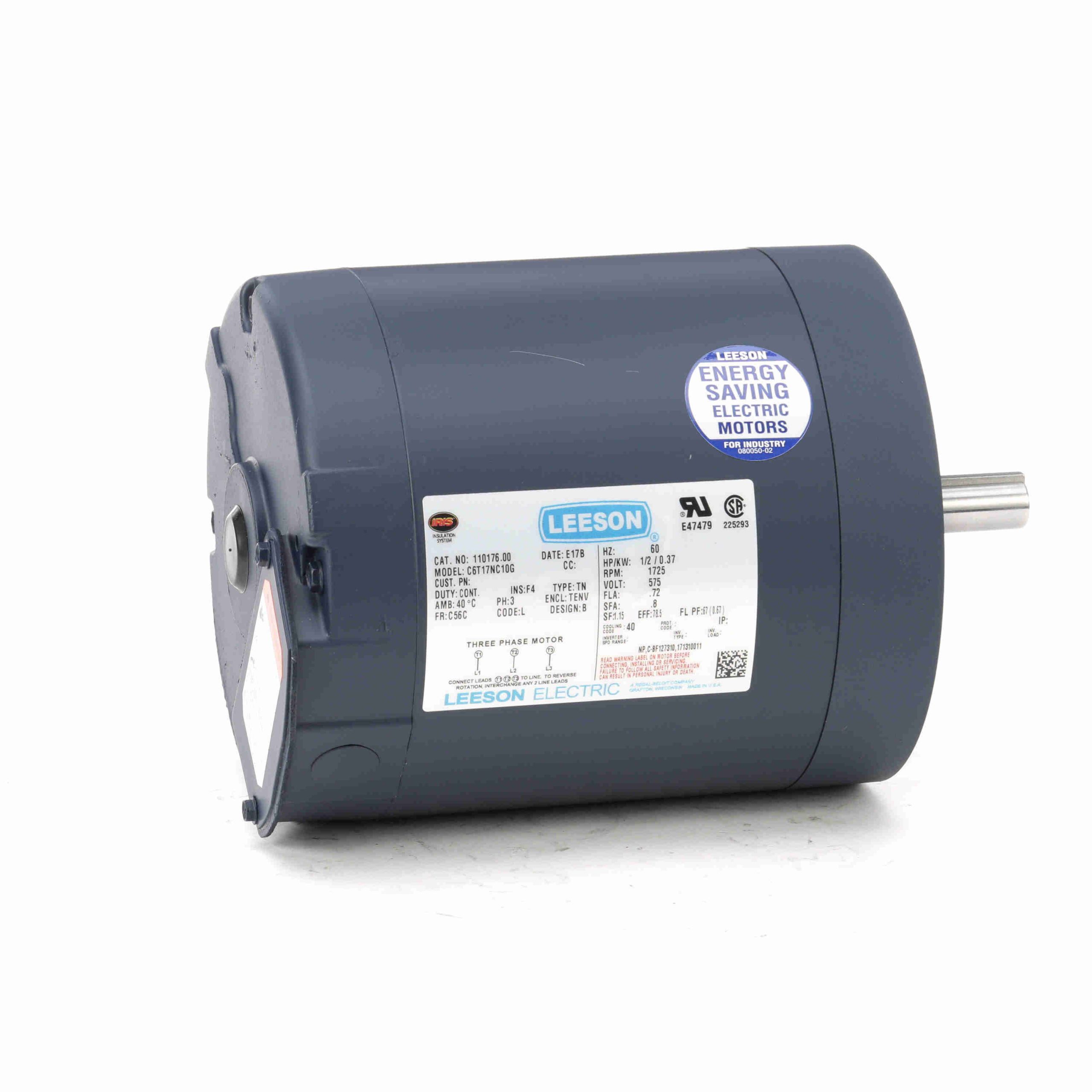

110176.00 – Leeson 0.50 HP Special Voltage Motor, 3 phase, 1800 RPM, 575 V, 56C Frame, TENV – 110176.00
110176.00 Leeson 575 Volts Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720008003 |
Weight: |
23 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
7.94 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
575 V |
| Current: |
0.72 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
78.5 % |
Power Factor: |
67 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
L |
| Frame: |
56C |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
0 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
9.90 in |
| Frame Length: |
5.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
0.00 |
|
97.80 |
408.0 |
0 |
|
|
0.50 |
| Locked-Rotor |
4.85 |
|
72.10 |
300.0 |
0 |
|
|
0.50 |
| Pull-Up |
0.00 |
|
71.40 |
298.0 |
0 |
|
|
0.50 |
| Full Load |
0.72 |
|
24.00 |
100.0 |
0 |
|
|
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
0.53 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
| Rated Output (KW) |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
| Efficiency (%) |
0.0 |
59.0 |
71.0 |
76.4 |
78.5 |
0.0 |
0.0 |
| Power Factor (%) |
0.0 |
29.0 |
44.0 |
56.0 |
67.0 |
0.0 |
0.0 |
| Speed (RPM) |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
Leeson Motors
Regal Beloit
