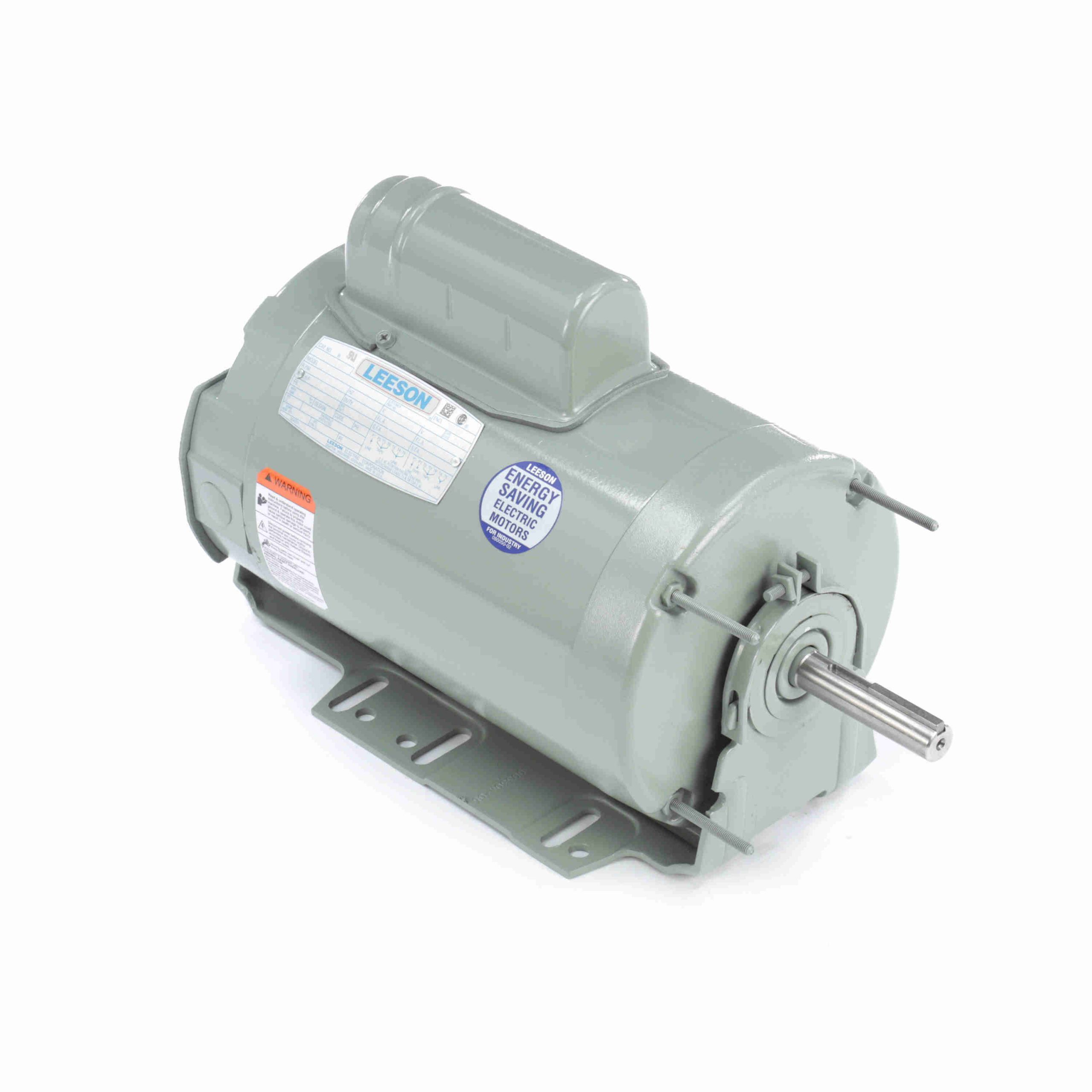

111324.00 – Leeson 0.75 HP Agricultural Motor, 1 phase, 1800 RPM, 115/230 V, 56HZ Frame, TEAO – 111324.00
111324.00 Leeson Agricultural Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720009871 |
Weight: |
37 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
7.94 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
0.75 Hp |
Output KW: |
0.56 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
7.0/3.5 A |
Speed: |
1625 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
72 % |
Power Factor: |
99.5 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
C |
| Frame: |
56HZ |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Resilient Base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
13.10 in |
| Frame Length: |
6.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
2.75 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
14.22 |
0.0 |
18.27 |
0.0 |
0 |
2.46 |
0.0 |
0.75 |
| Break-Down |
9.07 |
0.0 |
74.57 |
0.0 |
1,421 |
1.88 |
0.0 |
0.75 |
| Pull-Up |
14.18 |
0.0 |
17.64 |
0.0 |
136 |
2.46 |
0.0 |
0.75 |
| Full Load |
3.38 |
0.0 |
36.73 |
0.0 |
1,718 |
0.78 |
0.0 |
0.75 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
1.18 |
1.66 |
2.18 |
2.74 |
3.37 |
4.15 |
5.33 |
| Rated Output (KW) |
0.24 |
0.36 |
0.49 |
0.63 |
0.78 |
0.95 |
1.20 |
| Efficiency (%) |
0.0 |
39.0 |
57.0 |
66.9 |
72.2 |
73.5 |
70.5 |
| Power Factor (%) |
0.0 |
94.4 |
97.7 |
99.5 |
99.5 |
99.6 |
97.8 |
| Speed (RPM) |
1,795 |
1,777 |
1,762 |
1,742 |
1,716 |
1,682 |
1,627 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
8.94 |
17.91 |
27.21 |
36.77 |
46.90 |
58.65 |
