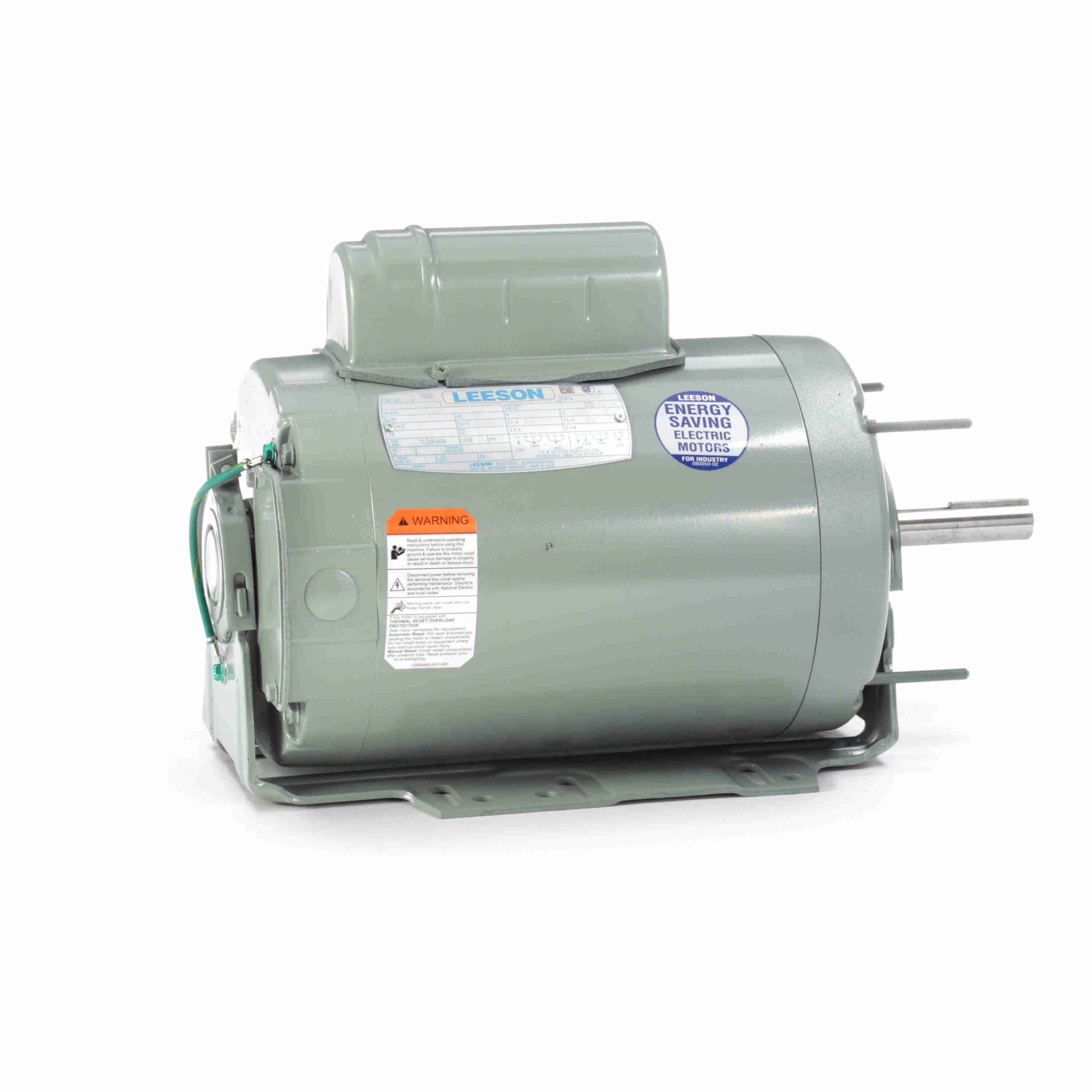

111919.00 – Leeson 0.50 HP Agricultural Motor, 1 phase, 900 RPM, 115/230 V, 56HZ Frame, TEAO – 111919.00
111919.00 Leeson Agricultural Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720010143 |
Weight: |
43 LB |
| Packaged Length: |
19.5 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
6.4/3.2 A |
Speed: |
825 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
57.5 % |
Power Factor: |
82 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
C |
| Frame: |
56HZ |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
8 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Resilient Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
13.60 in |
| Frame Length: |
7.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
2.75 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
0.00 |
0.0 |
18.80 |
52.0 |
25 |
0.00 |
0.0 |
0.50 |
| Full Load |
3.41 |
100.0 |
36.20 |
100.0 |
855 |
0.00 |
0.0 |
0.50 |
| Locked-Rotor |
8.36 |
245.0 |
21.50 |
59.0 |
0 |
0.00 |
0.0 |
0.50 |
| Break-Down |
0.00 |
0.0 |
74.90 |
207.0 |
771 |
0.00 |
0.0 |
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
2.38 |
2.39 |
2.60 |
2.93 |
3.41 |
3.80 |
4.17 |
| Rated Output (KW) |
0.24 |
0.36 |
0.44 |
0.53 |
0.64 |
0.73 |
0.80 |
| Efficiency (%) |
0.0 |
26.0 |
42.5 |
52.9 |
58.0 |
59.1 |
58.1 |
| Power Factor (%) |
43.5 |
65.1 |
73.2 |
78.3 |
82.0 |
83.1 |
83.7 |
| Speed (RPM) |
894 |
889 |
881 |
869 |
855 |
843 |
829 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
11.80 |
23.80 |
36.20 |
49.10 |
57.30 |
63.40 |
