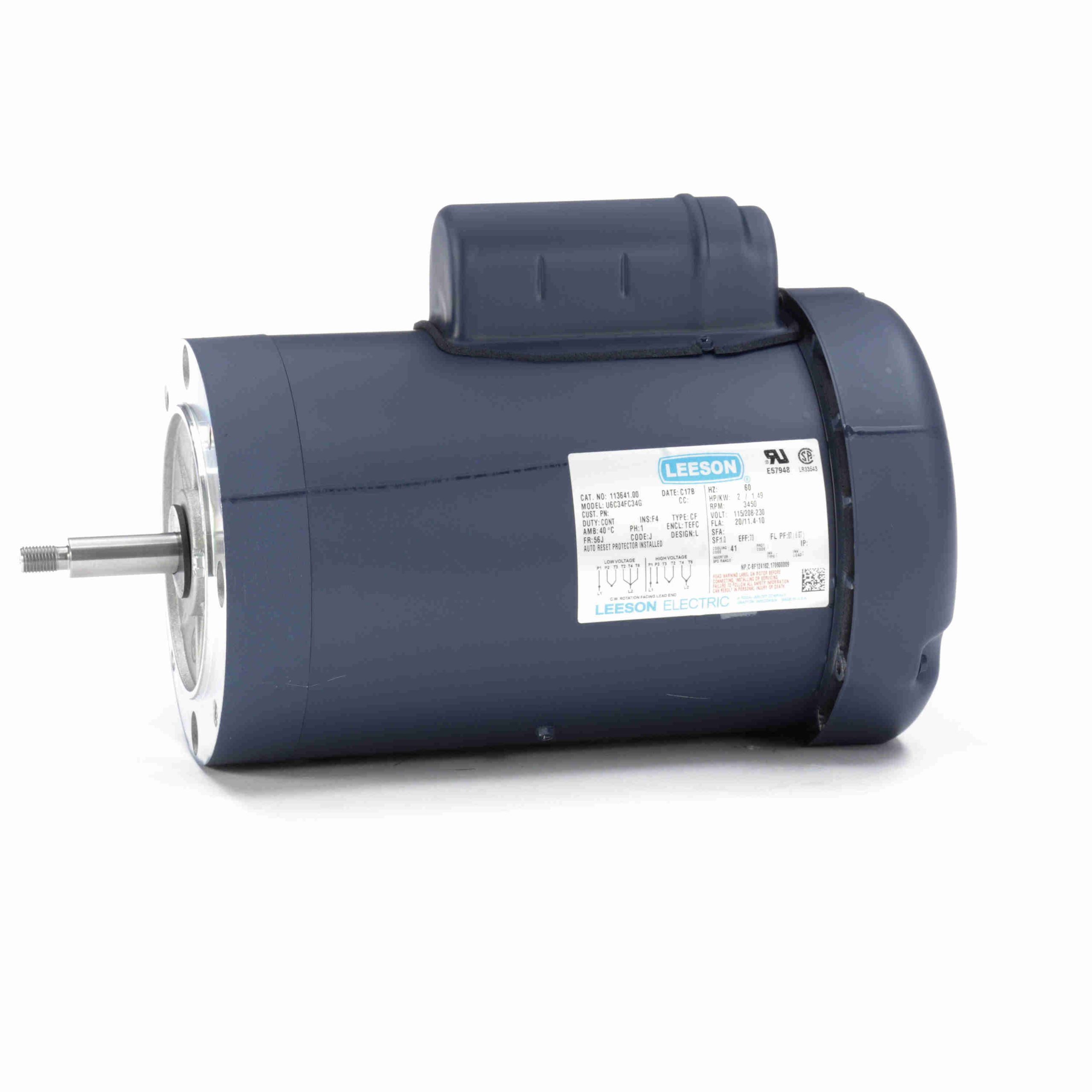

113641.00 – Leeson 2 HP Jet Pump Motor, 1 phase, 3600 RPM, 115/208-230 V, 56J Frame, TEFC – 113641.00

113641.00 – Leeson 2 HP Jet Pump Motor, 1 phase, 3600 RPM, 115/208-230 V, 56J Frame, TEFC – 113641.00

113641.00 Leeson Jet Pump Motors

  • NEMA 56 C face mounting flange
  • Keyed shafts made of carbon steel
  • Dual rotation – Key shaft motors only
  • Quiet flow-through ventilation system
  • Double sealed bearings on shaft end
  • Terminal board with quick connects
  • Locked shaft-end bearings
  • UL recognized and CSA certified

Leeson Motors
Regal Beloit

Description

113641.00 – Leeson 2 HP Jet Pump Motor, 1 phase, 3600 RPM, 115/208-230 V, 56J Frame, TEFC – 113641.00

113641.00 Leeson Jet Pump Motors

General Specifications

UPC: 691720012314 Weight: 44 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 20.0/11.4-10.0 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 73 % Power Factor: 87
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: J
Frame: 56J Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Fixed Clockwise
Resistance Main: .92 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: J Overall Length: 13.78 in
Frame Length: 8.00 in Shaft Diameter: 0.625 in
Shaft Extension: 2.44 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 64.40 7.50 250.0 0 2.00
Full Load 10.00 3.00 100.0 3,503 2.00
Pull-Up 0.00 7.00 233.0 2,400 2.00
Break-Down 0.00 7.80 260.0 3,000 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 4.50 5.20 6.47 8.25 10.22 12.96 16.06
Rated Output (KW) 0.27 0.64 1.07 1.55 2.05 2.37 3.32
Efficiency (%) 0.0 59.9 71.0 72.9 73.0 78.0 65.9
Power Factor (%) 26.1 53.2 71.8 81.7 87.0 79.4 89.7
Speed (RPM) 3,598 3,577 3,556 3,532 3,503 3,467 3,415
Temp. Rise @ FL 0.0 0.0 0.0 0.0 90.0 0.0 0.0
Torque (ft-lbs) 0.00 0.75 1.50 2.25 3.00 3.75 4.50
