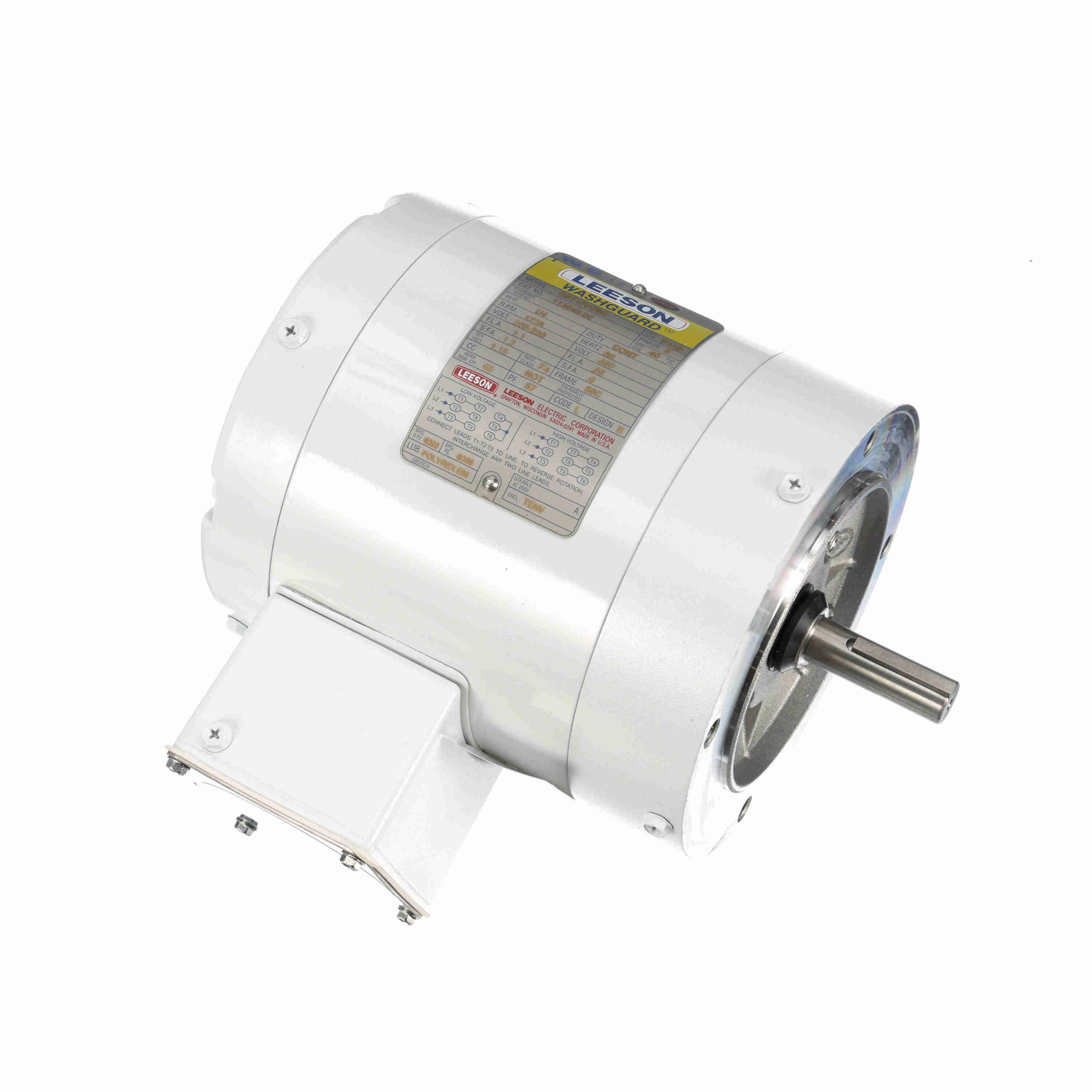

113649.00 – Leeson 0.25 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 56C Frame, TENV – 113649.00
113649.00 Leeson White Epoxy General Purpose Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720012376 |
Weight: |
22 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
0.25 Hp |
Output KW: |
0.19 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230/460 V |
| Current: |
1.1/0.55 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
68 % |
Power Factor: |
57 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
L |
| Frame: |
56C |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
20.15 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
9.56 in |
| Frame Length: |
4.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
0.00 |
|
51.90 |
433.0 |
0 |
|
|
0.25 |
| Pull-Up |
0.00 |
|
30.50 |
254.0 |
0 |
|
|
0.25 |
| Full Load |
1.10 |
|
12.00 |
100.0 |
1,765 |
|
|
0.25 |
| Locked-Rotor |
6.20 |
|
31.80 |
265.0 |
0 |
|
|
0.25 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
0.42 |
0.43 |
0.45 |
0.48 |
0.53 |
0.58 |
0.64 |
| Rated Output (KW) |
0.05 |
0.09 |
0.15 |
0.20 |
0.25 |
0.31 |
0.37 |
| Efficiency (%) |
0.0 |
51.3 |
67.0 |
71.5 |
74.3 |
74.8 |
75.3 |
| Power Factor (%) |
14.0 |
26.9 |
40.4 |
52.3 |
60.5 |
67.9 |
73.7 |
| Speed (RPM) |
1,798 |
1,793 |
1,784 |
1,775 |
1,765 |
1,755 |
1,744 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
46.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
2.93 |
6.13 |
9.07 |
12.00 |
14.93 |
18.13 |
