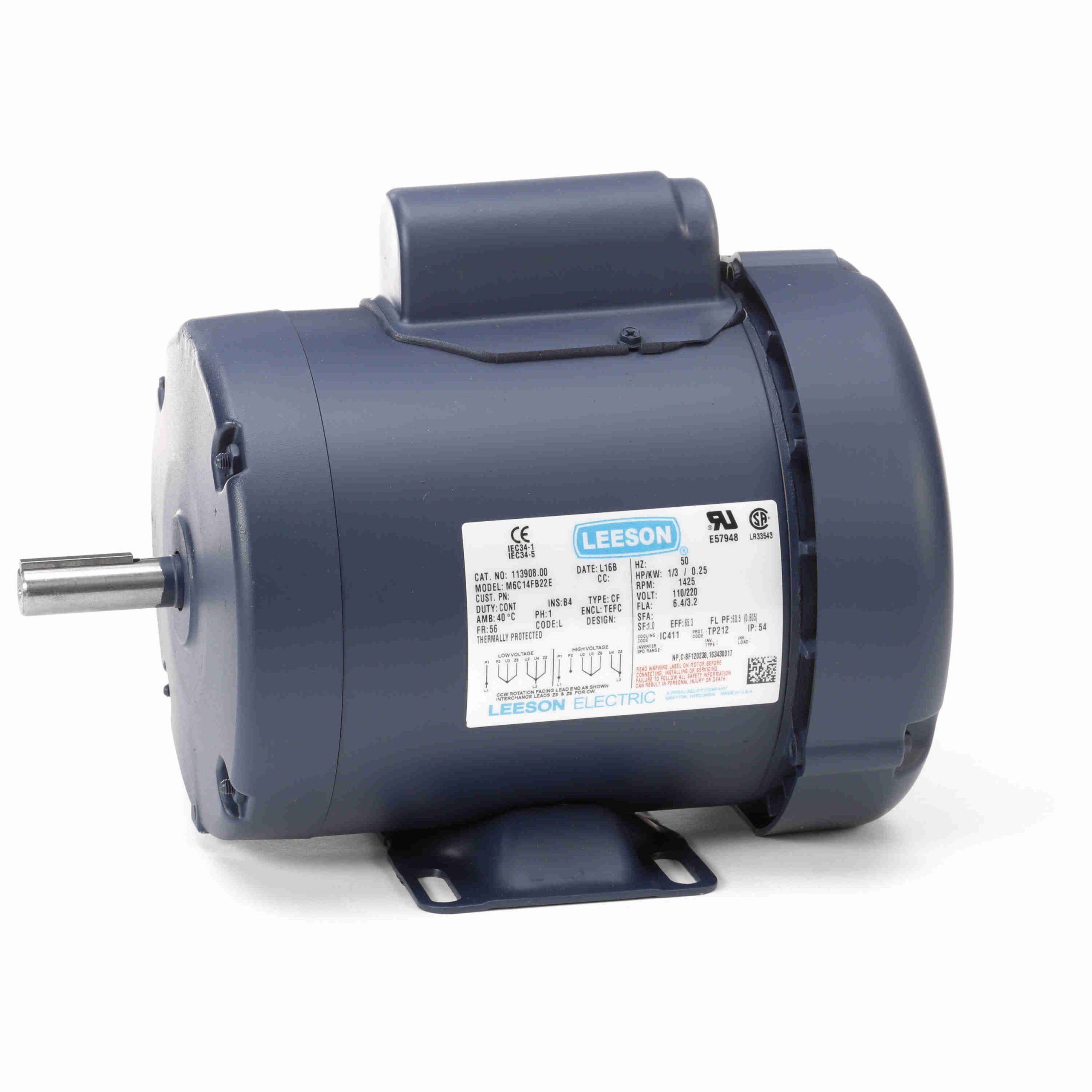

113908.00 – Leeson 0.33 HP Special Voltage Motor, 1 phase, 1500 RPM, 110/220 V, 56 Frame, TEFC – 113908.00

113908.00 – Leeson 0.33 HP Special Voltage Motor, 1 phase, 1500 RPM, 110/220 V, 56 Frame, TEFC – 113908.00

113908.00 Leeson 50 Hz Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • High efficiency energy saving designs
  • Centrifugal switch designed for 50 Hz service
  • High torque

Leeson Motors
Regal Beloit

Original price was: $970.00.Current price is: $691.42.

Description

113908.00 – Leeson 0.33 HP Special Voltage Motor, 1 phase, 1500 RPM, 110/220 V, 56 Frame, TEFC – 113908.00

113908.00 Leeson 50 Hz Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720012680 Weight: 23 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 50 Hz Voltage: 110/220 V
Current: 6.4/3.2 A Speed: 1425 rpm
Service Factor: 1 Phase: 1
Efficiency: 65.3 % Power Factor: 60.5
Duty: Continuous Insulation Class: B
Design Code: NO DESIGN CODE KVA Code: L
Frame: 56 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 54

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 10.98 in
Frame Length: 5.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 3.05 0.0 19.30 0.0 1,454 0.38 56.7 0.33
Locked-Rotor 14.90 0.0 73.46 0.0 0 2.80 0.0 0.33
Break-Down 7.70 0.0 57.30 0.0 0 1.30 0.0 0.33
Pull-Up 7.00 0.0 56.72 0.0 0 1.40 0.0 0.33

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 % 175 % 200 %
Current (Amps) 2.62 2.62 2.71 2.85 3.05 3.31 3.64 4.06 4.58
Rated Output (KW) 0.10 0.16 0.23 0.31 0.38 0.46 0.55 0.66 0.78
Efficiency (%) 0.0 37.4 53.4 61.3 65.1 66.9 67.3 66.3 64.0
Power Factor (%) 17.5 28.5 39.1 48.6 56.8 63.6 69.1 73.5 77.1
Speed (RPM) 1,500 1,487 1,476 1,465 1,454 1,440 1,425 1,407 1,382
Temp. Rise @ FL 0.0 0.0 0.0 0.0 33.2 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 4.72 9.56 14.43 19.29 24.32 29.53 34.87 40.55
