Description

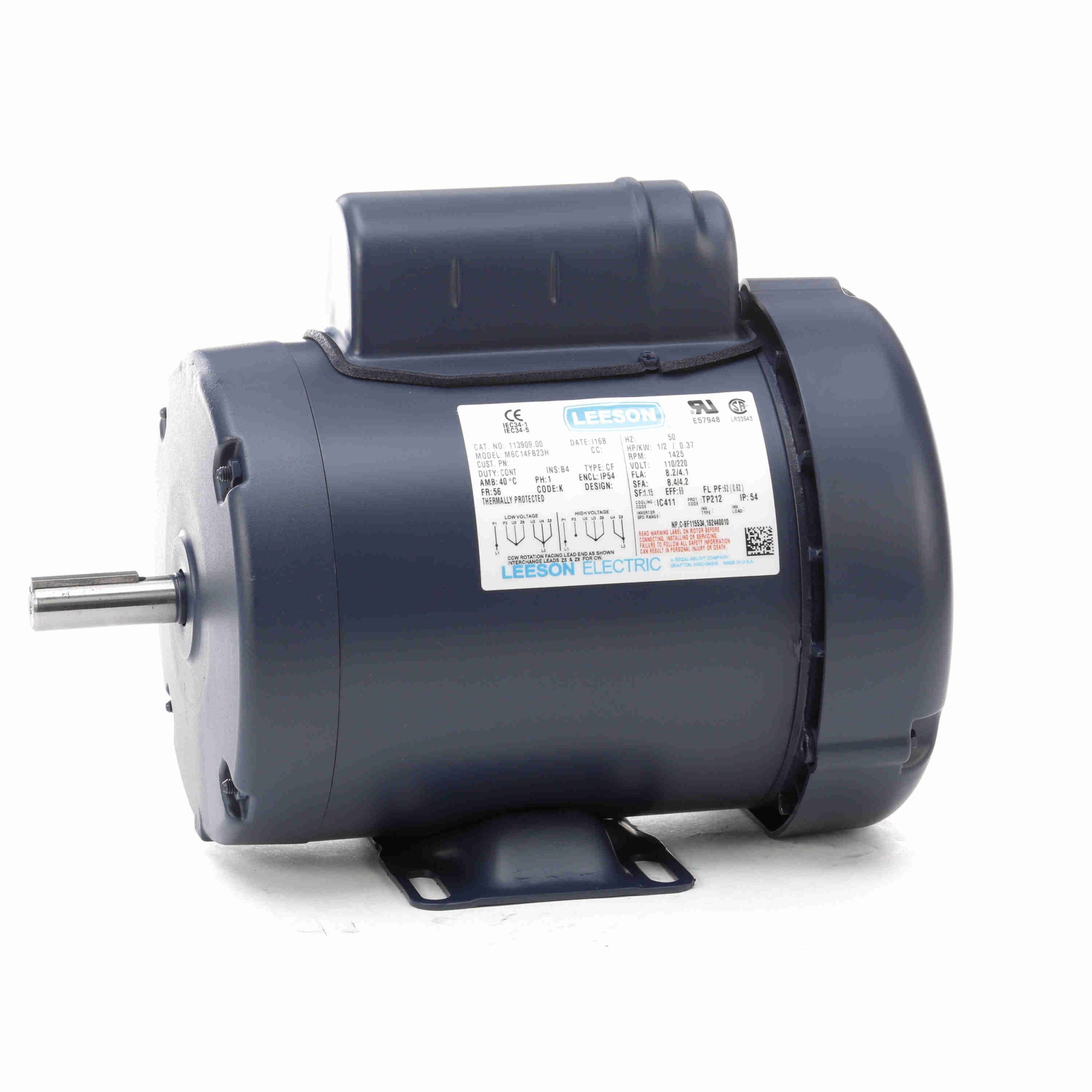

113909.00 – Leeson 0.50 HP Special Voltage Motor, 1 phase, 1500 RPM, 110/220 V, 56 Frame, TEFC – 113909.00
113909.00 Leeson 50 Hz Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720012697 |
Weight: |
32 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
50 Hz |
Voltage: |
110/220 V |
| Current: |
8.2/4.1 A |
Speed: |
1425 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
69 % |
Power Factor: |
62 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
No Design Code |
KVA Code: |
K |
| Frame: |
56 |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
Manual |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
54 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
11.48 in |
| Frame Length: |
6.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
0.00 |
0.0 |
52.00 |
217.0 |
0 |
0.00 |
0.0 |
0.50 |
| Break-Down |
0.00 |
0.0 |
56.00 |
233.0 |
0 |
0.00 |
0.0 |
0.50 |
| Locked-Rotor |
19.00 |
0.0 |
85.00 |
354.0 |
0 |
0.00 |
0.0 |
0.50 |
| Full Load |
3.50 |
0.0 |
24.00 |
100.0 |
1,725 |
0.00 |
0.0 |
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
| Current (Amps) |
3.42 |
3.44 |
3.60 |
3.86 |
4.20 |
4.50 |
4.69 |
5.31 |
| Rated Output (KW) |
0.15 |
0.25 |
0.34 |
0.46 |
0.58 |
0.66 |
0.72 |
0.87 |
| Efficiency (%) |
0.0 |
37.7 |
54.1 |
61.2 |
64.5 |
64.7 |
65.2 |
64.7 |
| Power Factor (%) |
19.4 |
32.8 |
43.5 |
53.8 |
62.5 |
67.0 |
69.2 |
74.0 |
| Speed (RPM) |
1,498 |
1,483 |
1,473 |
1,459 |
1,444 |
1,433 |
1,425 |
1,405 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
40.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
7.10 |
14.24 |
21.59 |
29.10 |
33.71 |
36.84 |
44.84 |
