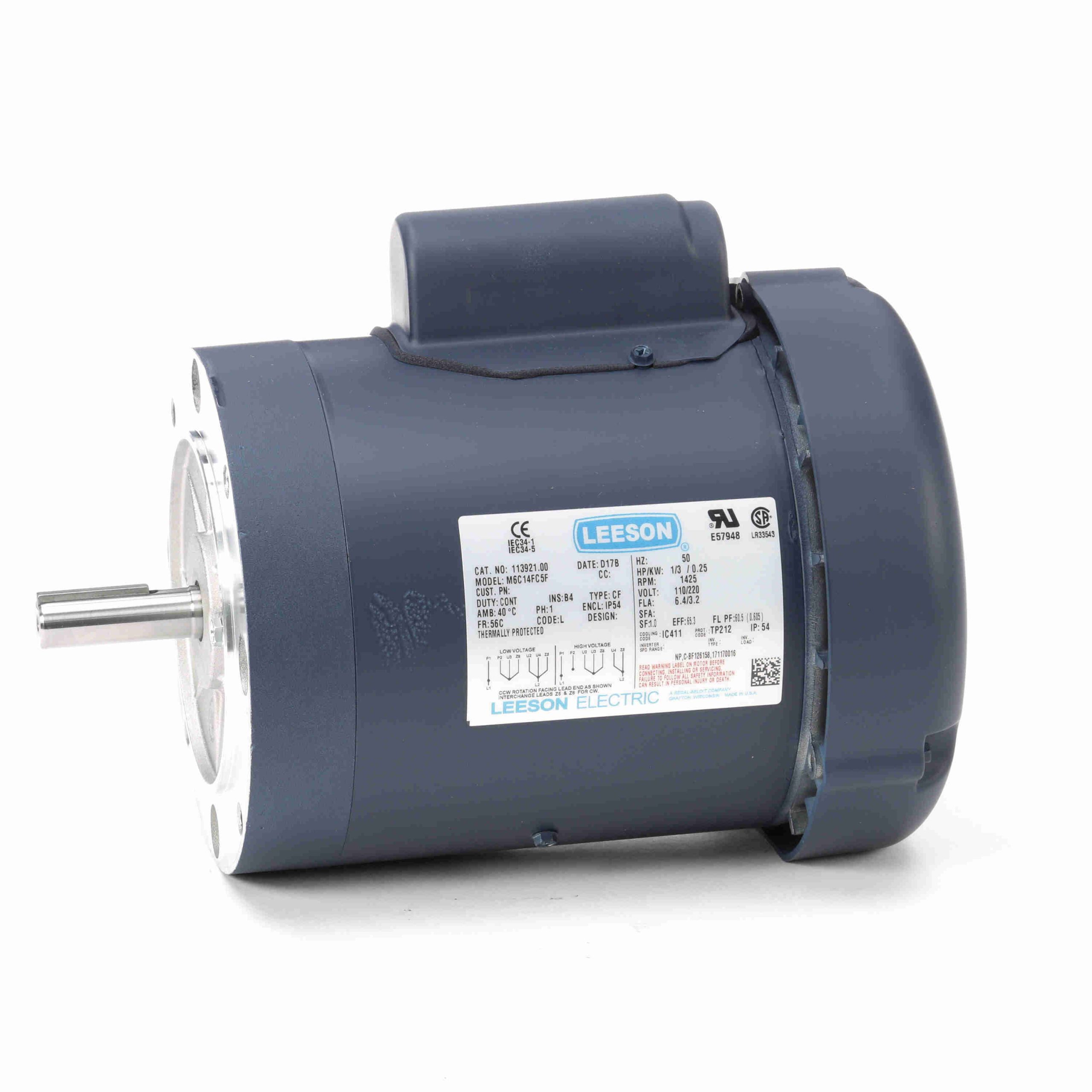

113921.00 – Leeson 0.33 HP Special Voltage Motor, 1 phase, 1500 RPM, 110/220 V, 56C Frame, TEFC – 113921.00
113921.00 Leeson 50 Hz Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720012833 |
Weight: |
24 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
0.33 Hp |
Output KW: |
0.25 kW |
| Frequency: |
50 Hz |
Voltage: |
110/220 V |
| Current: |
6.4/3.2 A |
Speed: |
1425 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
65.3 % |
Power Factor: |
60.5 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
No Design Code |
KVA Code: |
L |
| Frame: |
56C |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
Manual |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
54 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
10.98 in |
| Frame Length: |
5.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
3.05 |
0.0 |
19.30 |
0.0 |
1,454 |
0.38 |
56.7 |
0.33 |
| Locked-Rotor |
14.90 |
0.0 |
73.46 |
0.0 |
0 |
2.80 |
0.0 |
0.33 |
| Break-Down |
7.70 |
0.0 |
57.30 |
0.0 |
0 |
1.30 |
0.0 |
0.33 |
| Pull-Up |
7.00 |
0.0 |
56.72 |
0.0 |
0 |
1.40 |
0.0 |
0.33 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
175 % |
200 % |
| Current (Amps) |
2.62 |
2.62 |
2.71 |
2.85 |
3.05 |
3.31 |
3.64 |
4.06 |
4.58 |
| Rated Output (KW) |
0.10 |
0.16 |
0.23 |
0.31 |
0.38 |
0.46 |
0.55 |
0.66 |
0.78 |
| Efficiency (%) |
0.0 |
37.4 |
53.4 |
61.3 |
65.1 |
66.9 |
67.3 |
66.3 |
64.0 |
| Power Factor (%) |
17.5 |
28.5 |
39.1 |
48.6 |
56.8 |
63.6 |
69.1 |
73.5 |
77.1 |
| Speed (RPM) |
1,500 |
1,487 |
1,476 |
1,465 |
1,454 |
1,440 |
1,425 |
1,407 |
1,382 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
33.2 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
4.72 |
9.56 |
14.43 |
19.29 |
24.32 |
29.53 |
34.87 |
40.55 |
