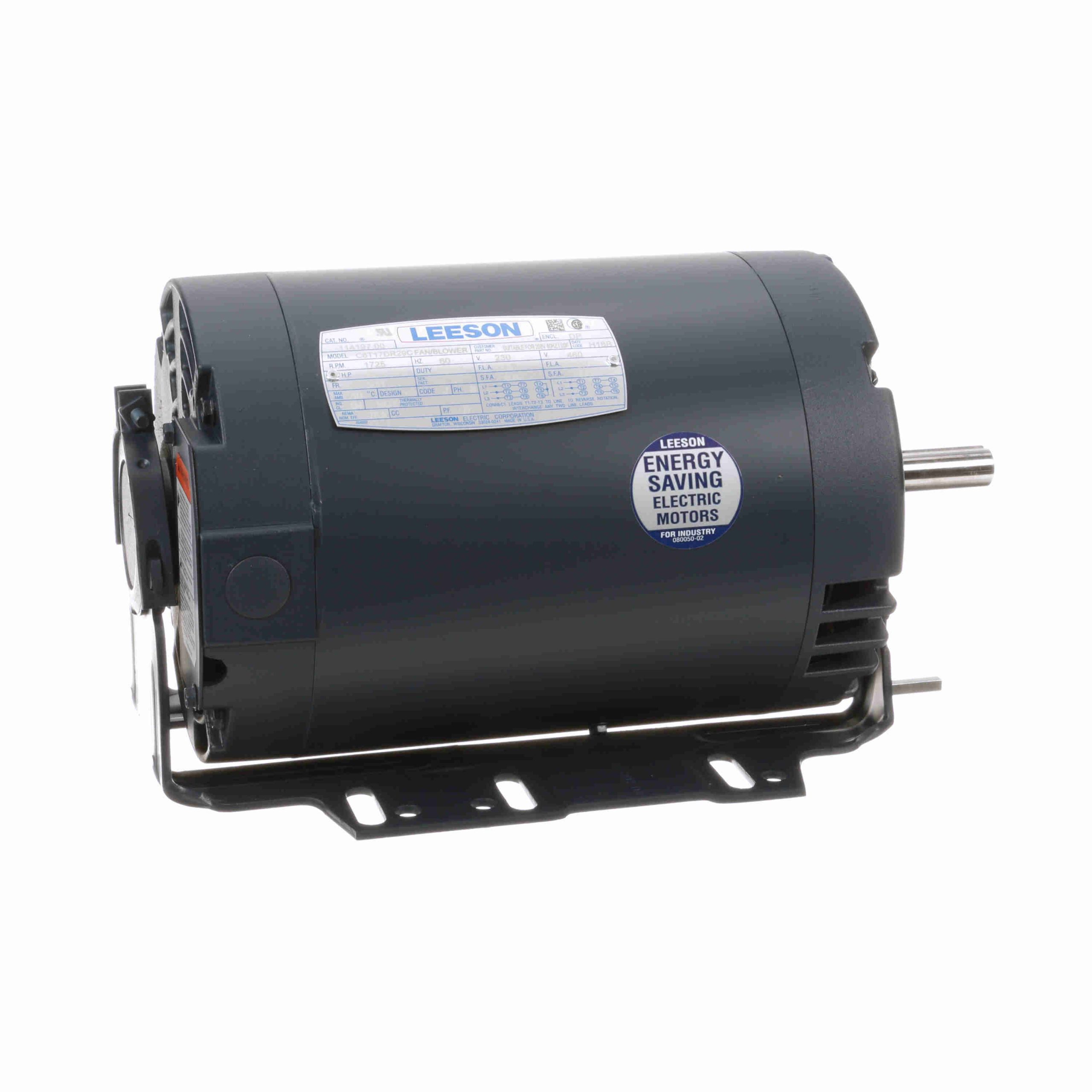

114197.00 – Leeson 2 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56H Frame, ODP – 114197.00
114197.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720013489 |
Weight: |
40 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
7.94 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
6.2/3.1 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
78.5 % |
Power Factor: |
77 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
C |
KVA Code: |
J |
| Frame: |
56H |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
9.04 Ohms |
Mounting: |
Resilient Base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
12.32 in |
| Frame Length: |
6.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
0.00 |
0.0 |
17.00 |
283.0 |
0 |
0.00 |
0.0 |
2.00 |
| Locked-Rotor |
20.80 |
0.0 |
17.20 |
287.0 |
0 |
0.00 |
0.0 |
2.00 |
| Break-Down |
0.00 |
0.0 |
21.35 |
356.0 |
0 |
0.00 |
0.0 |
2.00 |
| Full Load |
3.10 |
0.0 |
6.00 |
100.0 |
0 |
0.00 |
0.0 |
2.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
2.00 |
2.08 |
2.35 |
2.70 |
3.12 |
3.65 |
4.17 |
| Rated Output (KW) |
0.38 |
0.56 |
1.00 |
1.40 |
1.82 |
2.28 |
2.70 |
| Efficiency (%) |
0.0 |
67.9 |
76.0 |
80.1 |
81.2 |
80.3 |
80.1 |
| Power Factor (%) |
23.8 |
33.9 |
53.5 |
65.0 |
73.3 |
78.2 |
81.3 |
| Speed (RPM) |
1,799 |
1,792 |
1,786 |
1,752 |
1,734 |
1,715 |
1,693 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
80.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.50 |
3.00 |
4.50 |
6.00 |
7.50 |
9.00 |
