Description

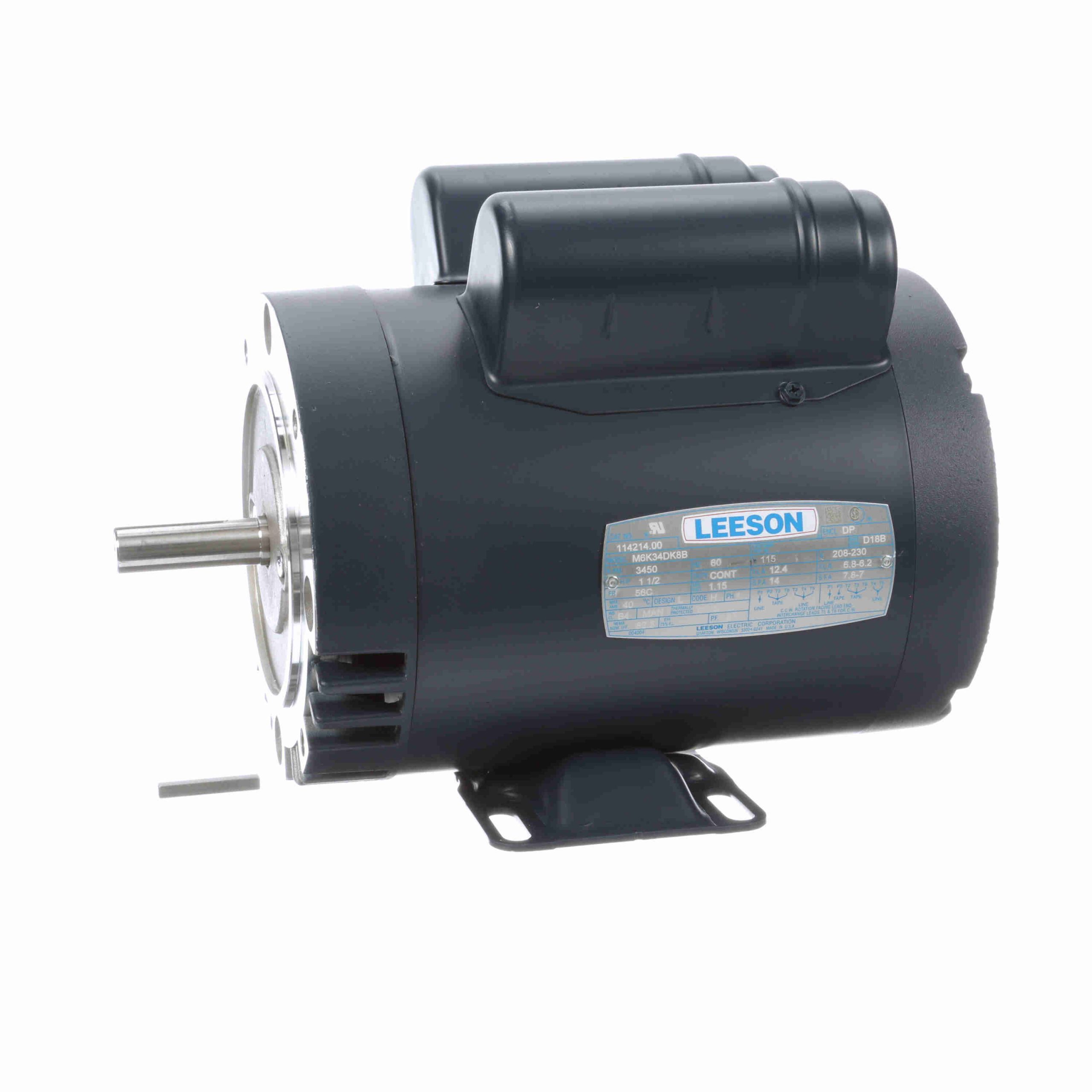

114214.00 – Leeson 1.50 HP Pressure Washers Motor, 1 phase, 3600 RPM, 115/208-230 V, 56C Frame, ODP – 114214.00
114214.00 Leeson Pressure Washer Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720013595 |
Weight: |
38 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
7.94 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
1.50 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
12.4/6.8-6.2 A |
Speed: |
3450 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
82.5 % |
Power Factor: |
96 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
L |
KVA Code: |
H |
| Frame: |
56C |
Enclosure: |
Drip Proof |
| Thermal Protection: |
Manual |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
1.36 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
11.34 in |
| Frame Length: |
6.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
45.00 |
|
4.90 |
218.0 |
0 |
|
|
1.50 |
| Break-Down |
0.00 |
|
6.90 |
307.0 |
3,100 |
|
|
1.50 |
| Full Load |
6.20 |
|
2.25 |
100.0 |
3,495 |
|
|
1.50 |
| Pull-Up |
0.00 |
|
4.80 |
213.0 |
2,600 |
|
|
1.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
1.38 |
2.27 |
3.32 |
4.63 |
6.13 |
7.50 |
9.11 |
| Rated Output (KW) |
0.19 |
0.46 |
0.71 |
1.01 |
1.35 |
1.67 |
2.02 |
| Efficiency (%) |
0.0 |
62.5 |
79.8 |
83.4 |
82.6 |
83.2 |
81.3 |
| Power Factor (%) |
58.9 |
88.7 |
93.5 |
95.2 |
96.0 |
96.6 |
96.5 |
| Speed (RPM) |
3,598 |
3,572 |
3,548 |
3,522 |
3,495 |
3,462 |
3,424 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
32.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
0.57 |
1.13 |
1.69 |
2.25 |
2.82 |
3.38 |
