Description

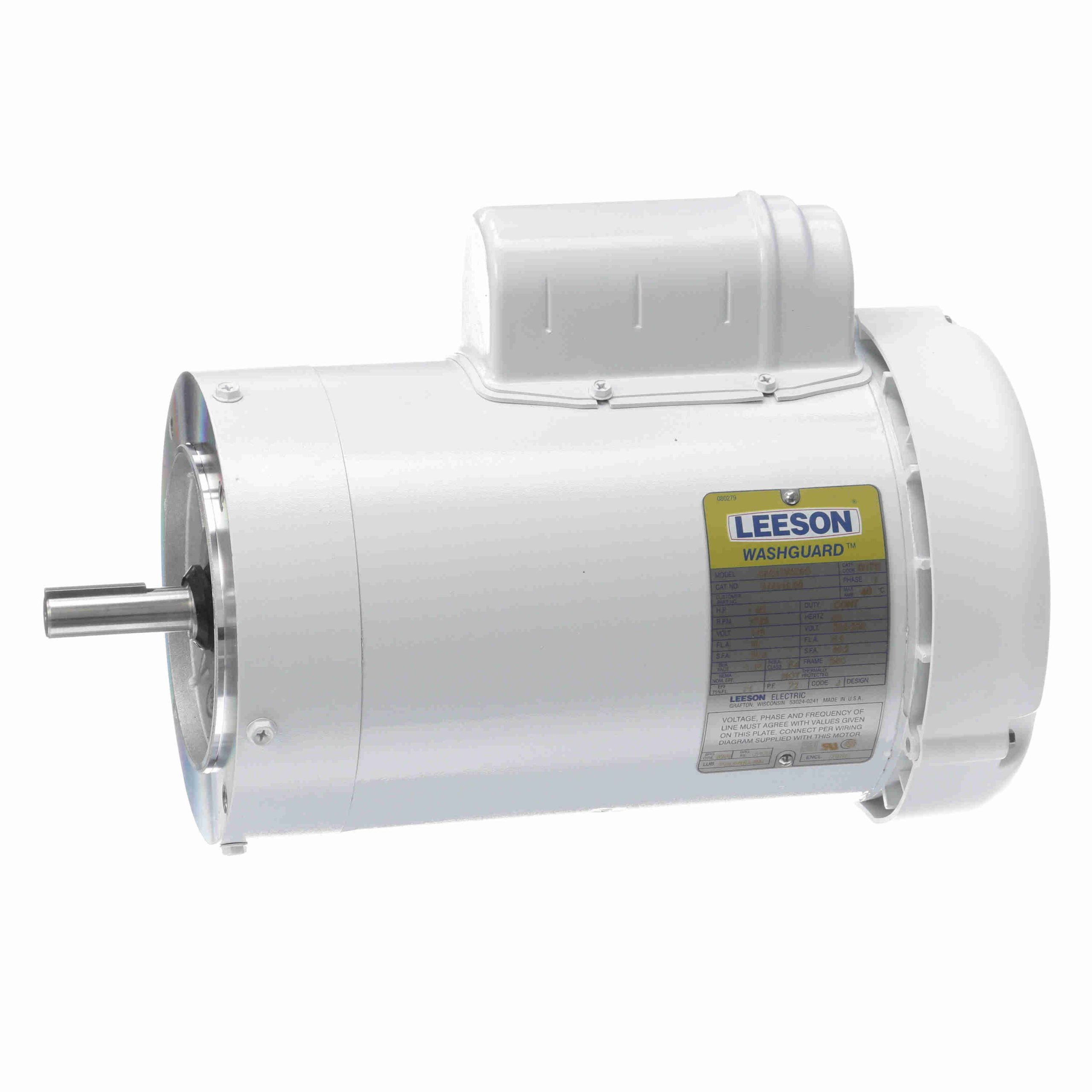

114319.00 – Leeson 1.50 HP Washdown Motor, 1 phase, 1800 RPM, 115/208-230 V, 56C Frame, TEFC – 114319.00
114319.00 Leeson White Epoxy General Purpose Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720013892 |
Weight: |
46 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
1.50 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
19.0/9.5 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
71 % |
Power Factor: |
72 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
No Design Code |
KVA Code: |
J |
| Frame: |
56C |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
13.37 in |
| Frame Length: |
7.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
31.72 |
318.0 |
150.00 |
278.0 |
1,500 |
6.32 |
0.0 |
1.50 |
| Pull-Up |
42.05 |
422.0 |
81.00 |
150.0 |
1,175 |
7.01 |
0.0 |
1.50 |
| Locked-Rotor |
50.95 |
512.0 |
150.00 |
278.0 |
0 |
9.76 |
0.0 |
1.50 |
| Full Load |
9.96 |
100.0 |
54.00 |
100.0 |
1,749 |
1.62 |
0.0 |
1.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
6.29 |
6.55 |
7.35 |
8.40 |
9.72 |
11.35 |
13.34 |
| Rated Output (KW) |
0.27 |
0.58 |
0.90 |
1.23 |
1.58 |
1.98 |
2.43 |
| Efficiency (%) |
0.0 |
48.9 |
62.7 |
68.5 |
70.4 |
69.9 |
67.3 |
| Power Factor (%) |
18.9 |
38.7 |
53.4 |
63.7 |
70.8 |
75.6 |
79.0 |
| Speed (RPM) |
1,795 |
1,783 |
1,771 |
1,759 |
1,743 |
1,726 |
1,704 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
105.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
18.00 |
36.00 |
54.00 |
72.00 |
90.00 |
108.00 |
