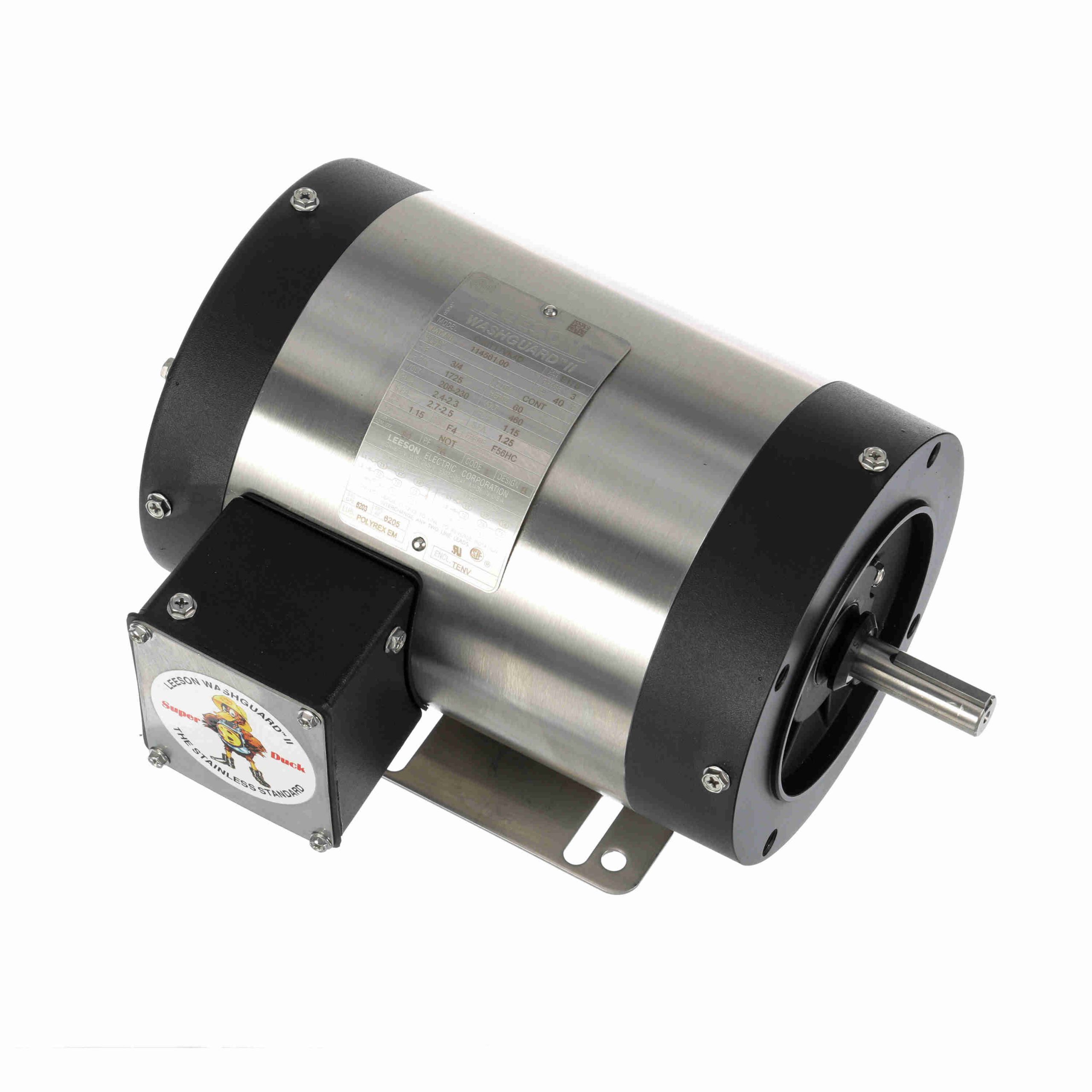

114561.00 – Leeson 0.75 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 56HC Frame, TENV – 114561.00
114561.00 Leeson Paint Free NEMA Washdown Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720013991 |
Weight: |
38 LB |
| Packaged Length: |
19.5 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
0.75 Hp |
Output KW: |
0.56 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230/460 V |
| Current: |
2.4-2.3/1.2 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
80 % |
Power Factor: |
76 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
L |
| Frame: |
56HC |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
11.56 in |
| Frame Length: |
6.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
1.12 |
0.0 |
36.00 |
0.0 |
1,752 |
0.69 |
0.0 |
0.75 |
| Break-Down |
5.50 |
0.0 |
148.80 |
0.0 |
1,314 |
3.90 |
0.0 |
0.75 |
| Pull-Up |
9.10 |
0.0 |
104.30 |
0.0 |
129 |
4.60 |
0.0 |
0.75 |
| Locked-Rotor |
9.14 |
0.0 |
110.60 |
0.0 |
0 |
4.52 |
0.0 |
0.75 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
175 % |
200 % |
| Current (Amps) |
0.62 |
0.68 |
0.79 |
0.94 |
1.12 |
1.32 |
1.54 |
1.78 |
2.05 |
| Rated Output (KW) |
0.08 |
0.23 |
0.38 |
0.53 |
0.69 |
0.86 |
1.04 |
1.22 |
1.43 |
| Efficiency (%) |
0.0 |
62.0 |
74.5 |
79.1 |
81.2 |
81.5 |
81.0 |
80.1 |
78.4 |
| Power Factor (%) |
17.0 |
42.1 |
59.4 |
70.5 |
77.3 |
81.8 |
84.6 |
86.2 |
87.2 |
| Speed (RPM) |
1,794 |
1,788 |
1,777 |
1,765 |
1,753 |
1,740 |
1,725 |
1,709 |
1,689 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
82.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
8.90 |
17.80 |
26.80 |
36.00 |
45.30 |
54.80 |
64.60 |
74.70 |
