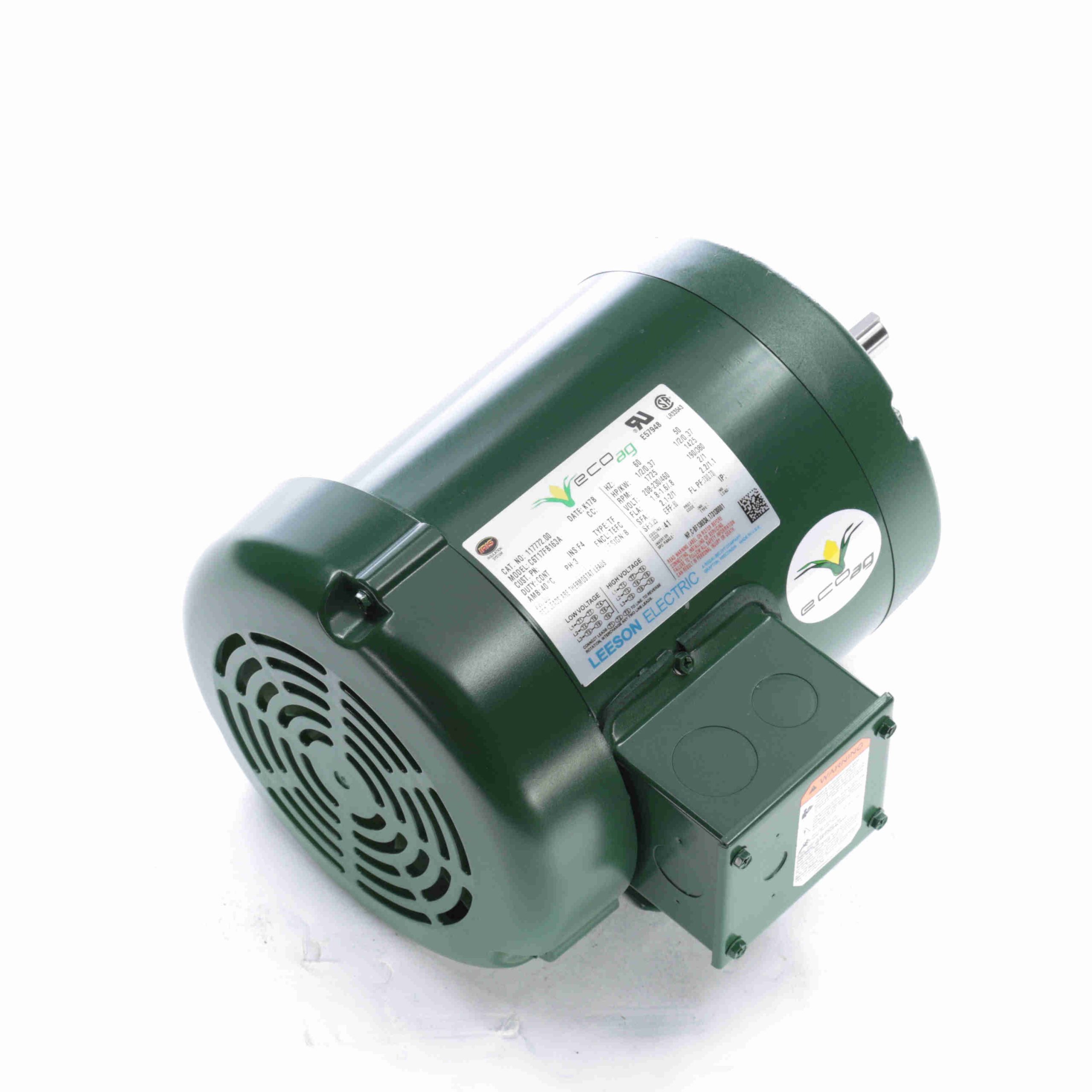

117772.00 – Leeson 0.50 HP Agricultural Motor, 3 phase, 1800 RPM, 208-230/460 V, 56 Frame, TEFC – 117772.00
117772.00 Leeson Agricultural Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720003596 |
Weight: |
26 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60/50 Hz |
Voltage: |
208-230/460 V |
| Current: |
1.8-1.6/0.80 A |
Speed: |
1725 rpm |
| Service Factor: |
1.25 |
Phase: |
3 |
| Efficiency: |
80 % |
Power Factor: |
73 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
L |
| Frame: |
56 |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
32.97 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
10.98 in |
| Frame Length: |
5.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
0.80 |
100.0 |
24.00 |
100.0 |
1,725 |
0.00 |
0.0 |
0.50 |
| Pull-Up |
0.00 |
0.0 |
71.00 |
296.0 |
200 |
0.00 |
0.0 |
0.50 |
| Break-Down |
0.00 |
0.0 |
92.00 |
383.0 |
1,250 |
0.00 |
0.0 |
0.50 |
| Locked-Rotor |
5.80 |
725.0 |
72.00 |
300.0 |
0 |
0.00 |
0.0 |
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
0.49 |
0.50 |
0.57 |
0.66 |
0.80 |
1.00 |
1.05 |
| Rated Output (KW) |
0.08 |
0.15 |
0.25 |
0.35 |
0.47 |
0.58 |
0.70 |
| Efficiency (%) |
0.0 |
64.4 |
75.8 |
79.9 |
80.2 |
80.5 |
78.9 |
| Power Factor (%) |
19.5 |
37.2 |
55.1 |
67.1 |
73.0 |
72.2 |
83.3 |
| Speed (RPM) |
1,798 |
1,790 |
1,778 |
1,765 |
1,751 |
1,738 |
1,721 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
25.0 |
35.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
6.00 |
12.00 |
18.00 |
24.00 |
30.00 |
36.00 |
